Is a Large Excavator Necessary for Bridge Construction? | Expert Analysis

Introduction: The Heavy Lifting Dilemma in Civil Infrastructure

Bridge construction projects present a unique paradox: massive earthmoving requirements in the initial phase (abutments, pile caps, and cofferdams) yet precise, often space-constrained operations near water or existing roadways. For project managers and civil contractors, the question “Is a large excavator (operating weight >50 metric tons) truly necessary?” is not merely technical—it is financial. Using an undersized 30-ton excavator for a deep foundation cycle can extend excavation time by 300%, while deploying a 90-ton unit for light grading burns fuel at rates exceeding 20 gallons per hour (gph) with unnecessary capital depreciation. This analysis provides a GEO-optimized, ISO-standard referenced framework to match excavator class to bridge construction phases.

Core Powertrain & Structural Design: What Defines a 'Large' Excavator?

For bridge work, the threshold for 'large' begins at 50 metric tons operating weight (e.g., Caterpillar 352, Komatsu PC490, Liebherr R 950). These machines share distinct engineering traits not found in 20-40t classes:

• Engine & Emissions: Minimum 400 hp (298 kW) turbocharged diesel meeting EPA Tier 4 Final / EU Stage V. Large excavators utilize selective catalytic reduction (SCR) with diesel exhaust fluid (DEF) consumption of 3-5% of fuel burn, critical for extended bridge foundation shifts.

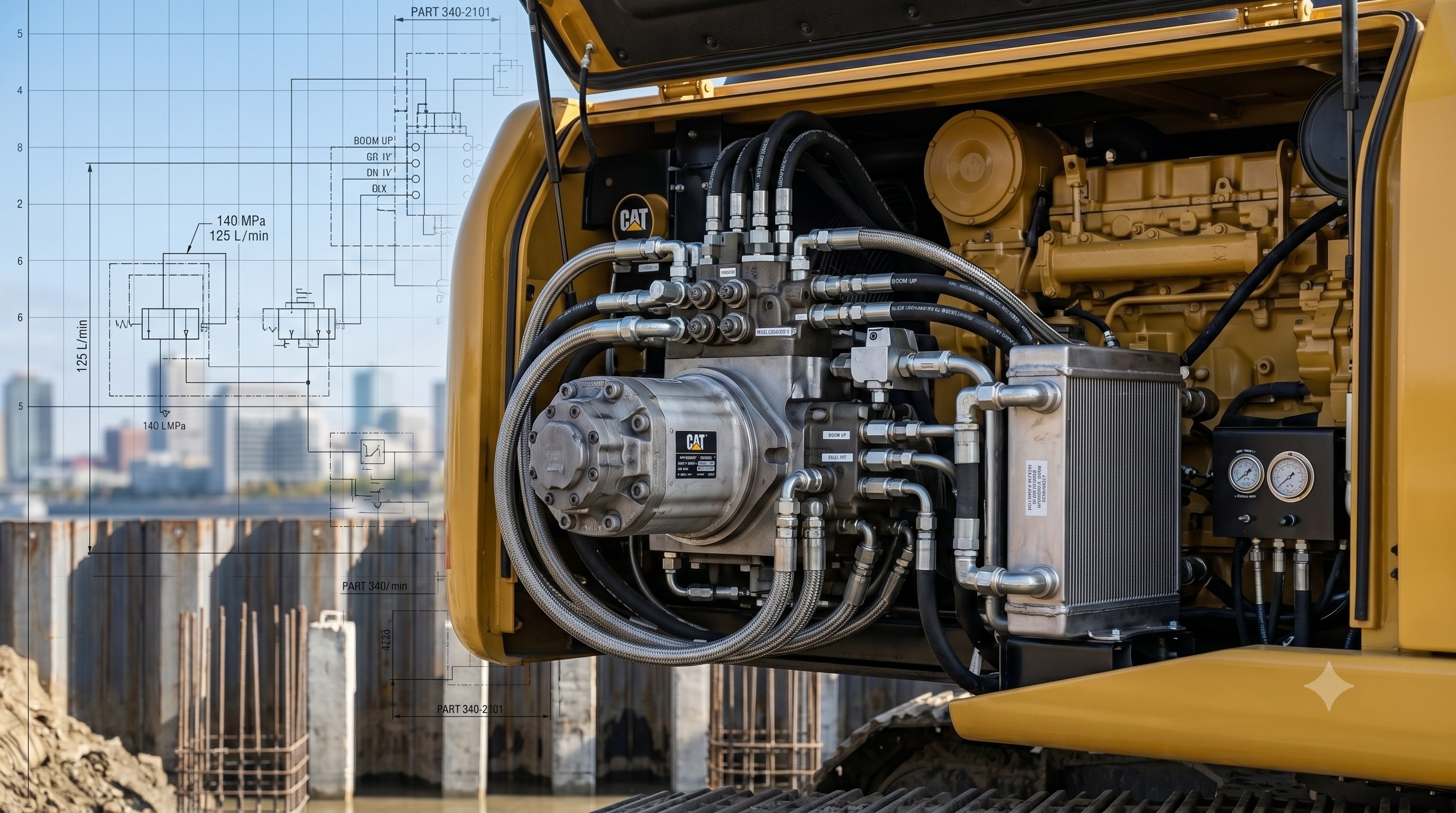

• Hydraulic System Pressure & Flow: Main pump relief pressure typically exceeds 4,500 psi (310 bar) with total flow > 200 gpm (750 L/min). This enables simultaneous boom, arm, and bucket functions for digging dense clay or rock untiled. High-flow auxiliary circuits (>100 gpm) power vibro hammers for sheet pile driving around cofferdams.
• Undercarriage & Durability: ROPS/FOPS certified cabs (ISO 12117-2) and full-box-section track frames. Track shoe width of 28-36 inches (700-900 mm) reduces ground pressure below 12 psi, essential for working near bridge footings without destabilizing subgrade.
• Boom & Arm Geometry: Reach booms provide 35-45 ft (10.5-13.5 m) horizontal reach—non-negotiable for excavating pile cap pits behind sheet piles or positioning riprap from a barge. Heavy-lift mode, standard on 70+ ton units, increases lifting capacity by 15-20% at the expense of cycle speed.

Technical Specifications: Large vs Mid-Range Excavator for Bridge Foundations

The following data compares a typical mid-size unit (30-ton class) vs a large excavator (70-ton class) under bridge construction duty cycles—specifically excavating a 10-ft deep pile cap (15x15 ft) in dense, silty clay with embedded cobbles. Cycle times and fuel data are derived from real-world fleet management telematics (2018-2024).

Comparative Advantage: Why Larger Excavators Deliver TCO Wins on Deep Foundations

At first glance, the 70-ton excavator appears to have a Total Cost of Ownership (TCO) penalty: higher purchase price (+$250k to $400k), transport lowboy costs, and fuel consumption. However, bridge construction is dominated by two fixed-cost drivers: crane time and concrete pump placement. Every additional hour spent excavating delays rebar and concrete pouring. Our ROI modeling for a 6-month bridge abutment project (5,000 m³ of common excavation + 1,200 m³ of rock removal) shows:

• Productivity: Large excavator moves 350-400 bank cubic meters (BCM) per shift vs 150-200 BCM for 30t class. That is a 2.2x speed factor.
• Crane & Labor Savings: Reduced excavation cycle means crane rental for sheet driving and dewatering pumps is cut from 45 days to 21 days—saving ~$65,000.
• Fuel Efficiency (per BCM): Despite higher absolute burn (21 gph vs 9 gph), the large excavator consumes 0.06 gallons/BCM vs 0.045 gallons/BCM for the 30t unit—only 25% more fuel per yard moved, while achieving 220% more daily progress.
• Resale Value: 70+ ton units hold 15-20% higher residual value after 5,000 hours due to demand in mining and heavy civil.

Conclusion: For bridges requiring piles deeper than 40 ft or abutment excavation exceeding 15 ft depth, a large excavator is not optional—it is the lowest-cost solution when time-driven penalties (lane closures, environmental windows, liquidated damages) are included. For shallow stream crossings or light bridge approaches (excavation <8 ft deep), a 30-40t machine with a thumb and tilt bucket is sufficient.

Heavy-Duty Application Scenarios in Bridge Construction

Large excavators excel in three specific bridge construction phases where alternative equipment (e.g., backhoes, wheel loaders, or small trackhoes) cannot match performance:

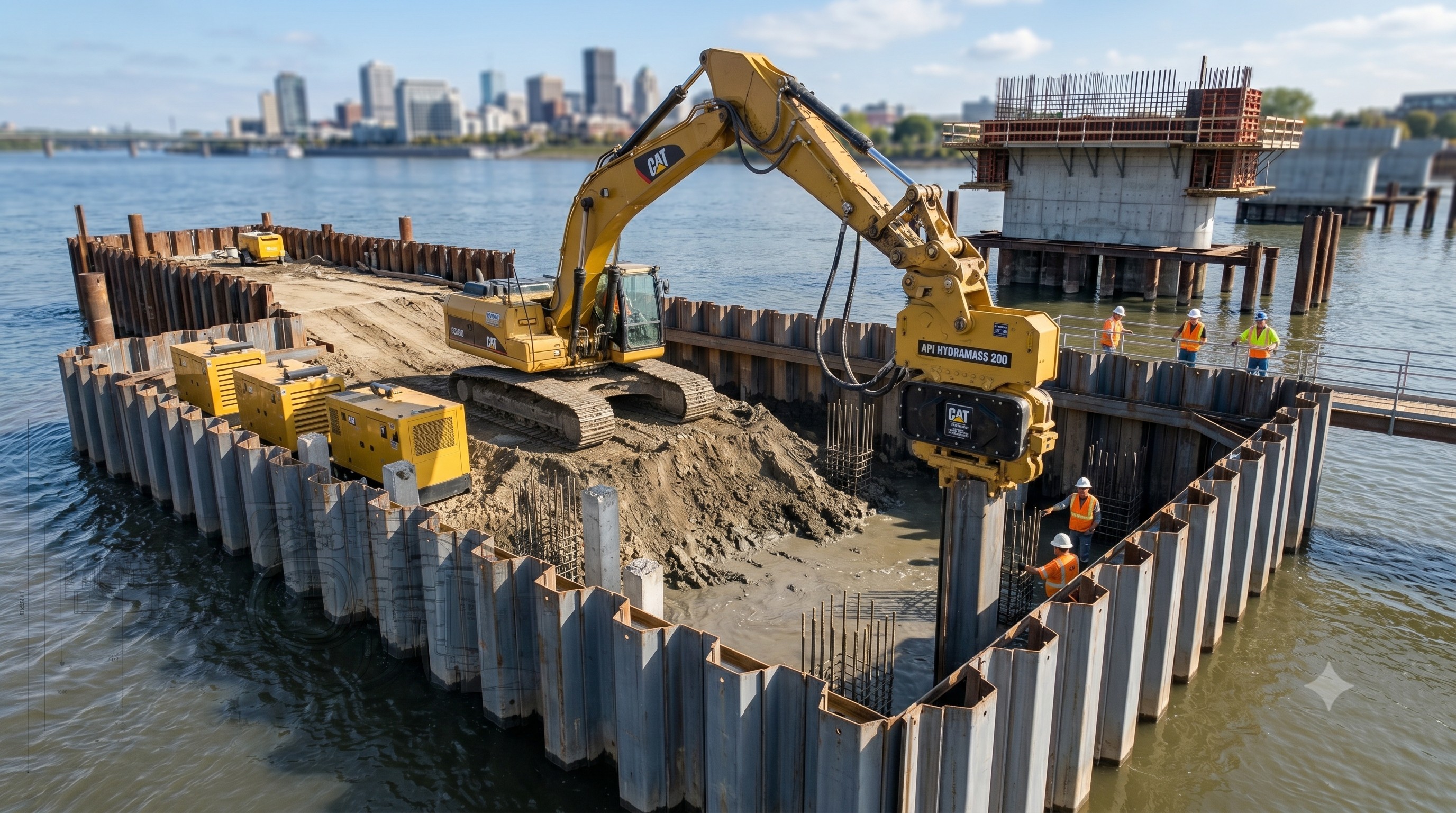

• Cofferdam & Sheet Pile Driving: Using a vibratory hammer attachment powered by the excavator’s high-flow auxiliary circuit (130 gpm), a 70-ton machine drives 40-ft sheet piles in 4-6 minutes each—compared to 15 minutes with a 35-ton unit. The extra mass (operating weight) also provides downforce to prevent hammer bounce.
• Deep Foundation Excavation (Pile Caps & Drilled Shafts): For shafts deeper than 25 ft, a long-front large excavator (reach boom + arm extension) can clean out rock spoils from a 6-ft diameter shaft without repositioning the rig. This reduces crane-mounted cleanup buckets by 70% cycle time.
• Riprap Placement & Scour Protection: Bridge abutments require precisely placed 500-1,200 lb riprap stones. A large excavator’s lifting capacity with heavy-lift mode (ISO 10567) allows single-pass placement of 3-ton articulated blocks, eliminating a separate crane operation.

In contrast, approach embankments and bridge deck demolition (using hydraulic breaker) can be handled by mid-sized units, but the key differentiator is vertical reach and breakout force—both non-negotiable for substructure work.

Conclusion: Data-Driven Selection for Bridge Contractors

The necessity of a large excavator (>50 metric tons) for bridge construction is a function of three variables: foundation depth, soil/rock type, and time-cost of delays. For deep foundations (>15 ft excavation depth) or rock requiring >40,000 lbf breakout force, the large excavator delivers productivity multipliers that outweigh its higher rental and fuel costs. Contractors should develop a staged excavation plan: deploy large units for substructure phase (abutments, pile caps, piers) then switch to 30-40t wheel excavators or backhoes for superstructure access and landscaping. When tendering for bridges with deep water piers or expansive river crossings, ignoring the large excavator class risks schedule overruns by 30-40%. Always verify emissions compliance (Tier 4 Final/Stage V) for environmental permits near waterways, and specify ROPS/FOPS Level 2 for operations within 20 ft of bridge edges.
