10000L 304 Stainless Steel Storage Tank Vertical Top & Bottom Cone Mixing Tank For Food Beverage

Name: 10000L 304 Stainless Steel Storage Tank Vertical Top & Bottom Cone Mixing Tank For Food Beverage
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

Our 10000L (10 cubic meter) vertical 304 stainless steel storage tank, Model No.2#, adopts full conical top and conical bottom design, tank diameter 2.2m, total height 3.1m. Made of food-grade 304 stainless steel by integral welding. Equipped with climbing ladder, mixing motor mounting port and reinforced conical support legs. Widely used for storage, mixing, fermentation and batching of wine, beverage, daily chemical and chemical raw materials. Features good sealing performance, corrosion resistance and easy cleaning. Customizable insulation, heating jacket and explosion-proof motor are available. Ready stock for fast delivery, professional equipment for industrial liquid storage & mixing.

$1258.00

Send Message Contact Supplier

Liangshan JinhuiDa Machinery Equipment Co., Ltd.

View Supplier

Year Established Established in 2021

Employees Less than 50 People

Factory Area 10,000-50,000 m²

Annual Revenue US$5 Million - US$10 Million

Main Markets Middle East & North Africa / Africa

Details

Specifications

Trade Information

1. Overall Structure

Model 2# 10000L stainless steel storage tank features double conical structure (conical top + conical bottom). The sealed conical top is reserved with flange for mixing motor installation; conical bottom enables full liquid discharge without residue. Cylinder diameter 2.2m, total tank height 3.1m, vertical floor-standing type with 3 thickened conical support legs for stable load-bearing, easy transportation and installation. Integrated safety climbing ladder welded on tank side for feeding, top inspection and equipment maintenance.

The whole tank is fully argon-arc welded with food-grade 304 stainless steel plate, internal & external mirror polishing, smooth welds without sanitary dead angle, fully comply with food and pharmaceutical hygiene standards.

2. Applicable Industries & Scenarios

Food & Beverage: Storage & mixing for fruit wine, liquor, fruit juice, milk, syrup and fermentation liquid;
Daily Chemical: Temporary storage & blending of laundry detergent, dishwashing liquid, cosmetic raw materials and essence;
Light Chemical Industry: Static storage of water-based coating, cleaning agent, additives and biological liquid raw materials;
Brewing & Fermentation: Integrated use as fermentation tank, blending tank, sedimentation tank and mixing tank.

3. Core Advantages

① Made of 304 stainless steel, acid & alkali resistance, waterproof & rust-proof, long service life;

② Integral double cone design, no liquid residue at bottom, lower raw material waste;

③ Standard top mixing port, compatible with mixing motor & reducer for automatic blending;

④ Mirror polished tank body, easy to clean by water flushing, anti-bacterial, meet food hygiene standard;

⑤ Thickened conical support legs, stable placement without extra concrete base;

⑥ Standard stock price: 8500 RMB. Customizable insulation jacket, heating/cooling jacket, level gauge, manhole, valves and pipelines as demand.

4. Delivery & After-sales Service

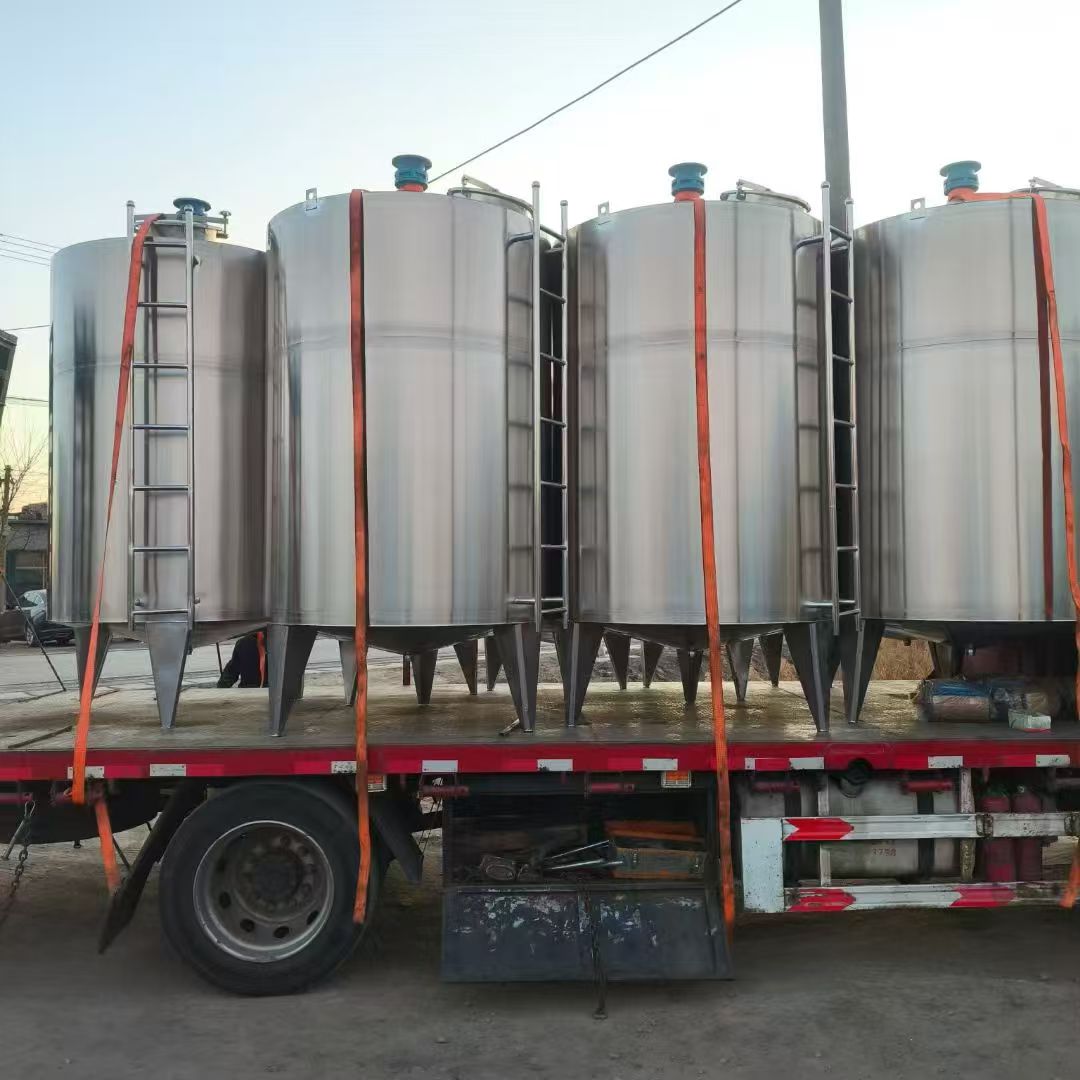

Sufficient ready stock of standard 10m³ double cone tank, full truck logistics delivery (real truck loading photo attached). Hydraulic pressure leak test before factory delivery with dimension parameter sheet attached. On-site installation guidance available, 1-year equipment warranty, free replacement of non-artificial damaged spare parts.

Model No.

Nominal Volume

10000L / 10m³ / 10 Ton

Tank Material

Food Grade 304 Stainless Steel

Tank Structure

Vertical, Double Conical (Conical Top + Conical Bottom)

Cylinder Diameter

2.2 Meters

Total Overall Height

3.1 Meters

Standard Accessories

Safety Climbing Ladder, Conical Support Legs, Top Mixing Flange

Polishing Process

Internal & External Mirror Polishing

Applicable Medium

Wine, Beverage, Daily Chemical, Water-based Chemical Liquid

Standard Unit Price

8500 RMB / Set

Optional Custom Parts

Insulation Jacket, Heating/Cooling Jacket, Mixing Motor, Manhole, Liquid Level Gauge, Discharge Valve

MOQ

1 Pieces
