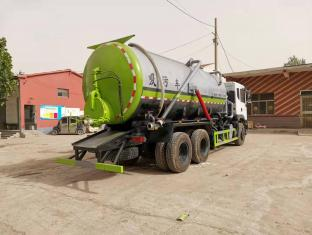

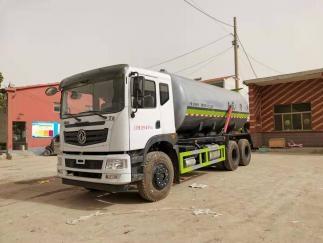

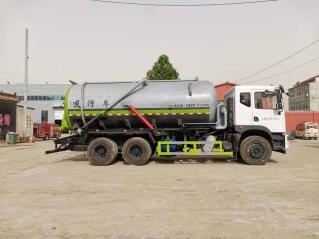

17.9 Cubic Meter Vacuum Sewage Suction Truck 6x4 Dongfeng Huashen, Septic Tank Manure Transport Sanitation Vehicle

Name: 17.9 Cubic Meter Vacuum Sewage Suction Truck 6x4 Dongfeng Huashen, Septic Tank Manure Transport Sanitation Vehicle
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

Zhongyunwei ZYW5252GXWEQ6 Dongfeng Huashen 6x4 National VI vacuum sewage suction truck with 25-ton total mass and 17.9m³ carbon steel sewage tank. It supports vacuum self-priming & self-discharging, hydraulic tank lifting and rear door dumping. Widely used for sewer, septic tank and farm manure transportation. Factory guide price 230,000 RMB, National VI emission for nationwide registration, 1 year / 10,000km vehicle warranty.

$33925.00

Send Message Contact Supplier

Shandong Zhongquan Sanitation Equipment Co., Ltd.

Main Products: Fecal suction trucks, sewage suction trucks, fire trucks, sweeping trucks, high-pressure cleaning trucks, garbage trucks

View Supplier

Year Established Established in 2018

Main Products Fecal suction trucks, sewage suction trucks, fire trucks, sweeping trucks, high-pressure cleaning trucks, garbage trucks

Employees 101-500 People

Factory Area 10,000-50,000 m²

Annual Revenue US$5 Million - US$10 Million

Main Markets Southeast Asia / Middle East & North Africa / Africa

Details

Specifications

Trade Information

Chassis Basic Information
Adopt Dongfeng EQ1250GL6DJ Huashen 6×4 double rear axle Class II cargo chassis with wheelbase 4350+1350mm, National VI diesel emission standard. Multiple high-power engines of Cummins and Yuchai are optional, equipped with heavy-duty 11.00R20 tires with strong load capacity, suitable for complex road conditions of urban construction sites and rural areas. Overall dimension 9200×2520×3530mm, total mass 25000kg, rated load over 13 tons, meeting large-capacity sewage transportation demands.
Core Tank Superstructure Configuration
The tank is integrally formed with 5.75mm thick manganese steel, cylinder size 5500×2000mm, built-in anti-wave baffle, front & rear turtle-back pressure-resistant heads to resist deformation under pressure. Equipped with high-power vacuum sewage pump and standard water-gas separator to realize both suction and discharge functions, water circulation vacuum pump is optional. Stainless steel filter screen installed on suction pipeline to prevent stones and sundries from damaging pump. Optional 100mm shock-resistant vacuum pressure gauge to monitor tank negative pressure in real time. Standard 100mm suction port on tank side, matched with 10m extended suction hose.
Hydraulic Self-dumping Working System
Full vehicle equipped with hydraulic lifting mechanism for integral tank dumping. The rear door opens hydraulically with mechanical locking device, no residue left during discharging, thoroughly cleaning sludge and settled manure. Side and rear guards are welded with Q235 steel for stable driving safety.
Application Scenarios
Used for municipal sewer dredging & desilting, residential septic tank pumping, urban & rural public toilet manure transfer, farm waste disposal, construction mud, industrial liquid sewage and greasy sludge suction & transportation. It supports self-priming, self-discharging and self-dumping, greatly improving working efficiency of sanitation, environmental protection and breeding industries.
Standard On-board Accessories
Truck operation manual, vehicle maintenance handbook, complete set of maintenance tools, 10m sewage suction hose.
After-sales Service Commitment
The chassis enjoys nationwide joint warranty at Dongfeng service stations. The tank, vacuum pump and hydraulic system of superstructure are warranted for 1 year or 10,000km, excluding vulnerable parts and man-made damage. On-site maintenance within 24 hours in the province, after-sales staff dispatched within 24 hours for other regions. Only cost price for spare parts after warranty expiration, lifetime low-cost maintenance. Professional engineers provide free operation training to master equipment operation and basic troubleshooting.

Vehicle Model

Vacuum Sewage Truck Model

Brand

Vehicle Brand

Chassis Model

Dongfeng Huashen 6×4 Chassis Model

Emission Standard

National VI Emission Standard

Fuel Type

Diesel Fuel

Wheelbase

Design Wheelbase

Overall Dimension

Whole Vehicle Outer Size

Total Mass

Gross Vehicle Weight

Rated Load Mass

Max Loading Capacity

Curb Mass

Empty Vehicle Weight

Axle & Tire Quantity

3 Axles, 10 Tires

Tire Spec

Heavy-duty Tire Model

Tank Effective Volume

Sewage Tank Capacity

Discharging Mode

Hydraulic Tank Lift & Rear Door Opening

Tank Dimension

Tank Cylinder Length & Diameter

MOQ

1 Pieces

Description

Chassis Basic Information
Adopt Dongfeng EQ1250GL6DJ Huashen 6×4 double rear axle Class II cargo chassis with wheelbase 4350+1350mm, National VI diesel emission standard. Multiple high-power engines of Cummins and Yuchai are optional, equipped with heavy-duty 11.00R20 tires with strong load capacity, suitable for complex road conditions of urban construction sites and rural areas. Overall dimension 9200×2520×3530mm, total mass 25000kg, rated load over 13 tons, meeting large-capacity sewage transportation demands.
Core Tank Superstructure Configuration
The tank is integrally formed with 5.75mm thick manganese steel, cylinder size 5500×2000mm, built-in anti-wave baffle, front & rear turtle-back pressure-resistant heads to resist deformation under pressure. Equipped with high-power vacuum sewage pump and standard water-gas separator to realize both suction and discharge functions, water circulation vacuum pump is optional. Stainless steel filter screen installed on suction pipeline to prevent stones and sundries from damaging pump. Optional 100mm shock-resistant vacuum pressure gauge to monitor tank negative pressure in real time. Standard 100mm suction port on tank side, matched with 10m extended suction hose.
Hydraulic Self-dumping Working System
Full vehicle equipped with hydraulic lifting mechanism for integral tank dumping. The rear door opens hydraulically with mechanical locking device, no residue left during discharging, thoroughly cleaning sludge and settled manure. Side and rear guards are welded with Q235 steel for stable driving safety.
Application Scenarios
Used for municipal sewer dredging & desilting, residential septic tank pumping, urban & rural public toilet manure transfer, farm waste disposal, construction mud, industrial liquid sewage and greasy sludge suction & transportation. It supports self-priming, self-discharging and self-dumping, greatly improving working efficiency of sanitation, environmental protection and breeding industries.
Standard On-board Accessories
Truck operation manual, vehicle maintenance handbook, complete set of maintenance tools, 10m sewage suction hose.
After-sales Service Commitment
The chassis enjoys nationwide joint warranty at Dongfeng service stations. The tank, vacuum pump and hydraulic system of superstructure are warranted for 1 year or 10,000km, excluding vulnerable parts and man-made damage. On-site maintenance within 24 hours in the province, after-sales staff dispatched within 24 hours for other regions. Only cost price for spare parts after warranty expiration, lifetime low-cost maintenance. Professional engineers provide free operation training to master equipment operation and basic troubleshooting.
