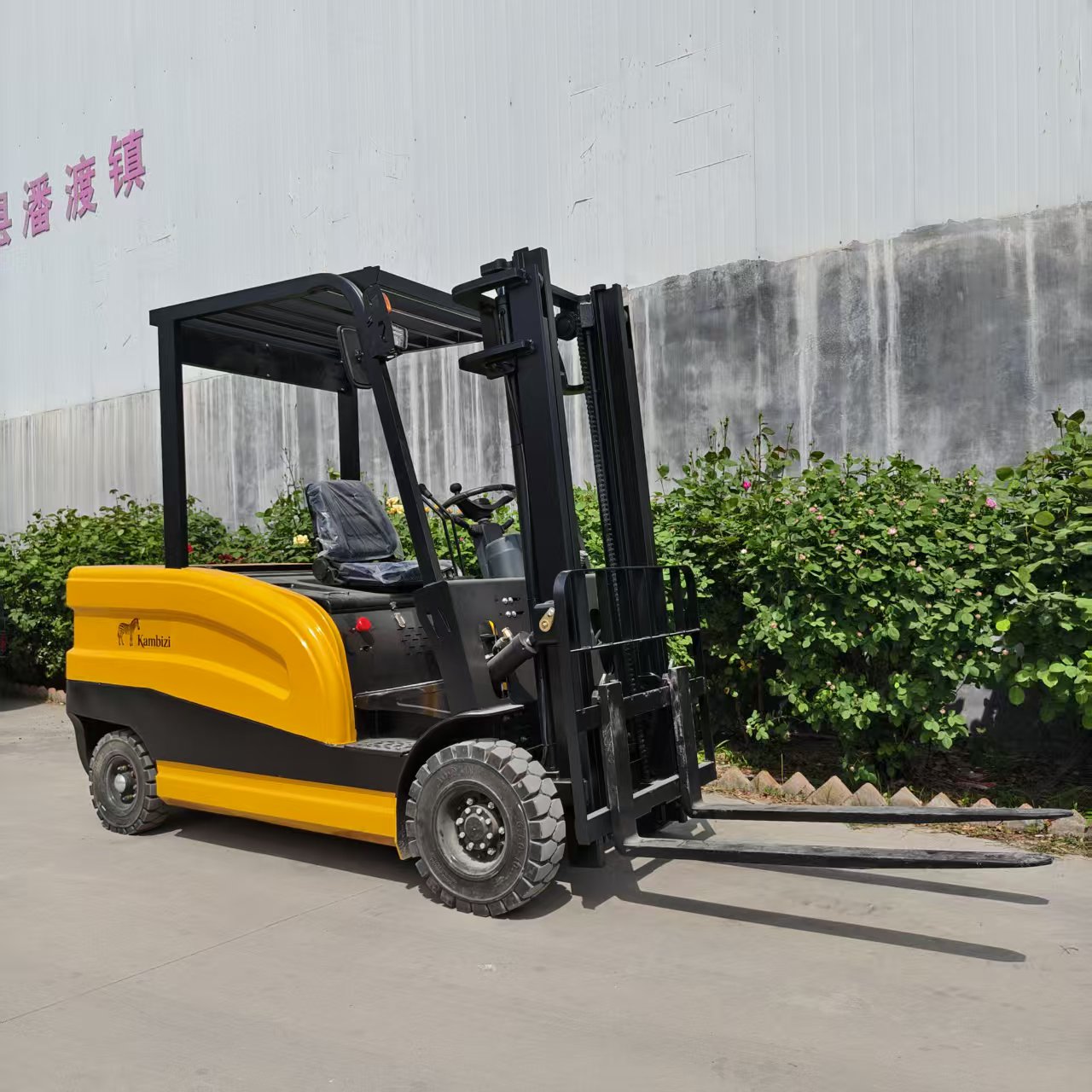

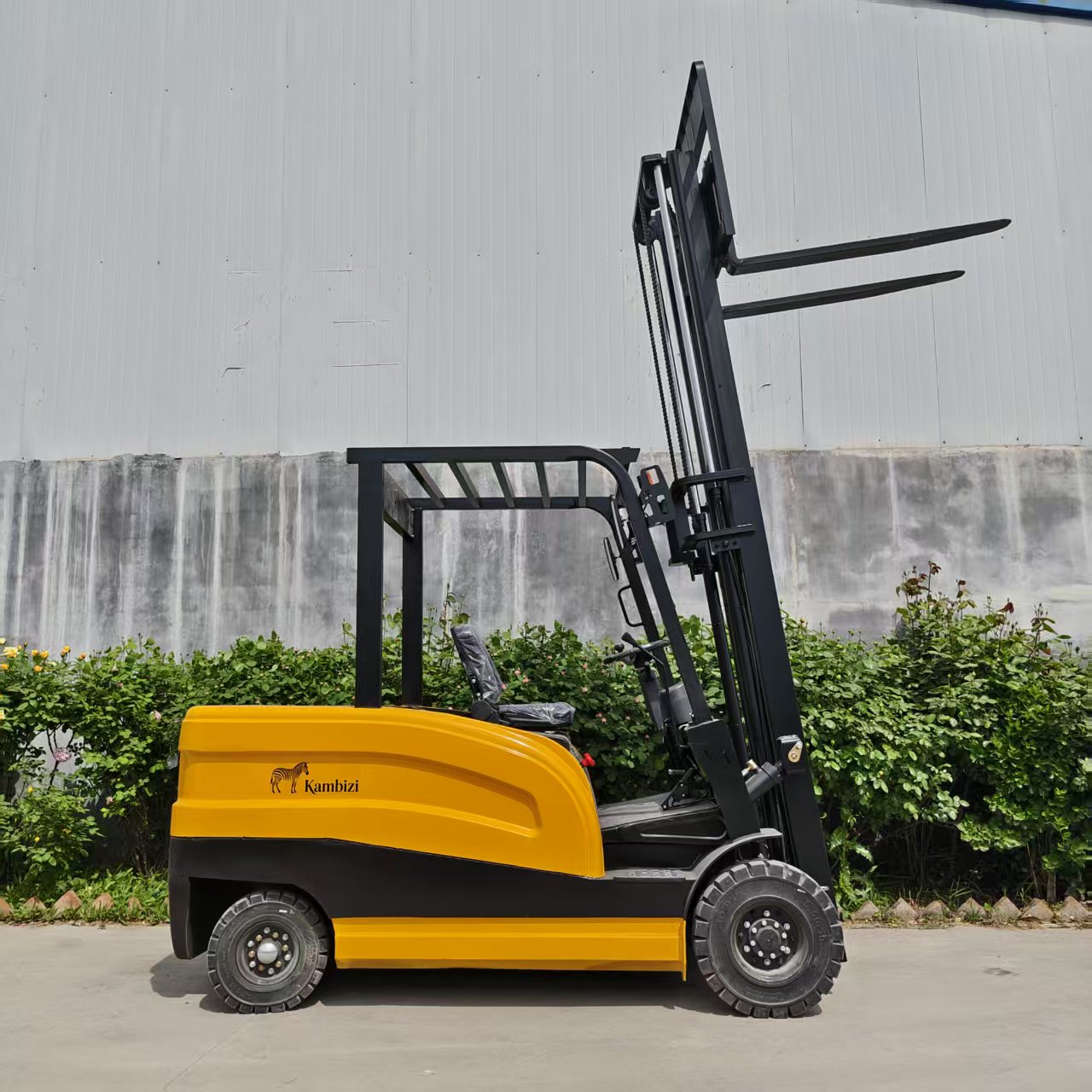

The CPD3T sit-down electric counterbalance forklift has a rated capacity of 3000kg and maximum lifting height of 3000mm, suitable for warehouse rack loading and unloading. Powered by 60V/70A Chaowei dry battery, it can work continuously for 3-5 hours after 6 hours of charging. Both drive and lift motors are 5KW AC motors with strong power and high efficiency. Equipped with solid rubber tires for wear resistance and durability, adapting to various ground conditions, with only 2300mm turning radius for flexible operation in narrow aisles. The vehicle has stable structure with hydraulic brake for safety and reliability, widely used in warehouses, factories, logistics centers and other scenarios, a low-noise, zero-emission heavy-duty industrial handling equipment. Sufficient stock supports bulk orders and customization services.
Drive Type
Electric (Battery)
Power System
60V/70A Chaowei Dry Battery
Tire Type
Solid Rubber Tires
Mast Retracted Height
2180mm
Overhead Guard Height
2080mm
Overall Length (Without Fork)
2350mm
Full Load Lifting Speed
13m/s
Full Load Lowering Speed
6m/s
Continuous Working Time
3-5 Hours
Vehicle Weight (With Battery)
About 3700kg
