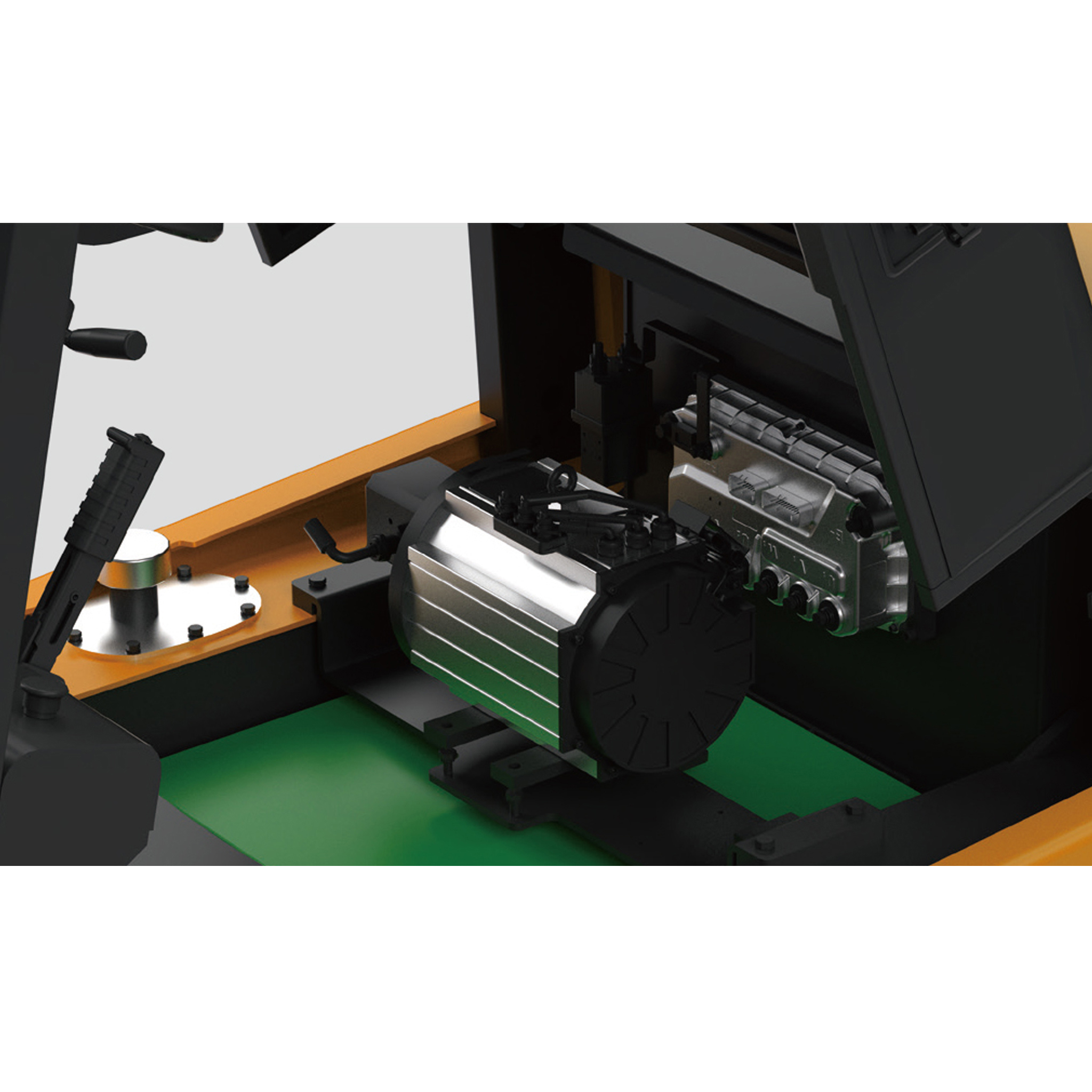

The BIGJOE EC35 3.5-ton four-wheel lithium-ion forklift features a ride-on design with rated load 3500kg, lifting height 3m and 500mm load center distance, suitable for standard pallets and heavy goods. Equipped with 10kW AC drive motor and 16kW lift motor, it delivers strong power with 11km/h full-load speed and 12km/h no-load speed, meeting high-turnover logistics demands efficiently. The 80V/280Ah large-capacity lithium-ion system offers long endurance, convenient charging and zero emissions for eco-friendly work environments. The four-point pneumatic tire chassis ensures excellent stability with only 2437mm turning radius for flexible operation in narrow aisles, and 15% max gradeability for factory ramps. The mast tilts 6° forward and 10° backward, with minimum lowered height 2070mm and max lifted height 4110mm to fit various warehouse heights. The cab is equipped with overhead guard, seat height 1130mm for clear visibility and easy hydraulic steering. With noise level <74dB(A), it is environment-friendly and widely used for goods handling, stacking and loading/unloading in heavy-duty warehouses, logistics parks and factory workshops. Price: $14500 USD, ready stock for global export.
Power Type
Electric (Lithium-ion)
Operation Mode
Ride-on Type
Load Center Distance
500 mm
Mast Height at Max Lift
4110 mm
Min. Height of Lowered Mast
2070 mm
Mast Forward/Backward Tilt Angle
6°/10°
Front Tyre Size
28X9-15-14PR
Rear Tyre Size
6.50-10-10PR
Drive Type
Four-wheel Drive
Travel Speed (Full/No Load)
11 / 12 km/h
Max Gradeability (Full/No Load)
15% / 15%
Battery Voltage/Capacity
80V/280Ah
Steering Type
Hydraulic Steering
