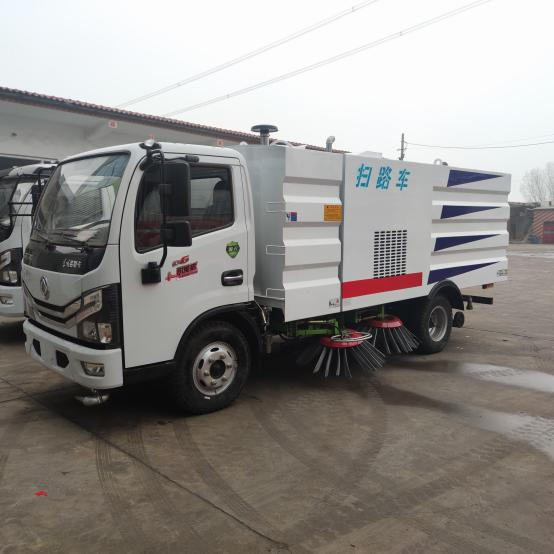

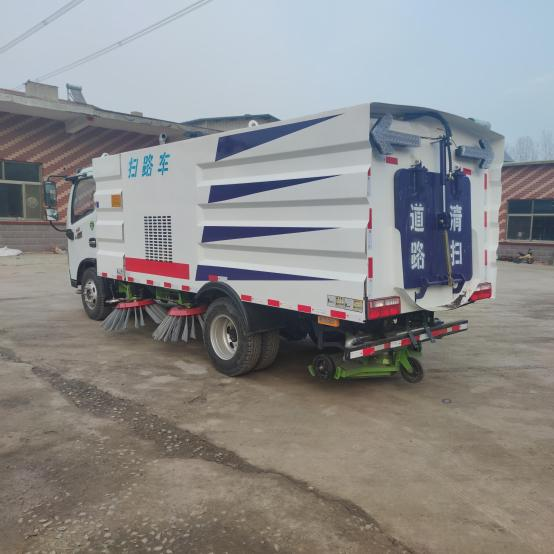

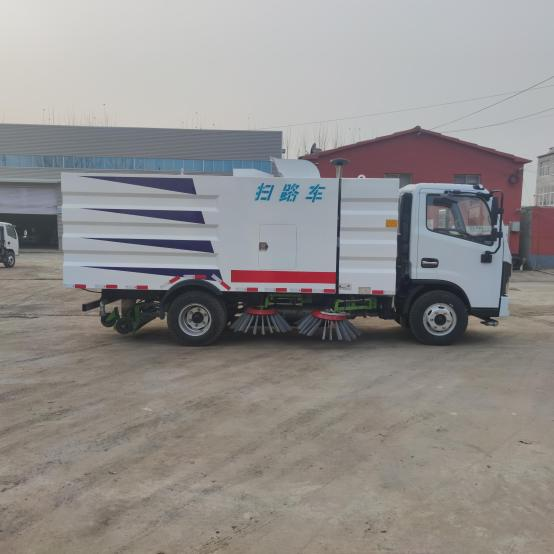

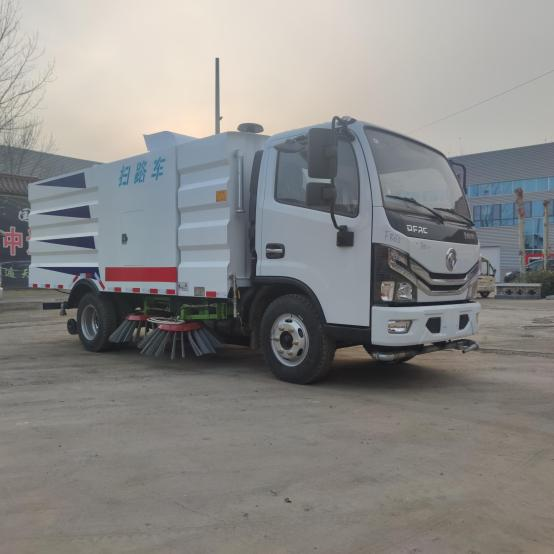

Dongfeng D6 National VI Road Sweeper, Zhongyunwei ZYW5071TSL6EQ Wet Street Cleaning Truck

Name: Dongfeng D6 National VI Road Sweeper, Zhongyunwei ZYW5071TSL6EQ Wet Street Cleaning Truck
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

Zhongyunwei ZYW5071TSL6EQ Dongfeng D6 National VI wet road sweeper refitted on Dongfeng Class II chassis with 3308mm wheelbase. It has 2.8m cleaning width integrating sweeping, vacuuming and water spray dust suppression with 30,000 ㎡/h working efficiency. Adopting mid four brushes & rear suction nozzle dust control design, it applies to municipal roads, factories and parks. Factory price 150,000 RMB, customizable, 12-month warranty for upper body.

$22125.00

Send Message Contact Supplier

Shandong Zhongquan Sanitation Equipment Co., Ltd.

Main Products: Fecal suction trucks, sewage suction trucks, fire trucks, sweeping trucks, high-pressure cleaning trucks, garbage trucks

View Supplier

Year Established Established in 2018

Main Products Fecal suction trucks, sewage suction trucks, fire trucks, sweeping trucks, high-pressure cleaning trucks, garbage trucks

Employees 101-500 People

Factory Area 10,000-50,000 m²

Annual Revenue US$5 Million - US$10 Million

Main Markets Southeast Asia / Middle East & North Africa / Africa

Details

Specifications

Trade Information

Overall Vehicle Structure
The vehicle is refitted on Dongfeng Dolica Fulika National VI diesel Class II chassis with 3308mm wheelbase. It is equipped with independent auxiliary engine, high-power fan, clean water tank, large-capacity garbage bin, left & right vertical sweeping brushes, rear suction nozzle, brush spray dust suppression system, complete hydraulic system, electric control assembly and reinforced sub-frame. It can finish sweeping, vacuuming and watering simultaneously, replacing multiple sanitation machines and cutting labor costs greatly.
Cleaning Working Function
It is an integrated wet sweeping & vacuum vehicle with classic mid-mounted four vertical brushes and rear suction nozzle structure. During operation, brushes gather fallen leaves, gravel, silt and dust inward, and the bottom negative-pressure suction nozzle collects waste synchronously. The rear suction nozzle has 3 groups of height-adjustable wheels to adapt to uneven roads and keep stable suction gap for better cleaning effect. Water pipes above the nozzle provide secondary dust suppression, and optional front & rear atomizing devices eliminate secondary dust pollution and wash road curbs.
Core Component Configuration
Auxiliary engine and fan are key cleaning parts. Equipped with 57kw Jiangling auxiliary engine and automatic clutch to reduce impact during fan start and stop, featuring low noise, low fuel consumption and high wear resistance. Original Sanyo cycloid motors drive sweeping brushes with stable performance, low failure rate and long service life. The integrated solenoid valve group of hydraulic system controls lifting of brushes and suction nozzles, garbage bin tipping and rear door opening/closing, with dust-proof cover. Imported 12V/24V electromagnetic water pump supplies continuous spray to restrain dust. Integrated Siemens control switches from Germany are installed in cab for centralized electro-hydraulic operation, single person can complete all cleaning work. Multiple National VI diesel main engines are optional for legal registration nationwide.
Application Scenarios
It is widely applied to municipal roads, squares, residential communities, industrial parks, logistics zones, airport runways, campuses and scenic parks. It can clean road dust, gravel, fallen leaves, paper scraps, silt and light oil stains. The wet sweeping mode meets national environmental sanitation standards.
Standard On-board Accessories & Optional Paid Configurations
Standard accessories: fan belt, operating hand rocker, rear door sealing strip, suction nozzle sealing ring, fire hose.
Optional customization: curved/square garbage bin, middle/rear suction nozzle, single/double row sweeping brushes, various garbage bin rear doors, front & rear full vehicle spray system.
After-sales Service Commitment
Chassis and auxiliary engine are maintained by local brand service stations and not covered by upper body warranty. The refitted upper assembly enjoys a 12-month warranty, excluding vulnerable parts and man-made damage. Free repair for non-artificial quality faults within warranty period. Lifetime maintenance at cost price after warranty expiration. Technical support within 24 hours after receiving repair report, spare parts delivered within 72 hours; on-site maintenance staff will arrive within 72 hours if field service is needed.

Vehicle Model

Model of road sweeper

Brand

Vehicle Brand

Announcement Batch

Vehicle filing batch

Chassis Model

Dongfeng Dolica D6 chassis model

Emission Standard

National VI emission standard

Wheelbase

Chassis wheelbase

Fuel Type

Diesel fuel

Overall Dimension

Overall vehicle dimension

Total Mass

Gross vehicle weight

Rated Load Mass

Rated carrying weight

Curb Mass

Empty vehicle weight

Cab Capacity

Passenger number of cab

Max Speed

Maximum driving speed

Auxiliary Engine Power

Power of auxiliary engine

Water & Garbage Bin Volume

Total volume of water tank and waste bin

Standard Cleaning Width

Working sweeping width

Hourly Working Capacity

Cleaning area per hour

Bin Tilt Angle & Time

Tipping angle and time of garbage bin

MOQ

1 Pieces

Description

Overall Vehicle Structure
The vehicle is refitted on Dongfeng Dolica Fulika National VI diesel Class II chassis with 3308mm wheelbase. It is equipped with independent auxiliary engine, high-power fan, clean water tank, large-capacity garbage bin, left & right vertical sweeping brushes, rear suction nozzle, brush spray dust suppression system, complete hydraulic system, electric control assembly and reinforced sub-frame. It can finish sweeping, vacuuming and watering simultaneously, replacing multiple sanitation machines and cutting labor costs greatly.
Cleaning Working Function
It is an integrated wet sweeping & vacuum vehicle with classic mid-mounted four vertical brushes and rear suction nozzle structure. During operation, brushes gather fallen leaves, gravel, silt and dust inward, and the bottom negative-pressure suction nozzle collects waste synchronously. The rear suction nozzle has 3 groups of height-adjustable wheels to adapt to uneven roads and keep stable suction gap for better cleaning effect. Water pipes above the nozzle provide secondary dust suppression, and optional front & rear atomizing devices eliminate secondary dust pollution and wash road curbs.
Core Component Configuration
Auxiliary engine and fan are key cleaning parts. Equipped with 57kw Jiangling auxiliary engine and automatic clutch to reduce impact during fan start and stop, featuring low noise, low fuel consumption and high wear resistance. Original Sanyo cycloid motors drive sweeping brushes with stable performance, low failure rate and long service life. The integrated solenoid valve group of hydraulic system controls lifting of brushes and suction nozzles, garbage bin tipping and rear door opening/closing, with dust-proof cover. Imported 12V/24V electromagnetic water pump supplies continuous spray to restrain dust. Integrated Siemens control switches from Germany are installed in cab for centralized electro-hydraulic operation, single person can complete all cleaning work. Multiple National VI diesel main engines are optional for legal registration nationwide.
Application Scenarios
It is widely applied to municipal roads, squares, residential communities, industrial parks, logistics zones, airport runways, campuses and scenic parks. It can clean road dust, gravel, fallen leaves, paper scraps, silt and light oil stains. The wet sweeping mode meets national environmental sanitation standards.
Standard On-board Accessories & Optional Paid Configurations
Standard accessories: fan belt, operating hand rocker, rear door sealing strip, suction nozzle sealing ring, fire hose.
Optional customization: curved/square garbage bin, middle/rear suction nozzle, single/double row sweeping brushes, various garbage bin rear doors, front & rear full vehicle spray system.
After-sales Service Commitment
Chassis and auxiliary engine are maintained by local brand service stations and not covered by upper body warranty. The refitted upper assembly enjoys a 12-month warranty, excluding vulnerable parts and man-made damage. Free repair for non-artificial quality faults within warranty period. Lifetime maintenance at cost price after warranty expiration. Technical support within 24 hours after receiving repair report, spare parts delivered within 72 hours; on-site maintenance staff will arrive within 72 hours if field service is needed.
