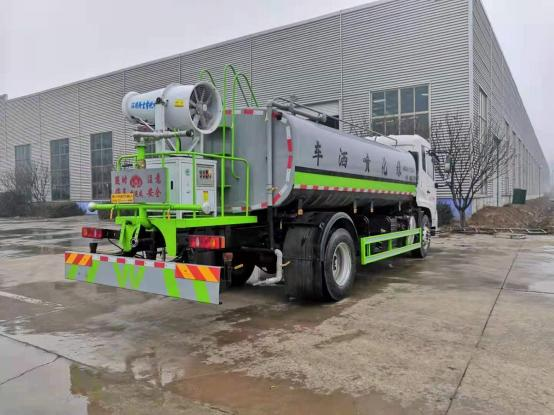

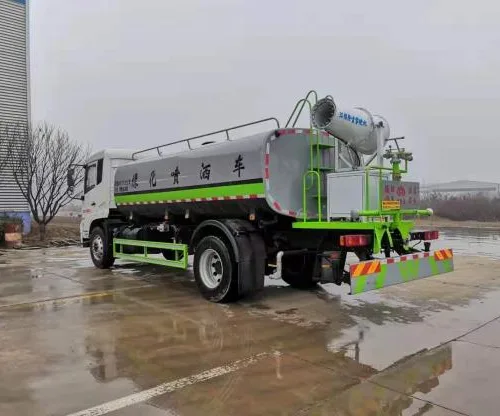

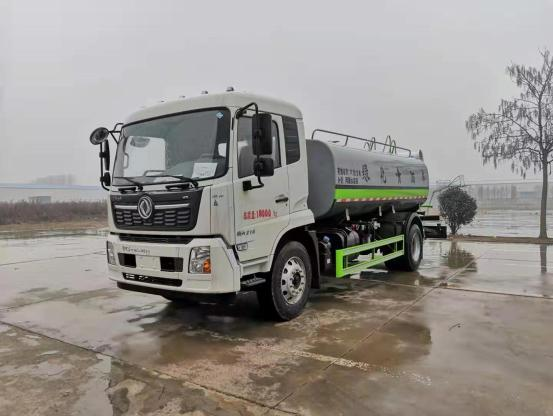

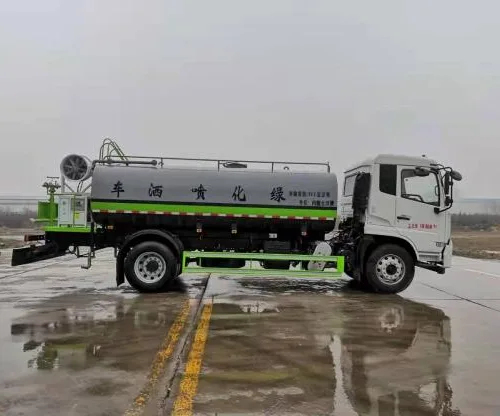

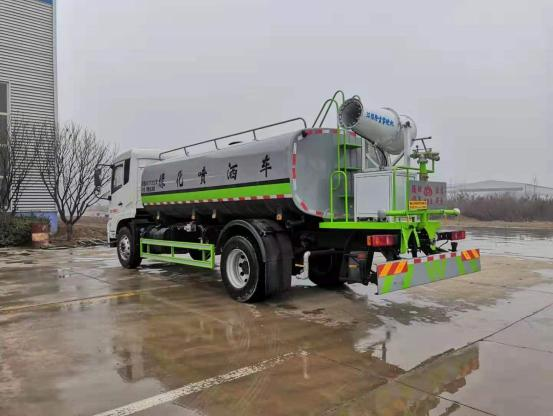

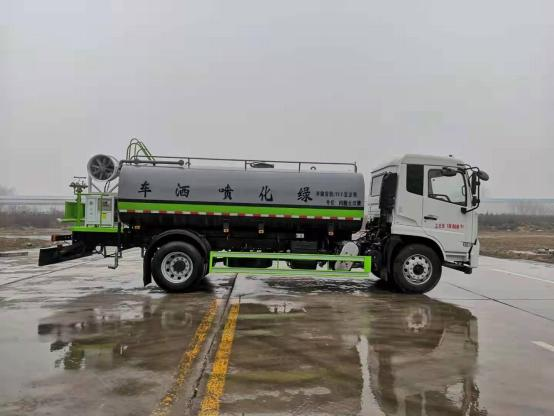

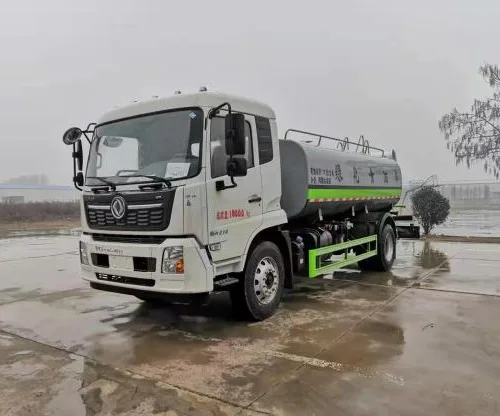

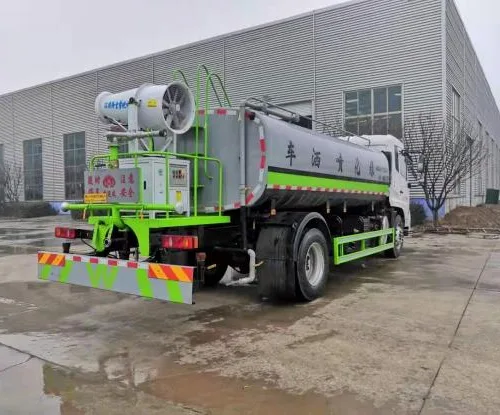

Dongfeng Kinland 11.7CBM Green Sprinkler Truck ZYW5183GPSDF6 National VI Water Spraying Truck

Name: Dongfeng Kinland 11.7CBM Green Sprinkler Truck ZYW5183GPSDF6 National VI Water Spraying Truck
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

Zhongyunwei ZYW5183GPSDF6 Dongfeng Kinland National VI green sprinkler truck with 18-ton total mass and 11.7 cubic meters large water tank. Standard equipped with front flusher, rear sprinkler, side spray and 360° high-pressure water cannon. Spraying width reaches 15m, water cannon range 25-30m. Widely used for municipal road washing, garden irrigation, construction dust control and pesticide spraying. Factory guide price 180,000 RMB, National VI emission standard for nationwide registration.

$26550.00

Send Message Contact Supplier

Shandong Zhongquan Sanitation Equipment Co., Ltd.

Main Products: Fecal suction trucks, sewage suction trucks, fire trucks, sweeping trucks, high-pressure cleaning trucks, garbage trucks

View Supplier

Year Established Established in 2018

Main Products Fecal suction trucks, sewage suction trucks, fire trucks, sweeping trucks, high-pressure cleaning trucks, garbage trucks

Employees 101-500 People

Factory Area 10,000-50,000 m²

Annual Revenue US$5 Million - US$10 Million

Main Markets Southeast Asia / Middle East & North Africa / Africa

Details

Specifications

Trade Information

Vehicle Chassis Configuration
Adopt Dongfeng Kinland DFH1180EX8 Class II cargo chassis with National VI diesel emission standard. Multiple high-power engines of Cummins and Dongfeng self-developed are optional. 6-wheel heavy load design with tire size 10.00R20 / 275/80R22.5, suitable for complex roads of urban areas, parks and construction sites. Multiple wheelbases of 3950/4500/4700mm are available. Overall dimension ranges from 7900-8650×2500×3200-3360mm, total mass 18000kg, rated load over 10 tons for large water carrying capacity and long continuous operation. Side and rear guards are made of Q235 steel fixed by bolts for stable driving safety.
Water Tank Superstructure
The tank has an effective volume of 11.7m³, made of thickened steel plate with 4mm bottom thickness and 3mm side thickness, anti-rust & anti-corrosion treatment optional. Multi-spec elliptical tank with built-in anti-wave baffles to avoid water shaking during driving and prevent deformation. Equipped with self-priming high-pressure water pump with max suction depth ≥7m, easy clutch power take-off control to switch pump on/off when engine running.
Full Multifunctional Spraying System
Four independent water spraying channels with separate switch control for each nozzle:
① Dual front flushing nozzles, 14m flushing width for double sides, single side flushing distance 7m to wash road silt powerfully;
② Dual rear sprinklers at vehicle tail with 15m full coverage width for uniform road dust suppression;
③ Duckbill side spray nozzles on both sides with 20m coverage for garden irrigation;
④ 360° rotatable rear high-pressure water cannon, pitching angle -15°~100°, adjustable jet modes including column, medium rain and mist, max range 25-30m for long-distance dust reduction, irrigation and pesticide spraying. Optional fog cannon on rear platform for enhanced construction dust control.
Core Working Parameters
Spraying width ≥15m, water cannon range 25-30m, pump self-priming depth ≥7m, water output ≥0.5L per square meter. Recommended working speed 15-25km/h for high efficiency and uniform water saving.
Application Scenarios
Municipal road washing & sanitation dust suppression, community & factory road cleaning; irrigation for parks, green belts and seedling bases; construction site dust control; road maintenance & cooling; pesticide spraying for agriculture and forestry, emergency fire water supply.
On-board Documents & Accessories
Complete documents for vehicle registration including chassis certificate, whole vehicle certificate, sales invoice and full set of maintenance tools.
After-sales Service
Dongfeng chassis enjoys nationwide joint warranty at official service stations. The water tank, pump and spray pipelines of superstructure are warranted for 1 year excluding vulnerable parts. 24-hour technical support after fault report, fast spare parts delivery, maintenance service at nearby service outlets, cost-price spare parts supply for lifetime.

Vehicle Model

Green Sprinkler Truck Model

Brand

Vehicle Brand

Announcement Batch

Vehicle Filing Batch

Chassis Model

Dongfeng Kinland Chassis Model

Emission Standard

National VI Emission Standard

Fuel Type

Diesel Fuel

Optional Wheelbase

Available Chassis Wheelbase

Overall Dimension

Vehicle Outer Size Range

Total Mass

Gross Vehicle Weight

Rated Load Mass

Max Water Loading Capacity

Curb Mass

Empty Vehicle Weight

Cab Seating Capacity

Passenger Quantity

Axle & Tire Quantity

2 Axles, 6 Tires

Tire Spec

Heavy-duty Tire Model

Max Speed

Maximum Driving Speed

Optional Wheelbase

Available Chassis Wheelbase

Overall Dimension

Vehicle Outer Size Range

Total Mass

Gross Vehicle Weight

Axle & Tire Quantity

2 Axles, 6 Tires

Tank Plate Thickness

Bottom 4mm, Side 3mm

Water Pump Type

Self-priming High Pressure Pump

Spraying Width

Road Spraying Coverage

Water Cannon Range

Max Jet Distance of Water Gun

Water Cannon Rotation

Horizontal & Vertical Adjustment Range

MOQ

1 Pieces

Description

Vehicle Chassis Configuration
Adopt Dongfeng Kinland DFH1180EX8 Class II cargo chassis with National VI diesel emission standard. Multiple high-power engines of Cummins and Dongfeng self-developed are optional. 6-wheel heavy load design with tire size 10.00R20 / 275/80R22.5, suitable for complex roads of urban areas, parks and construction sites. Multiple wheelbases of 3950/4500/4700mm are available. Overall dimension ranges from 7900-8650×2500×3200-3360mm, total mass 18000kg, rated load over 10 tons for large water carrying capacity and long continuous operation. Side and rear guards are made of Q235 steel fixed by bolts for stable driving safety.
Water Tank Superstructure
The tank has an effective volume of 11.7m³, made of thickened steel plate with 4mm bottom thickness and 3mm side thickness, anti-rust & anti-corrosion treatment optional. Multi-spec elliptical tank with built-in anti-wave baffles to avoid water shaking during driving and prevent deformation. Equipped with self-priming high-pressure water pump with max suction depth ≥7m, easy clutch power take-off control to switch pump on/off when engine running.
Full Multifunctional Spraying System
Four independent water spraying channels with separate switch control for each nozzle:
① Dual front flushing nozzles, 14m flushing width for double sides, single side flushing distance 7m to wash road silt powerfully;
② Dual rear sprinklers at vehicle tail with 15m full coverage width for uniform road dust suppression;
③ Duckbill side spray nozzles on both sides with 20m coverage for garden irrigation;
④ 360° rotatable rear high-pressure water cannon, pitching angle -15°~100°, adjustable jet modes including column, medium rain and mist, max range 25-30m for long-distance dust reduction, irrigation and pesticide spraying. Optional fog cannon on rear platform for enhanced construction dust control.
Core Working Parameters
Spraying width ≥15m, water cannon range 25-30m, pump self-priming depth ≥7m, water output ≥0.5L per square meter. Recommended working speed 15-25km/h for high efficiency and uniform water saving.
Application Scenarios
Municipal road washing & sanitation dust suppression, community & factory road cleaning; irrigation for parks, green belts and seedling bases; construction site dust control; road maintenance & cooling; pesticide spraying for agriculture and forestry, emergency fire water supply.
On-board Documents & Accessories
Complete documents for vehicle registration including chassis certificate, whole vehicle certificate, sales invoice and full set of maintenance tools.
After-sales Service
Dongfeng chassis enjoys nationwide joint warranty at official service stations. The water tank, pump and spray pipelines of superstructure are warranted for 1 year excluding vulnerable parts. 24-hour technical support after fault report, fast spare parts delivery, maintenance service at nearby service outlets, cost-price spare parts supply for lifetime.
