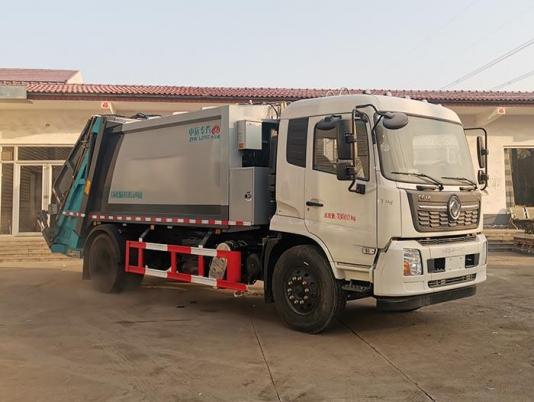

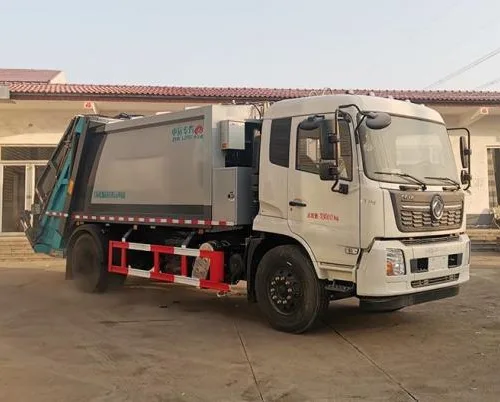

Dongfeng Kinland 14CBM Refuse Compactor Truck

Name: Dongfeng Kinland 14CBM Refuse Compactor Truck
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

Zhongyunwei ZYW5181ZYS6DF Dongfeng Kinland National VI rear loading refuse compactor truck with 14 cubic meters Q345 manganese steel sealed tank and dual hydraulic compression, compression ratio ≥0.7. Fully sealed sewage collection avoids liquid leakage. Standard 240L bin lifting rack, auto & manual dual control for municipal & community domestic waste transport. Factory guide price 250,000 RMB, National VI compliant for nationwide registration, 1 year / 30,000km warranty for superstructure.

$36672.00

Send Message Contact Supplier

Shandong Zhongquan Sanitation Equipment Co., Ltd.

Main Products: Fecal suction trucks, sewage suction trucks, fire trucks, sweeping trucks, high-pressure cleaning trucks, garbage trucks

View Supplier

Year Established Established in 2018

Main Products Fecal suction trucks, sewage suction trucks, fire trucks, sweeping trucks, high-pressure cleaning trucks, garbage trucks

Employees 101-500 People

Factory Area 10,000-50,000 m²

Annual Revenue US$5 Million - US$10 Million

Main Markets Southeast Asia / Middle East & North Africa / Africa

Details

Specifications

Trade Information

Chassis Configuration
Adopt Dongfeng Kinland DFH1180EX8 Class II cargo chassis with National VI emission standard, equipped with D6.7NS6B230 Cummins 230HP engine for strong power. Optional 4500/4700mm wheelbase, overall dimension 8450-9130×2500×3360mm, total mass 18 tons, heavy-duty 10.00R20 tires for stable driving on narrow urban & community roads. Side guards welded with Q345 steel for driving safety.
Tank & Sealing Superstructure
The waste bin is made of thickened Q345 manganese steel with arc shape to expand capacity and structural strength. Diversion grooves and double lip sealing strips between bin and loader prevent leakage. Two large sewage tanks at rear collect leachate generated during compression for centralized discharge, eliminating liquid dripping and odor pollution. Lock hooks on loader ensure fully sealed transport without waste spillage.
Core Hydraulic Compression System
Equipped with Hefei Changyuan high-pressure dual oil pump, Yangzhou Zhongmei multi-way valve and Boli wear-resistant hydraulic cylinders, matched with compaction valve for dual-side squeezing. Compression ratio reaches 0.7, loading capacity 2.5 times of ordinary garbage trucks. Enlarged hydraulic oil tank with filter avoids component abrasion. Back pressure valve balances cylinder stress to extend service life. Single filling cycle ≤30s, discharging time ≤25s for high efficiency.
Intelligent Electric Control System
Siemens CAN bus one-key cycle control, dual operation panels in cab and vehicle side, wireless remote control optional. Photoelectric sensor & timing dual modes, free switch between full auto and semi-auto. Single operator can finish bin lifting, filling, compression and discharging. Emergency stop button, working lamp for night use, pressure limiting valve and PTO warning labels prevent misoperation with multi safety protection.

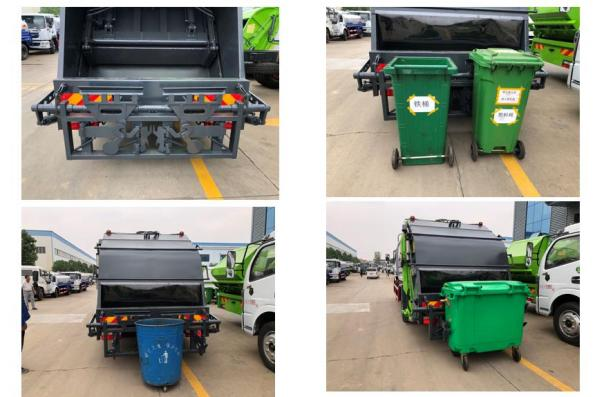

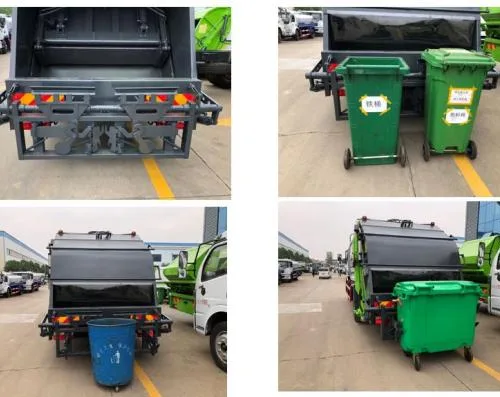

Optional Loading Lifting Devices
Standard lifting rack for 240L plastic bins, upgradeable for 120L & 660L bins. Ground hopper, swing arm loader, fully sealed rear cover and independent dual pump (faster bin lifting) are optional to meet diverse waste collection demands of property, sanitation stations and factories.
Application Scenarios
Domestic waste collection & transportation for municipal roads, residential quarters, schools, hospitals, industrial parks and town streets. Suitable for bagged, barreled and bulk household waste with zero liquid leakage and waste scattering, meeting urban environmental transport standards.
Safety Operation Notes
Keep people away from vehicle rear during work; load waste evenly to avoid gravity shift; no large hard debris or construction waste to prevent scraper damage; confirm surrounding safety before lifting loader, no discharging on slopes; do not drive with unlocked loader.
After-sales Service Commitment
Dongfeng chassis enjoys nationwide one-year or 30,000km joint warranty at official service stations. The compaction superstructure is warranted for 1 year (excluding vulnerable parts) with direct factory repair. 24-hour technical consultation, fast spare parts supply and lifetime maintenance at cost price.

Vehicle Model

Rear Loading Refuse Compactor Truck Model

Brand

Vehicle Brand

Announcement Batch

Vehicle Filing Batch

Chassis Model

Dongfeng Kinland Chassis Model

Emission Standard

National VI Emission Standard

Fuel Type

Diesel Fuel

Optional Wheelbase

Design Wheelbase

Overall Dimension

Whole Vehicle Outer Size

Total Mass

Gross Vehicle Weight

Rated Load Mass

Max Waste Loading Weight

Curb Mass

Empty Vehicle Weight

Cab Seating Capacity

Passenger Quantity

Axle & Tire Quantity

2 Axles, 6 Heavy-duty Tires

Tire Spec

Tire Model

Max Speed

Maximum Driving Speed

Bin Effective Volume

Waste Tank Capacity

Tank Material

Manganese Steel Q345

Compression Ratio

Waste Volume Reduction Rate

Loader Volume

Feeding Hopper Capacity

Filling Cycle Time

Single Compression Operation Time

Hydraulic Oil Pump

Pump Brand

Multi-way Valve

Hydraulic Valve Brand

MOQ

1 Pieces

Description

Chassis Configuration
Adopt Dongfeng Kinland DFH1180EX8 Class II cargo chassis with National VI emission standard, equipped with D6.7NS6B230 Cummins 230HP engine for strong power. Optional 4500/4700mm wheelbase, overall dimension 8450-9130×2500×3360mm, total mass 18 tons, heavy-duty 10.00R20 tires for stable driving on narrow urban & community roads. Side guards welded with Q345 steel for driving safety.
Tank & Sealing Superstructure
The waste bin is made of thickened Q345 manganese steel with arc shape to expand capacity and structural strength. Diversion grooves and double lip sealing strips between bin and loader prevent leakage. Two large sewage tanks at rear collect leachate generated during compression for centralized discharge, eliminating liquid dripping and odor pollution. Lock hooks on loader ensure fully sealed transport without waste spillage.
Core Hydraulic Compression System
Equipped with Hefei Changyuan high-pressure dual oil pump, Yangzhou Zhongmei multi-way valve and Boli wear-resistant hydraulic cylinders, matched with compaction valve for dual-side squeezing. Compression ratio reaches 0.7, loading capacity 2.5 times of ordinary garbage trucks. Enlarged hydraulic oil tank with filter avoids component abrasion. Back pressure valve balances cylinder stress to extend service life. Single filling cycle ≤30s, discharging time ≤25s for high efficiency.
Intelligent Electric Control System
Siemens CAN bus one-key cycle control, dual operation panels in cab and vehicle side, wireless remote control optional. Photoelectric sensor & timing dual modes, free switch between full auto and semi-auto. Single operator can finish bin lifting, filling, compression and discharging. Emergency stop button, working lamp for night use, pressure limiting valve and PTO warning labels prevent misoperation with multi safety protection.
Optional Loading Lifting Devices
Standard lifting rack for 240L plastic bins, upgradeable for 120L & 660L bins. Ground hopper, swing arm loader, fully sealed rear cover and independent dual pump (faster bin lifting) are optional to meet diverse waste collection demands of property, sanitation stations and factories.
Application Scenarios
Domestic waste collection & transportation for municipal roads, residential quarters, schools, hospitals, industrial parks and town streets. Suitable for bagged, barreled and bulk household waste with zero liquid leakage and waste scattering, meeting urban environmental transport standards.
Safety Operation Notes
Keep people away from vehicle rear during work; load waste evenly to avoid gravity shift; no large hard debris or construction waste to prevent scraper damage; confirm surrounding safety before lifting loader, no discharging on slopes; do not drive with unlocked loader.
After-sales Service Commitment
Dongfeng chassis enjoys nationwide one-year or 30,000km joint warranty at official service stations. The compaction superstructure is warranted for 1 year (excluding vulnerable parts) with direct factory repair. 24-hour technical consultation, fast spare parts supply and lifetime maintenance at cost price.
