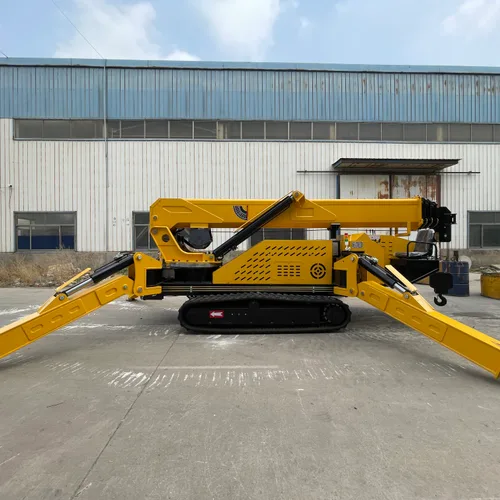

1. Powerful Dual Power System Stable For Heavy Lifting
Two versions: HC8.0AA diesel type & HC8.0AB electric type. Diesel model adopts Yunnei YN27GBZ turbo engine with 58Kw high power & 2.7L displacement, sufficient torque for long-distance high-altitude heavy work. Electric version equipped with 15Kw three-phase asynchronous motor under 380V industrial power, zero exhaust for indoor environment. Hydraulic system uses imported valves & high-end domestic components with high-pressure leak-proof seals, stable during long continuous lifting, spare parts widely available overseas.

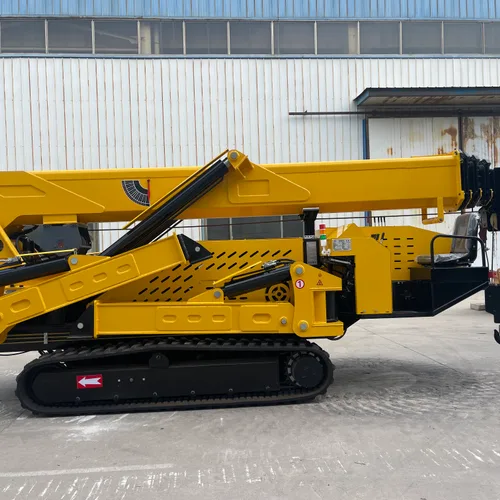

2. Hexagonal 5-Section Boom Ultra Long Working Range
Integrated thick hexagonal 5-section boom, extension range 5~16.8m, fully extended within 50s. Boom luffing angle 0~78°, winch with high/low dual speed (6.5/12m/min). Max 80m long Φ12 steel wire rope, max underground lowering depth 80m, ideal for basement & super high-rise long-distance hoisting. Multi-range load chart, full 8t capacity at short radius, stable lifting at far distance, greatly improve efficiency for curtain wall & heavy mold installation.
3. Dual-Speed Hydraulic Crawler & Auto Hydraulic Outriggers
2570*350mm wide wear-resistant rubber tracks with two travel speeds 0.8/2km/h, 20° gradeability for stable driving on factory yards & muddy construction sites. Four outriggers manually pulled out & auto hydraulic leveling, max support span side 6400mm, front 6500mm, rear 5400mm. One-click auto leveling on potholes & slopes, outriggers can be retracted for tight-side operation without occupying narrow space.
4. 100m Long-Distance Wireless Smart Remote Control
Travel, boom extension/luffing, winch and outriggers all controllable via 100m wireless joystick, with backup local manual operation. Remote controller displays real load data, auto alarm & lock under overload to avoid misoperation. Operators can stay far away from high-rise lifting zones to boost safety.
5. Multi-Layer Safety Protection For Harsh Working Conditions
Standard safety configurations: moment limiter, anti-tilt device, level gauge, tri-color warning light, emergency stop, interlock protection for travel/outrigger/boom. Auto shutdown & lock triggered by overload, unextended outriggers or machine tilt. 130L large hydraulic oil tank for long-hour oil supply. Machine weight 7050~7300kg, compact dimension 501016002200mm, transportable by full-size truck, suitable for both enclosed indoor workshops & outdoor field projects.
6. Application Scenarios & Export Supply Advantages
Widely used for heavy equipment disassembly in chemical & machinery workshops, high-rise glass curtain wall installation, substation electrical maintenance, narrow field infrastructure and large unit relocation in underground garages. CE certified to meet import standards of Europe, America, Southeast Asia & Middle East. Custom power & boom length available. Machine packed in reinforced steel frame & wooden case for sea shipment, sufficient ready stock, bulk supply price 136,000 RMB excluding tax & freight for overseas construction, rental & electromechanical traders.
