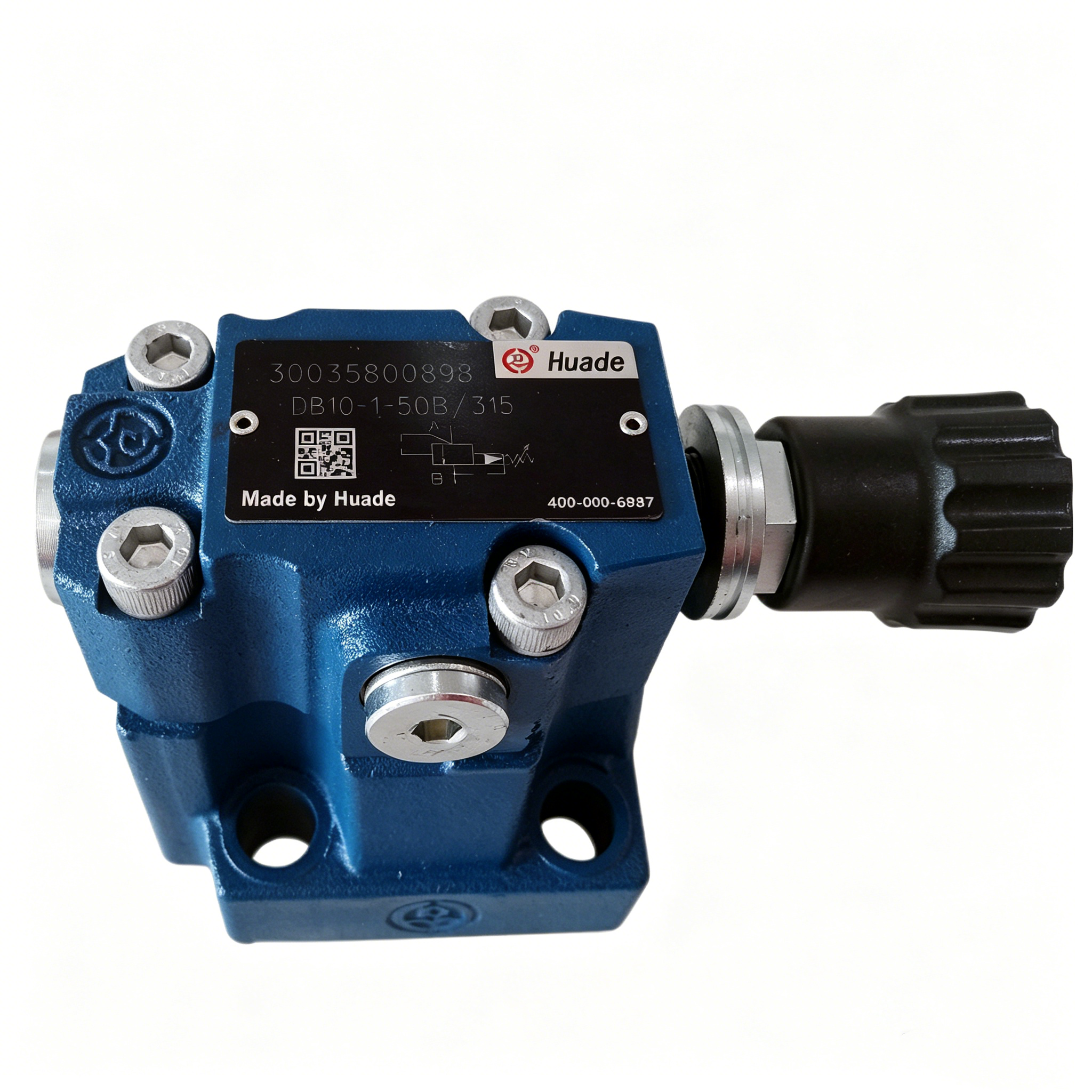

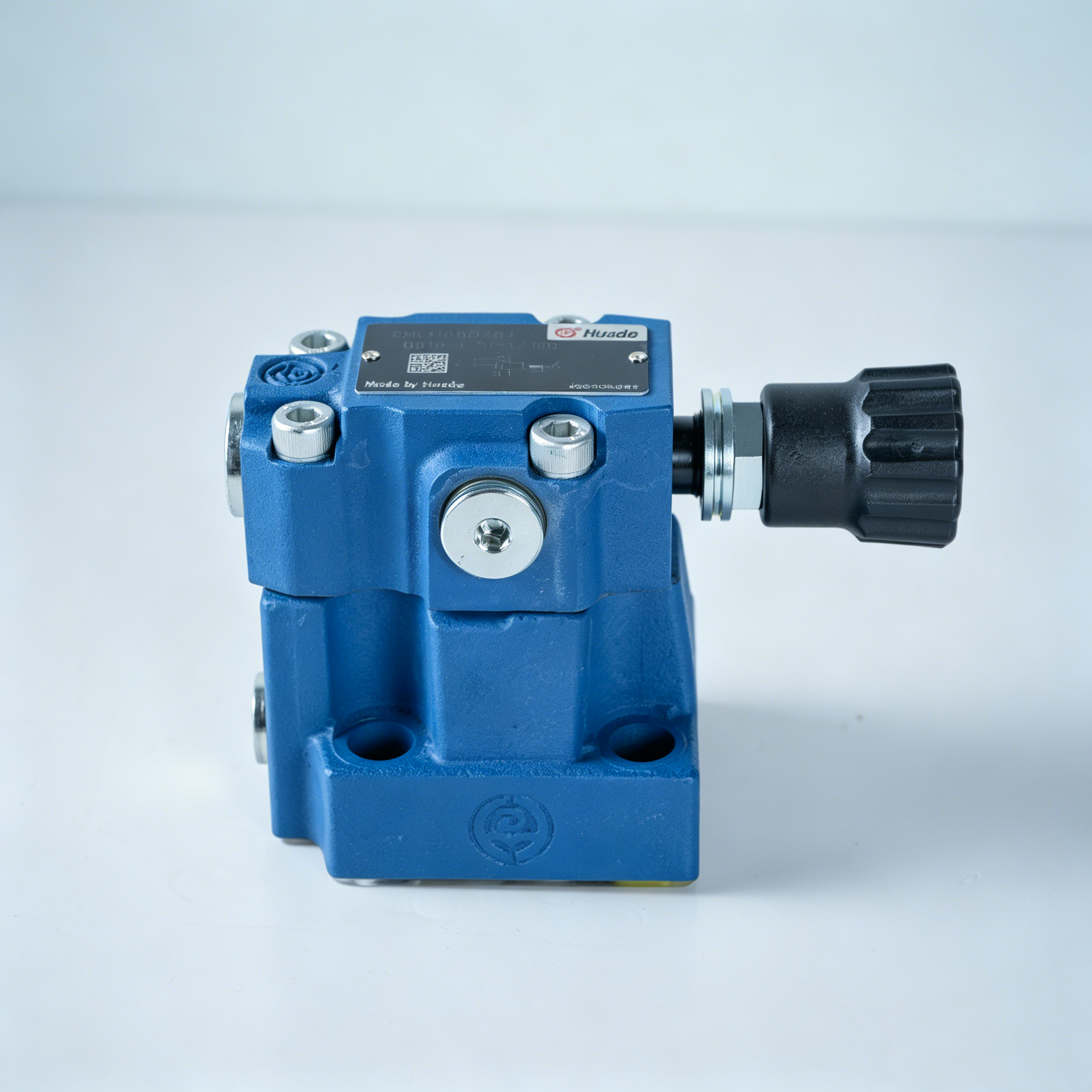

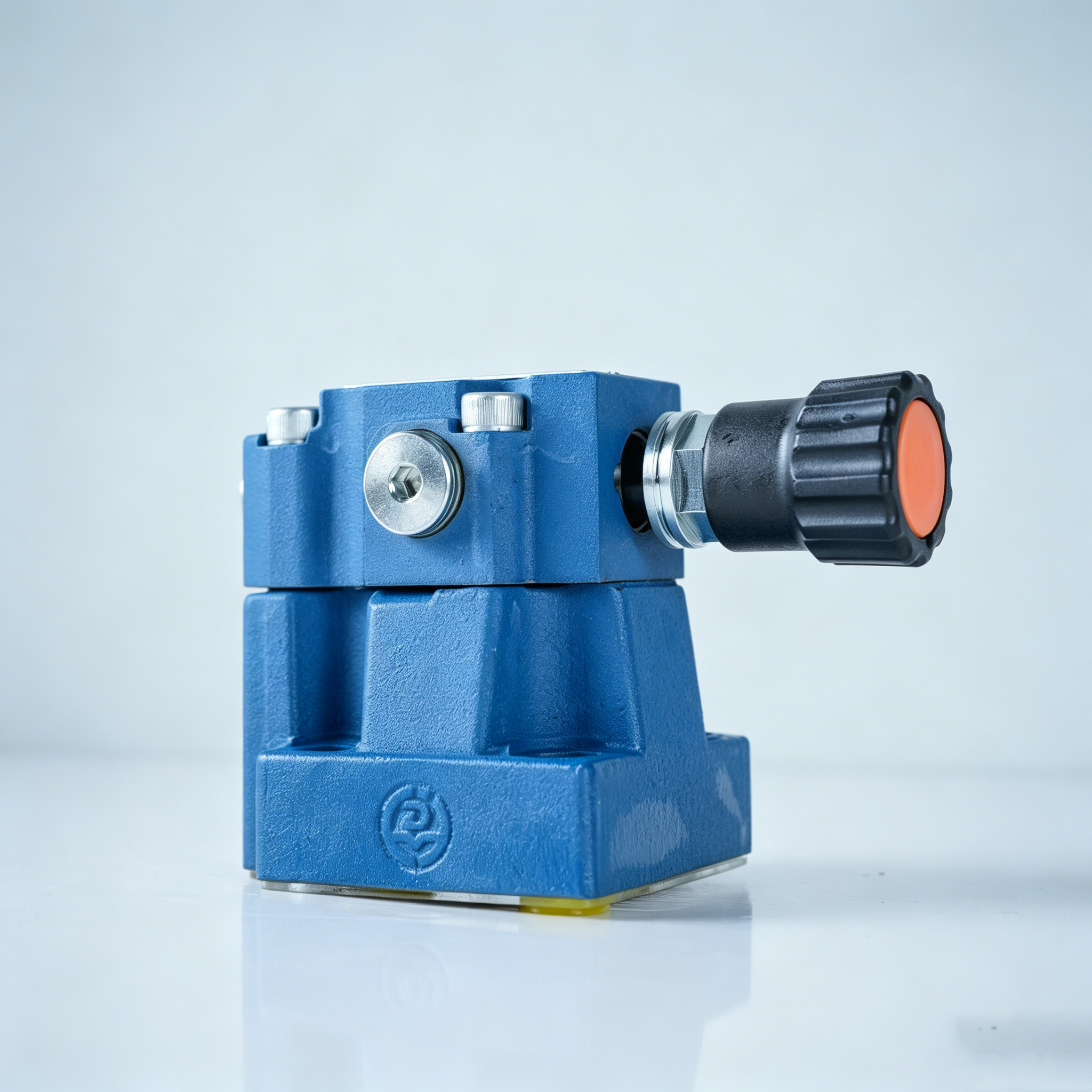

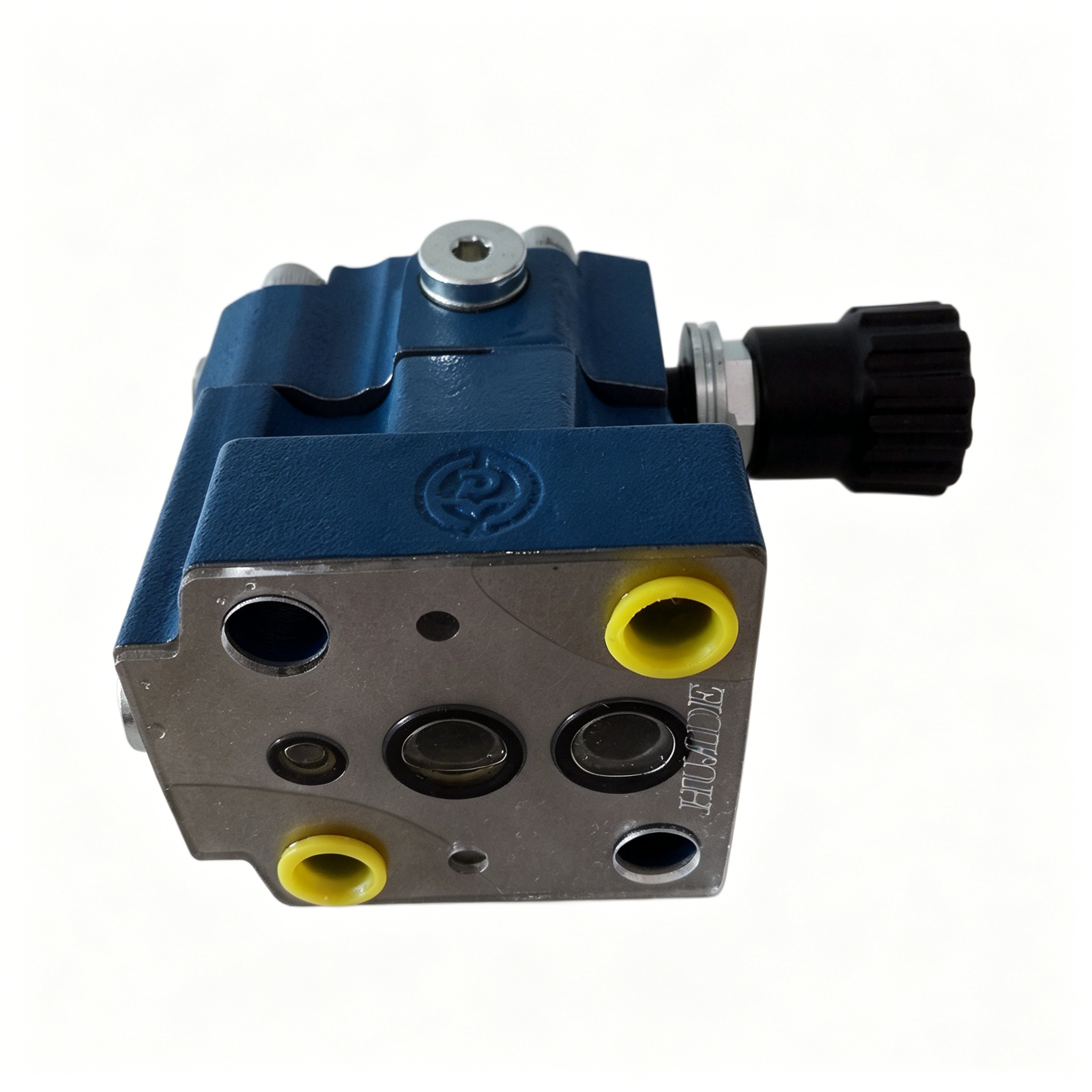

HUADE Overflow valve, safety valve of hydraulic system DB10-1-50B/315

Name: HUADE Overflow valve, safety valve of hydraulic system DB10-1-50B/315
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

This relief valve features higher working pressure and stronger flow capacity. It can effectively limit and stabilize the pressure of the hydraulic system, protecting the components within the system.
This valve can be widely applied in hydraulic systems of equipment such as lifting and transportation, construction machinery, engineering vehicles, machine tools, ships, and metallurgy.

$50.99

型号:

DB10-1-50B/200

DB10-1-50B/315

DB10-2-50B/31

Send Message Contact Supplier

Shandong Youxin Hydraulic & Pneumatic Co., Ltd.

View Supplier

Year Established Established in 2001

Employees 101-500 People

Factory Area 10,000-50,000 m²

Annual Revenue Above US$50 Million

Main Markets Southeast Asia / Middle East & North Africa / Africa

Details

Trade Information

This series of relief valves are available in three specifications: 10, 20, and 30. The threaded connection type (tube connection) is available in five specifications: 10, 15, 20, 25, and 32. The set pressure is available in five options: 5.0 MPa, 10.0 MPa, 20.0 MPa, 31.5 MPa, and 35.0 MPa. The flow rate is 250 L/min for specification 10), 500 L/min for specifications 15, 20, and 25), and 650 L/min for specification 32. The connection methods include plate type, tube type, and cartridge type.

MOQ

1 Pieces
