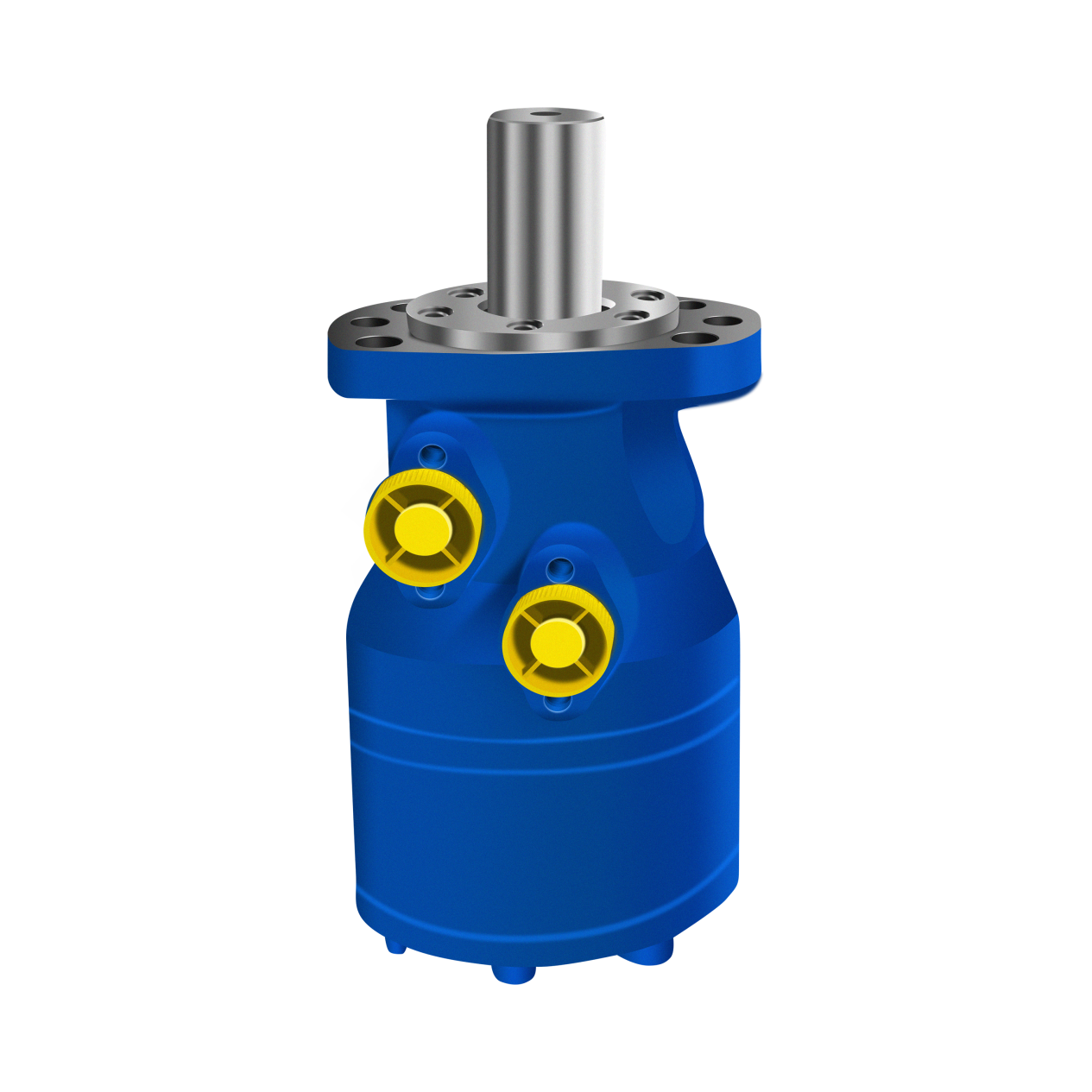

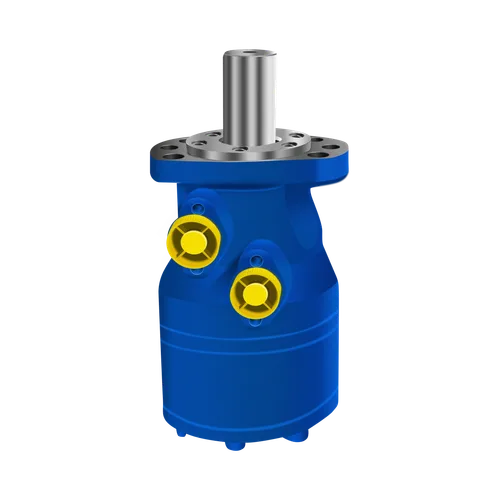

KM4 Series Heavy Duty Orbital Hydraulic Motor 6-Hole Flange Large Displacement Motor For Drill & Heavy Farm Machinery

Name: KM4 Series Heavy Duty Orbital Hydraulic Motor 6-Hole Flange Large Displacement Motor For Drill & Heavy Farm Machinery
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

KM4 heavy-duty orbital hydraulic motor with 6-hole flange, displacement 195–800ml/r, max intermittent pressure 20MPa, peak torque 1380N·m. It features low speed & high torque, impact resistance, bidirectional rotation, suitable for heavy hydraulic drive of mixer trucks, mine winches, drill rigs and large agricultural machinery.

$10.00

Displacement (ml/r):

245

310

395

490

625

800

Send Message Contact Supplier

Shandong Kersten Hydraulic Technology Co., Ltd.

View Supplier

Year Established Established in 2022

Employees Less than 50 People

Factory Area 10,000-50,000 m²

Annual Revenue US$1 Million - US$5 Million

Main Markets North America / Europe / Southeast Asia / Latin America

Details

Specifications

Trade Information

1. Structural & Craft Advantages

Integrated thickened cast steel housing with enlarged 6-hole flange base for even load bearing. High-precision cycloid rotor flow distribution pair ensures high volumetric efficiency and low internal leakage. Two side oil ports support forward/reverse rotation by swapping pipelines. Thick solid output shaft withstands heavy radial impact with long wear-resistant service life.

2. Heavy Load Performance Highlights

Full large displacement range from 195 to 800ml/r. Model 195 can bear intermittent pressure up to 20MPa, model 800 reaches peak torque 1380N·m. Smooth low-speed startup without stall, stable operation under long-term heavy load. Continuous flow 75–80LPM and intermittent peak flow 100LPM, perfectly matched with large high-pressure hydraulic pump stations.

3. Application Scenarios

Construction Equipment: Drive unit for concrete mixer trucks, mine winches, drill power heads, heavy truck crane winches;
Agricultural Machinery: Large harvesters, fertilizer spreaders, heavy rotary tillers, fishing vessel net haulers;
Special Equipment: Sanitation heavy roller brushes, heavy flatbed steering, mine transport vehicle hydraulic mechanisms.

4. Supply & After-Sales Service

All displacements in stock with tiered discount for bulk orders. Every unit passes full inspection of pressure, torque, rotation speed and tightness before delivery. 12-month warranty for main housing and cycloid rotor. One-stop supply of seal kits and flange accessories, full-container export service available.

Displacement (ml/r)

195

Continuous Flow/Intermittent Flow (LPM

75/90

Continuous Speed/Intermittent Speed (RPM)

365/445

Continuous Pressure/Intermittent Pressure (MPa)

17.5/20

Continuous Torque/Intermittent Torque (N・m)

452/530

MOQ

1 Pieces

Description

1. Structural & Craft Advantages

2. Heavy Load Performance Highlights

3. Application Scenarios

Construction Equipment: Drive unit for concrete mixer trucks, mine winches, drill power heads, heavy truck crane winches;
Agricultural Machinery: Large harvesters, fertilizer spreaders, heavy rotary tillers, fishing vessel net haulers;
Special Equipment: Sanitation heavy roller brushes, heavy flatbed steering, mine transport vehicle hydraulic mechanisms.
