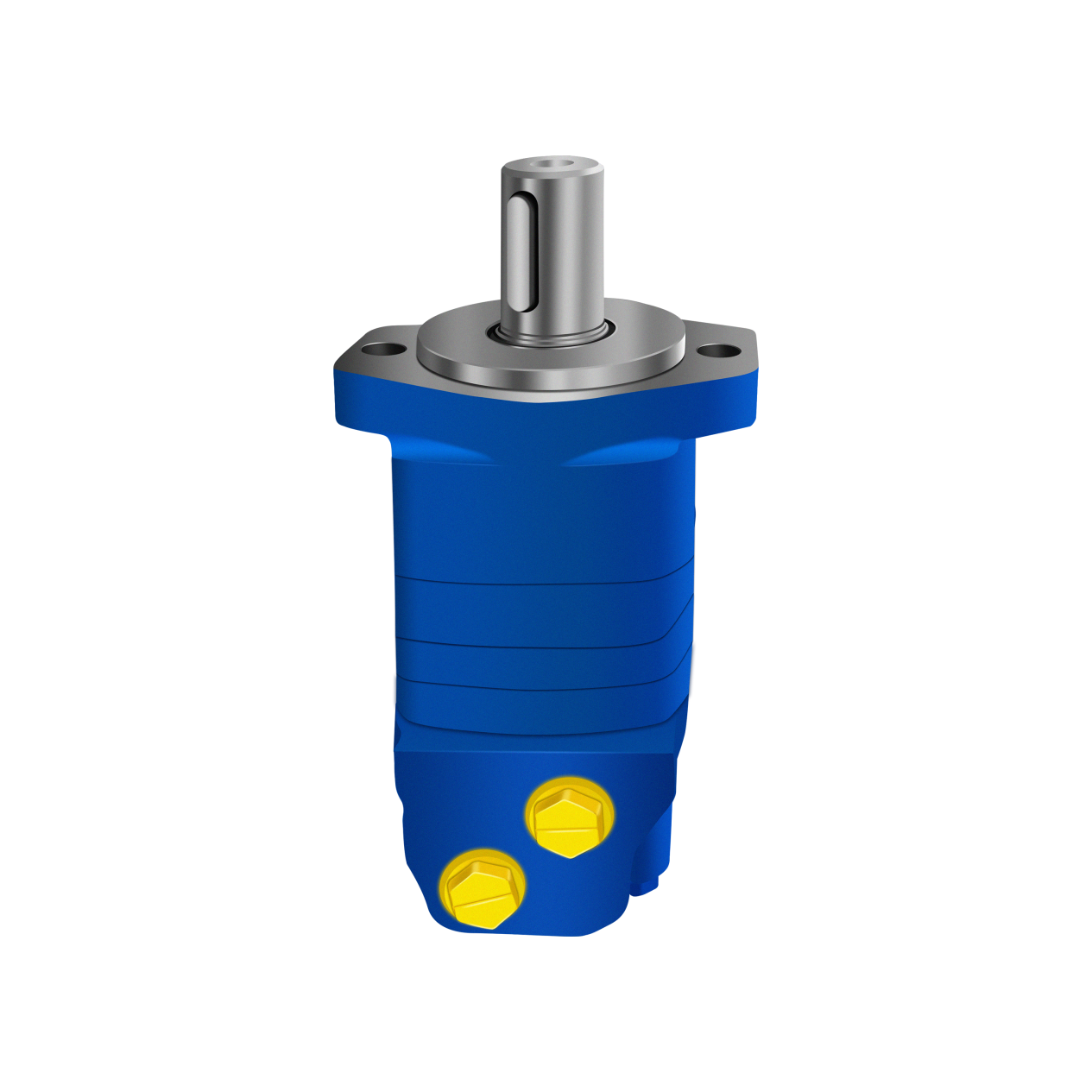

KM5 Series Heavy Duty Orbital Motor Continuous 20.5MPa Intermittent 31MPa Low Speed Drive Motor In Stock


KM5 ultra-high pressure orbital hydraulic motor with 2-hole flange and straight key shaft, displacement range 80–500ml/r. Continuous working pressure 20.5MPa, intermittent peak pressure up to 31MPa. It delivers low speed & high torque with high volumetric efficiency, bidirectional rotation, suitable for high-pressure hydraulic drive of drill rigs, mixer trucks, heavy farm machinery and mine equipment.

$10.00
Displacement (ml/r):
100
125
160
200
250
280
305
321.5
400
500
Send Message Contact Supplier
Shandong Kersten Hydraulic Technology Co., Ltd.

Shandong Kersten Hydraulic Technology Co., Ltd.

View Supplier
Year Established Established in 2022
Employees Less than 50 People
Factory Area 10,000-50,000 m²
Annual Revenue US$1 Million - US$5 Million
Main Markets North America / Europe / Southeast Asia / Latin America
Details
Specifications
Trade Information

1. Structural & Craft Advantages

Integrated thick cast steel housing with standard 2-hole side flange for flexible installation space. High-precision cycloid distribution pair greatly reduces internal leakage for long stable operation. Side single inlet & outlet ports simplify pipeline layout. Thick solid straight key shaft resists radial impact and torsion failure under heavy load. Multi-layer sealing design withstand high pressure and prevent leakage, reliable in dusty and humid harsh environments.

2. High Pressure Performance Highlights

Displacement 80–321.5 supports continuous pressure 20.5MPa; model 80/100/125 reaches intermittent peak pressure 31MPa, leading pressure resistance among same-level motors. Smooth low-speed startup without stall across all displacements, max intermittent torque up to 945N·m. Uniform continuous flow 75L/min, max intermittent peak flow 115L/min, perfectly matched with large-flow high-pressure hydraulic pump stations.

3. Application Scenarios

  • Construction Equipment: Drive unit for concrete mixer drums, core drill power heads, mini excavator travel, truck crane winches;
  • Agricultural Machinery: High-horsepower harvesters, heavy rotary tillers, fish pond aerators, fishing vessel net haulers;
  • Mine Special Equipment: Underground mini transport vehicles, mine slag cleaning rollers, auxiliary drive for road milling machines.

4. Supply & After-Sales Service

All displacements in stock with tiered discount for bulk orders. Every motor passes full performance test of pressure, torque, rotation speed and tightness before delivery. 12-month warranty for main housing and cycloid rotor. One-stop supply of seal kits and connecting flanges, full-container export service available.
Displacement (ml/r)
80
Continuous Flow/Intermittent Flow (L/min)
75/85
Continuous Speed/Intermittent Speed (Rpm)
908/937
Continuous Pressure/Intermittent Pressure (MPa)
20.5/31
Continuous Torque/Intermittent Torque (N・M)
235/345
MOQ
1 Pieces
  • KM5 Series Heavy Duty Orbital Motor Continuous 20.5MPa Intermittent 31MPa Low Speed Drive Motor In Stock

Description

1. Structural & Craft Advantages

Integrated thick cast steel housing with standard 2-hole side flange for flexible installation space. High-precision cycloid distribution pair greatly reduces internal leakage for long stable operation. Side single inlet & outlet ports simplify pipeline layout. Thick solid straight key shaft resists radial impact and torsion failure under heavy load. Multi-layer sealing design withstand high pressure and prevent leakage, reliable in dusty and humid harsh environments.

2. High Pressure Performance Highlights

Displacement 80–321.5 supports continuous pressure 20.5MPa; model 80/100/125 reaches intermittent peak pressure 31MPa, leading pressure resistance among same-level motors. Smooth low-speed startup without stall across all displacements, max intermittent torque up to 945N·m. Uniform continuous flow 75L/min, max intermittent peak flow 115L/min, perfectly matched with large-flow high-pressure hydraulic pump stations.

3. Application Scenarios

  • Construction Equipment: Drive unit for concrete mixer drums, core drill power heads, mini excavator travel, truck crane winches;
  • Agricultural Machinery: High-horsepower harvesters, heavy rotary tillers, fish pond aerators, fishing vessel net haulers;
  • Mine Special Equipment: Underground mini transport vehicles, mine slag cleaning rollers, auxiliary drive for road milling machines.

4. Supply & After-Sales Service

All displacements in stock with tiered discount for bulk orders. Every motor passes full performance test of pressure, torque, rotation speed and tightness before delivery. 12-month warranty for main housing and cycloid rotor. One-stop supply of seal kits and connecting flanges, full-container export service available.
