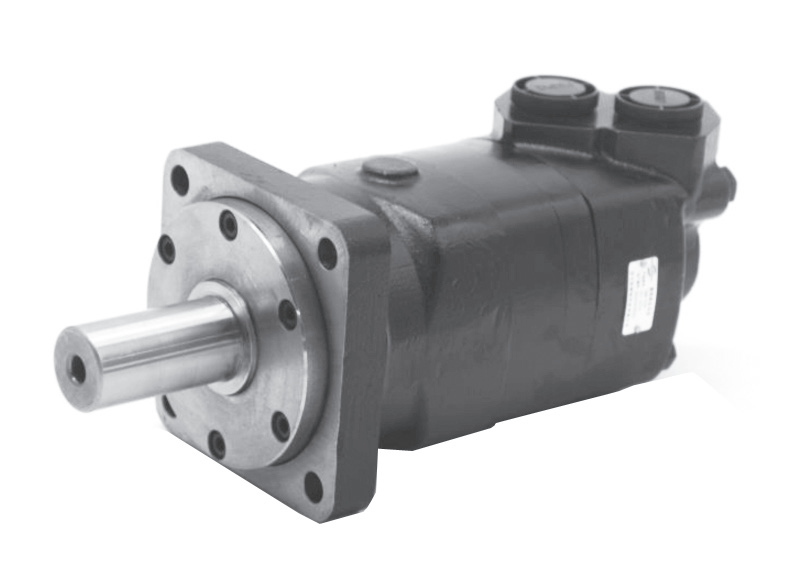

KM6 Large Flow High Pressure Orbital Hydraulic Motor 195-985ml/r High Torque Motor For Mine & Concrete Mixer Truck

Name: KM6 Large Flow High Pressure Orbital Hydraulic Motor 195-985ml/r High Torque Motor For Mine & Concrete Mixer Truck
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

KM6 large-flow heavy-duty orbital hydraulic motor with 6-hole square flange & thick solid shaft, displacement 195–985ml/r. Continuous pressure 20.5MPa, intermittent peak pressure 31MPa, max intermittent torque 1885N·m, sustain continuous flow 150L/min. It features low speed & high torque, impact resistance and long service life, ideal for heavy hydraulic systems of large mixer trucks, mine winches and heavy drill rigs.

$10.00

Displacement (ml/r):

245

310

395

490

625

800

985

Send Message Contact Supplier

Shandong Kersten Hydraulic Technology Co., Ltd.

View Supplier

Year Established Established in 2022

Employees Less than 50 People

Factory Area 10,000-50,000 m²

Annual Revenue US$1 Million - US$5 Million

Main Markets North America / Europe / Southeast Asia / Latin America

Details

Specifications

Trade Information

1. Structural & Craft Advantages

Integrated forged thick cast steel housing with enlarged 6-hole square flange for uniform load and strong bearing capacity. Thick solid heavy-duty output shaft resists large radial impact without torsion failure. Dual parallel rear oil ports support ultra-large flow with flexible pipeline layout. High-precision cycloid rotor pair delivers high volumetric efficiency and ultra-low internal leakage. Multi-layer high-pressure sealing assembly is dustproof, waterproof and slag resistant for stable long-term operation under harsh working conditions.

2. Core Heavy Load Performance

All displacements 195–495 support continuous 20.5MPa & intermittent peak 31MPa, leading high pressure performance in same category. Uniform continuous flow 150LPM, max intermittent peak flow 225LPM, perfectly matched with large high-pressure large-flow hydraulic pump stations. Smooth low-speed startup without stall for all models; model 985 reaches intermittent torque 1875N·m with sufficient power for heavy climbing and winch lifting. Bidirectional rotation by swapping oil ports, series & parallel mounting available for multi-motor synchronous drive.

3. Application Scenarios

Construction Equipment: Drive unit for large concrete mixer trucks, heavy mine winches, deep well drill power heads, heavy-duty truck crane main winches;
Mine Equipment: Travel drive for open-pit mine transport vehicles, coal washing roller drive, underground heavy scraper conveyor;
Special Heavy Machinery: Large road milling machines, heavy flatbed trailer steering, port bulk material conveying rollers.

4. Supply & After-Sales Service

All displacements in stock with tiered wholesale discount for bulk orders. Every unit passes full performance inspection of pressure, flow, torque and tightness before delivery. 12-month warranty for main cast steel housing and cycloid rotor. One-stop supply of seal kits, connecting flanges and couplings, full-container complete set export service available.

Displacement (ml/r)

195

Continuous Flow/Intermittent Flow (LPM)

150/170

Continuous Speed/Intermittent Speed (RPM

775/866

Continuous Pressure/Intermittent Pressure (MPa)

20.5/31

Continuous Torque/Intermittent Torque (N・M)

575/860

MOQ

1 Pieces

Description

1. Structural & Craft Advantages

2. Core Heavy Load Performance

3. Application Scenarios

Construction Equipment: Drive unit for large concrete mixer trucks, heavy mine winches, deep well drill power heads, heavy-duty truck crane main winches;
Mine Equipment: Travel drive for open-pit mine transport vehicles, coal washing roller drive, underground heavy scraper conveyor;
Special Heavy Machinery: Large road milling machines, heavy flatbed trailer steering, port bulk material conveying rollers.
