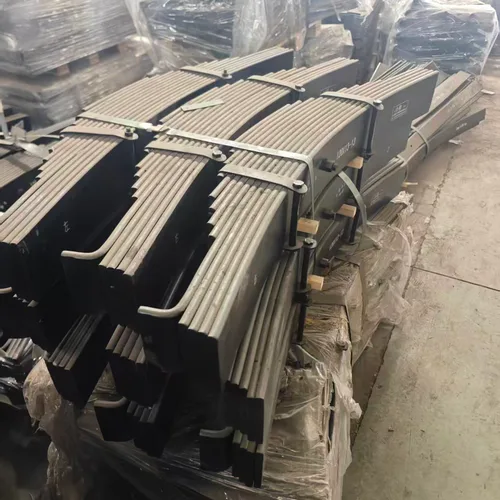

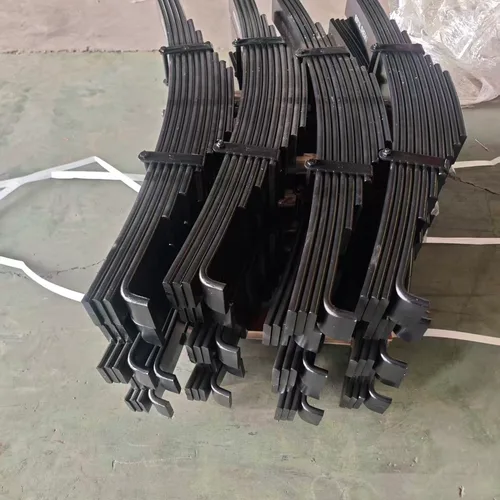

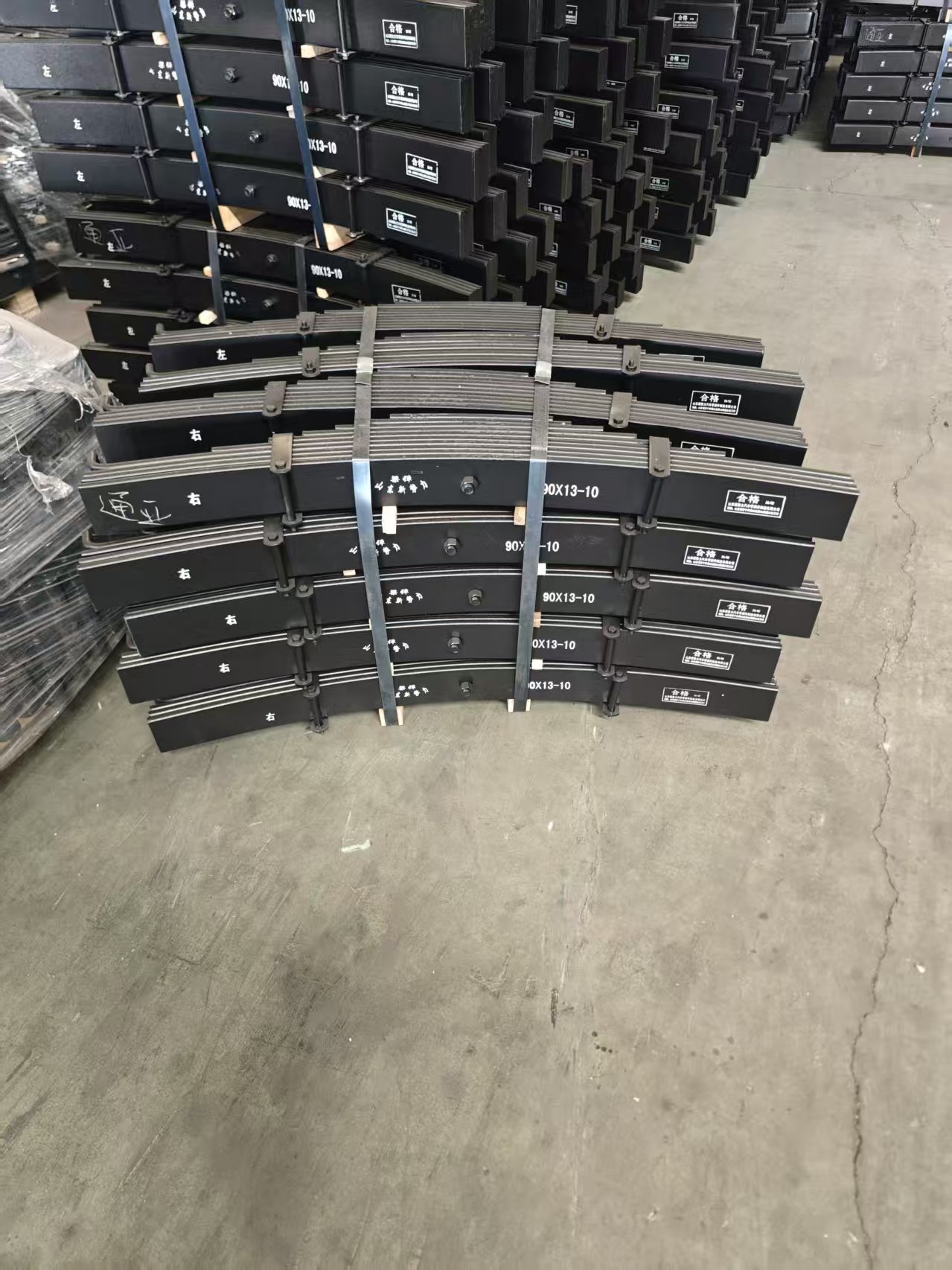

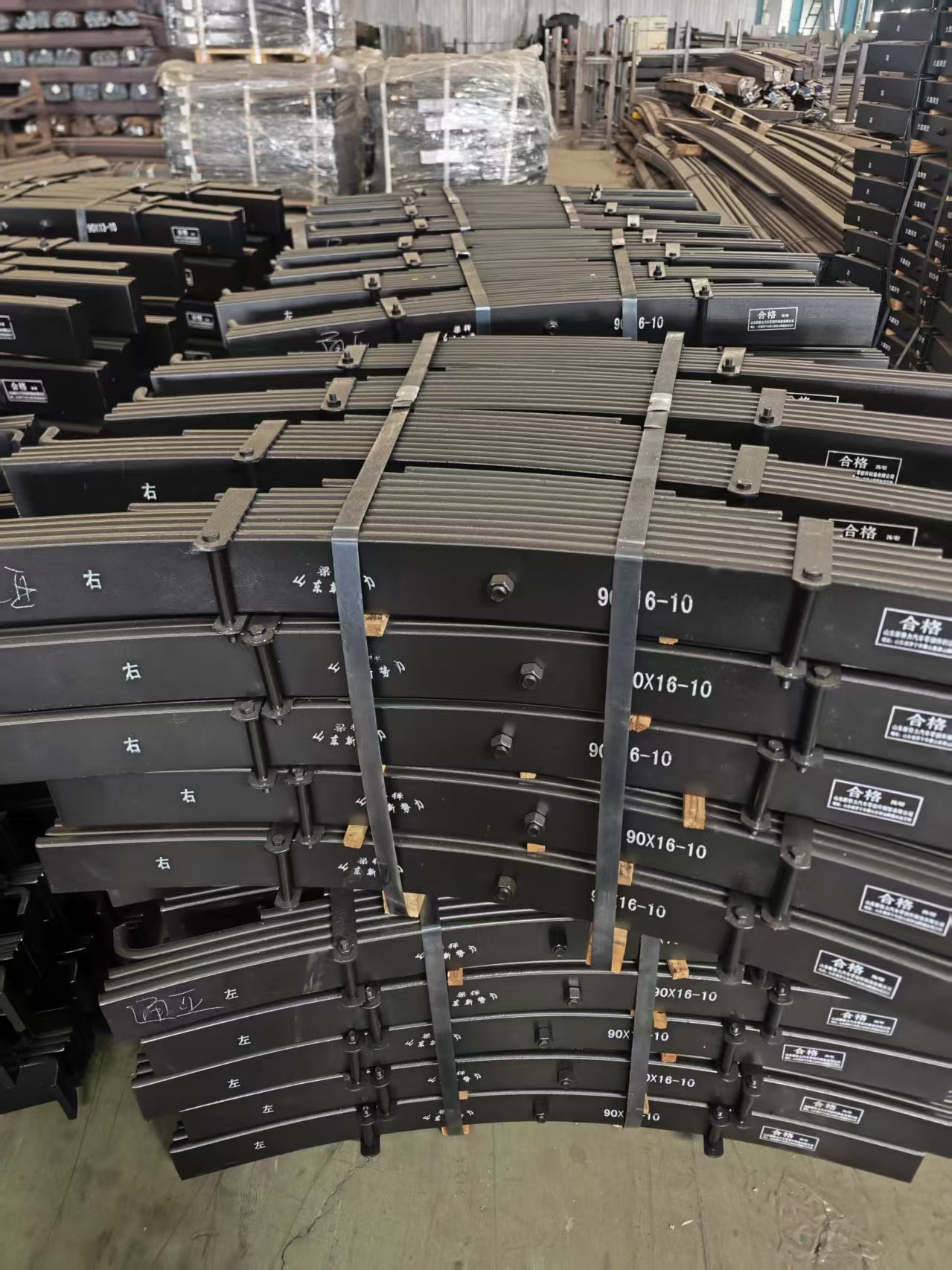

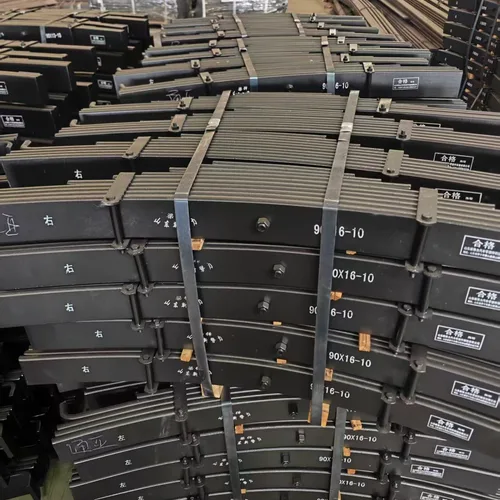

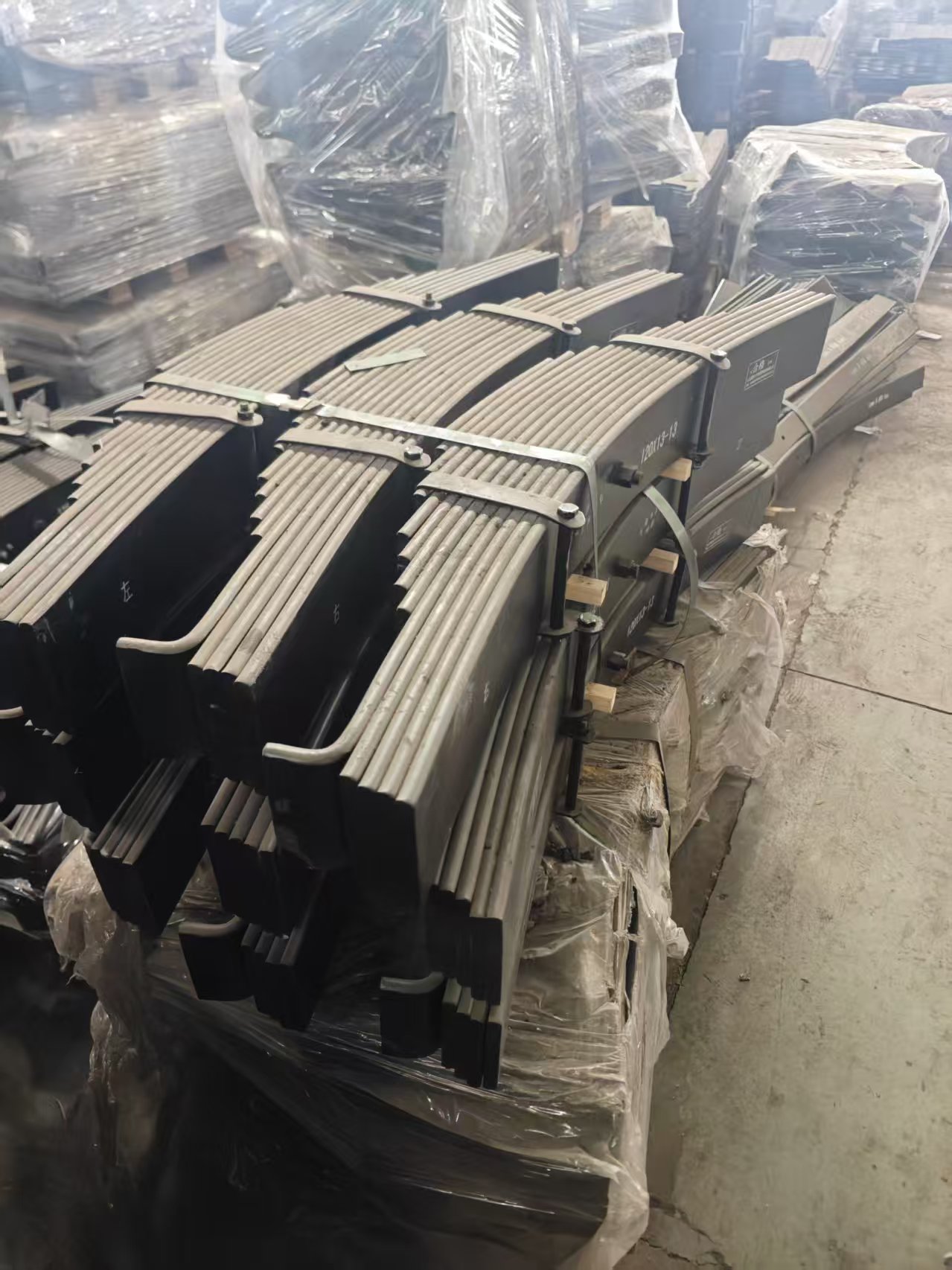

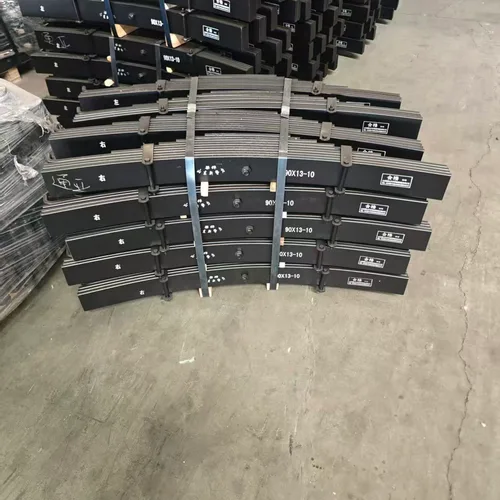

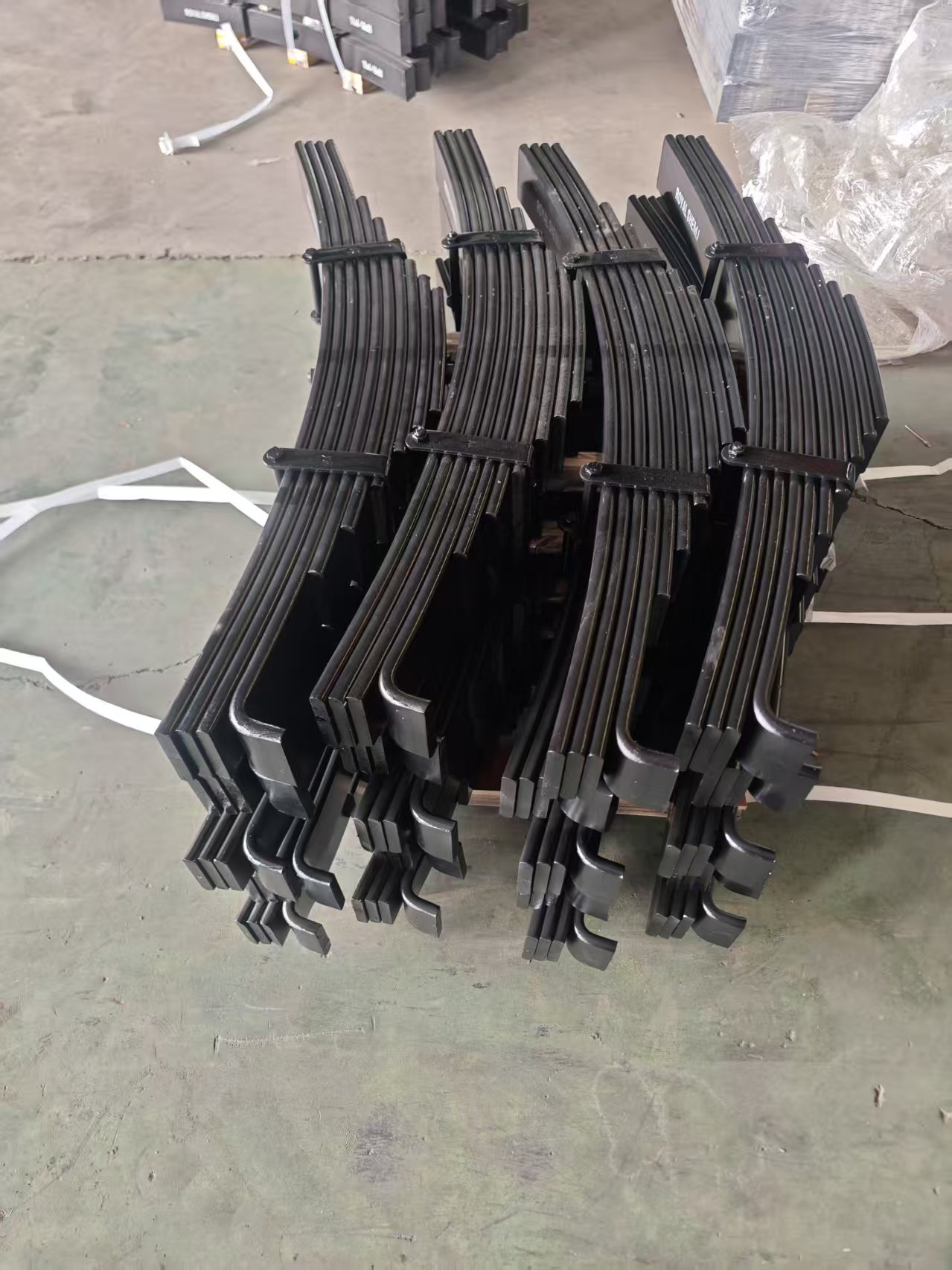

**Automotive Leaf Spring Manufacturing Process**
### *A State-of-the-Art Production System for Superior Durability and Performance*
---
### **Overview**
Our automotive leaf spring production facility represents the pinnacle of modern manufacturing excellence. Through **standardized operations**, **advanced CNC machinery**, **innovative engineering design**, and a **highly skilled technical workforce**, we achieve exceptional process control, **industry-leading yield rates (≥98%)**, and products renowned for their **extraordinary durability** and **extended service life**.
---

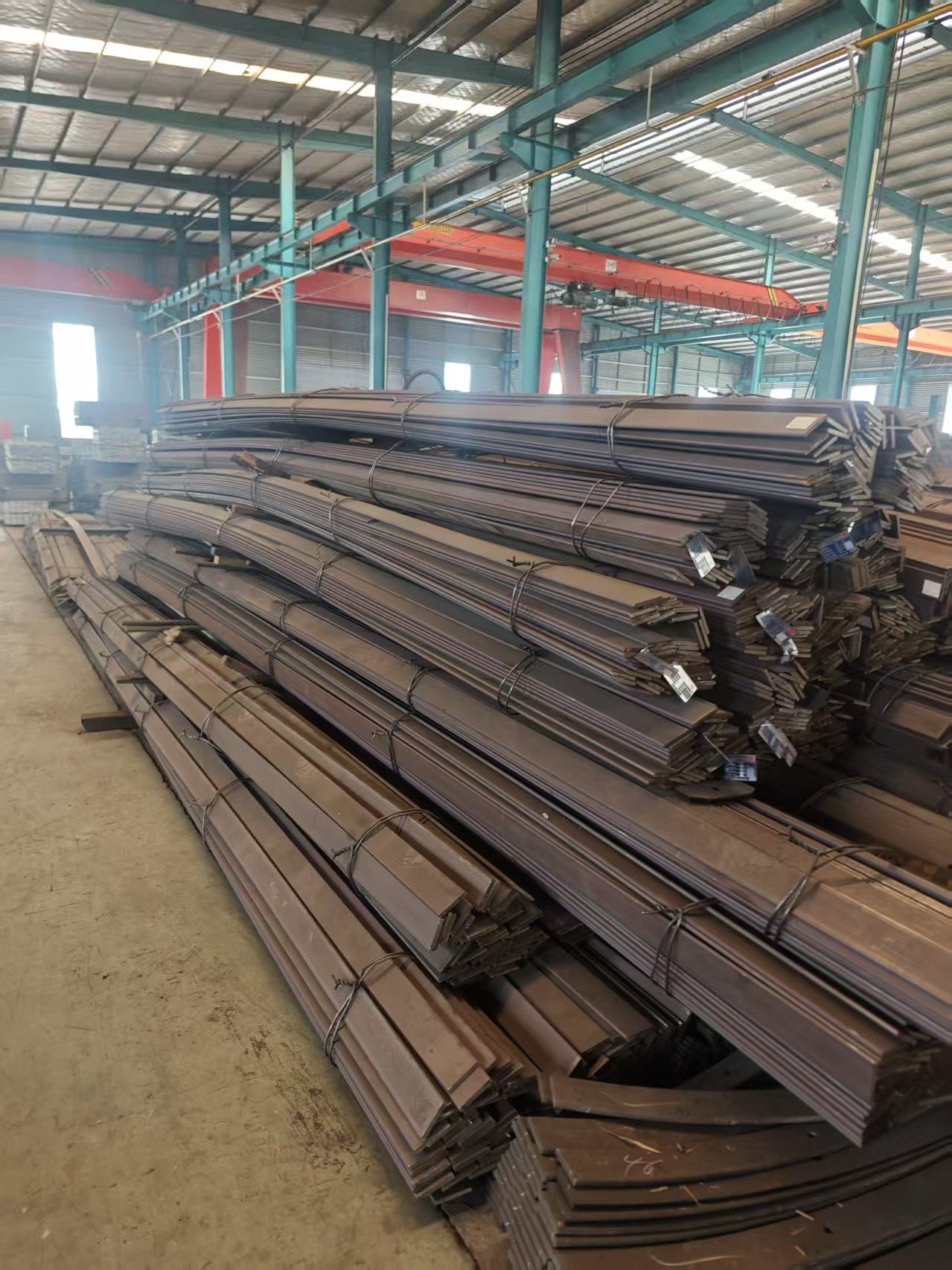

## **Stage 1: Raw Material Preparation & Quality Assurance**
### **Premium Material Selection**

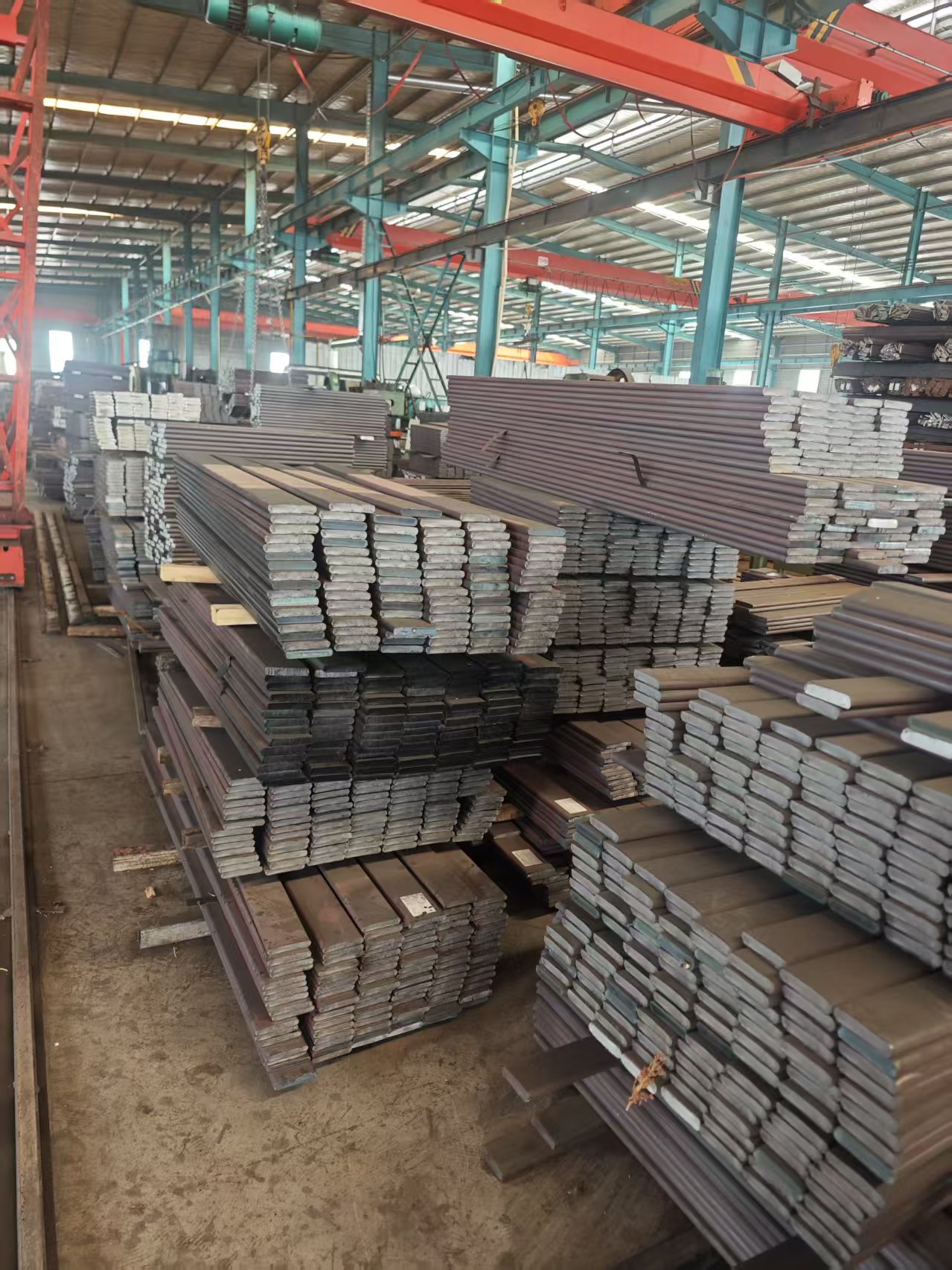

- **Grade**: High-performance alloy spring steel (60Si2MnA, 50CrVA, 55Cr3, SUP series)
- **Certification**: Full mill test reports with chemical composition and mechanical property verification
- **Incoming Inspection**: 100% ultrasonic testing for internal defects; hardness and tensile strength validation

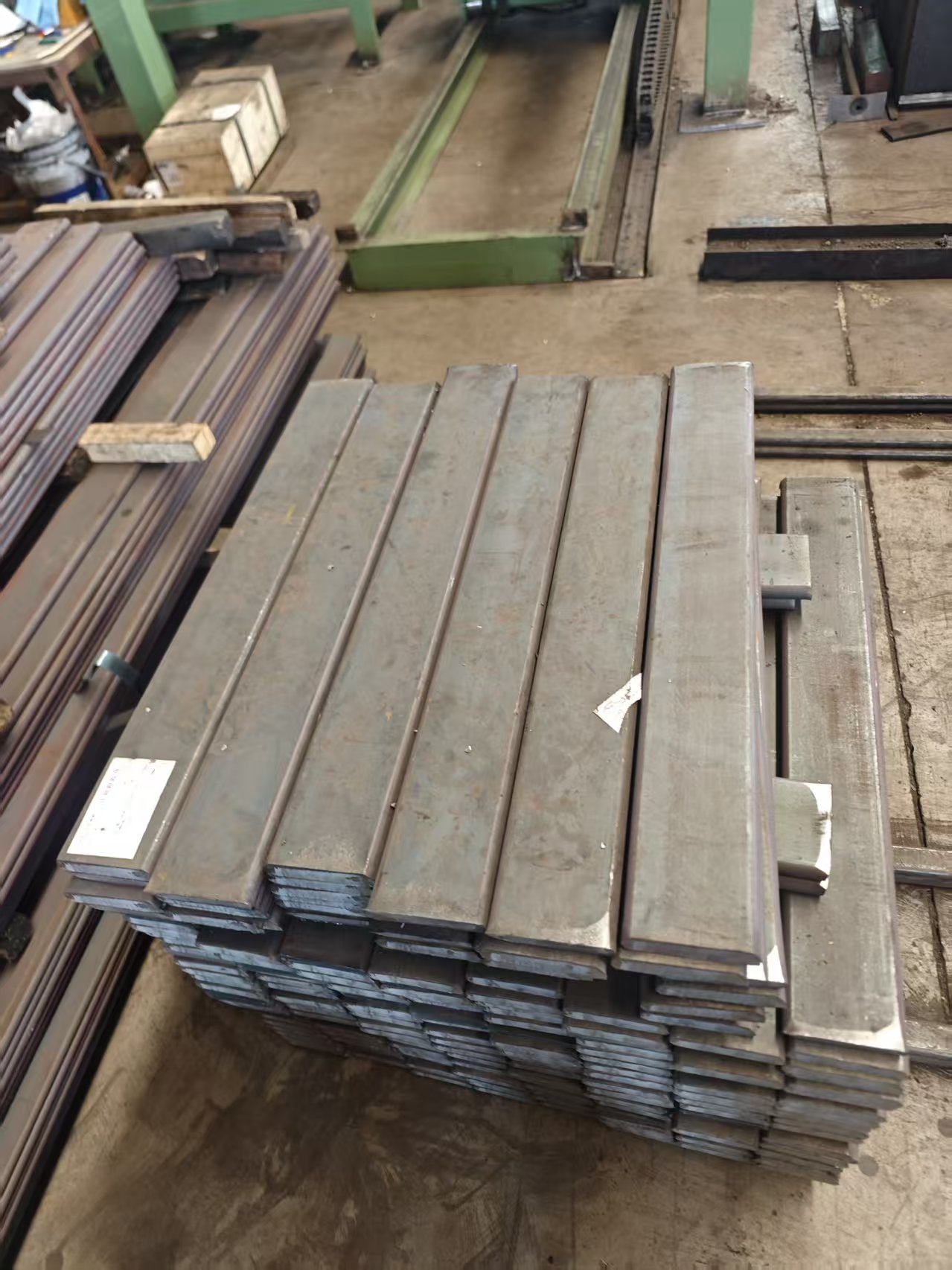

### **Precision Cutting**
- **Equipment**: CNC high-speed band saws with automatic feeding systems
- **Precision**: Length tolerance ±0.3mm; perpendicularity ≤0.5mm/m
- **End Preparation**: Automated end-thinning for subsequent eye-forming operations
---
## **Stage 2: Forming & Shaping Operations**
### **Straightening**
- **Equipment**: Precision hydraulic straightening presses with laser alignment systems
- **Standard**: Deflection ≤0.5mm per meter; ensures perfect flatness for downstream processing
### **CNC Punching & Drilling**
- **Equipment**: Multi-axis CNC turret punch presses and deep-hole drilling machines
- **Precision**: Hole diameter tolerance ±0.1mm; positional accuracy ±0.15mm
- **Features**: Automatic tool changers; real-time dimensional feedback
### **Hot Eye-Forming (Eye Rolling)**
- **Equipment**: Computer-controlled induction heating systems (1100°C ± 15°C) coupled with hydraulic eye-forming machines
- **Process Control**:
- Closed-loop temperature monitoring
- Precision die sets for consistent eye geometry
- Real-time dimensional inspection
- **Quality Metrics**: Eye inner diameter tolerance ±0.5mm; center distance ±1.0mm
### **Roll-Forming / Rolling**
- **Equipment**: CNC variable-profile rolling mills with automatic crown control
- **Advanced Features**:
- Multi-pass rolling with intermediate temperature compensation
- Real-time profile scanning and adaptive control
- Variable cross-section formation (parabolic thickness distribution)
- **Precision**: Arc height tolerance ±1.5mm; thickness variation ±0.2mm
---

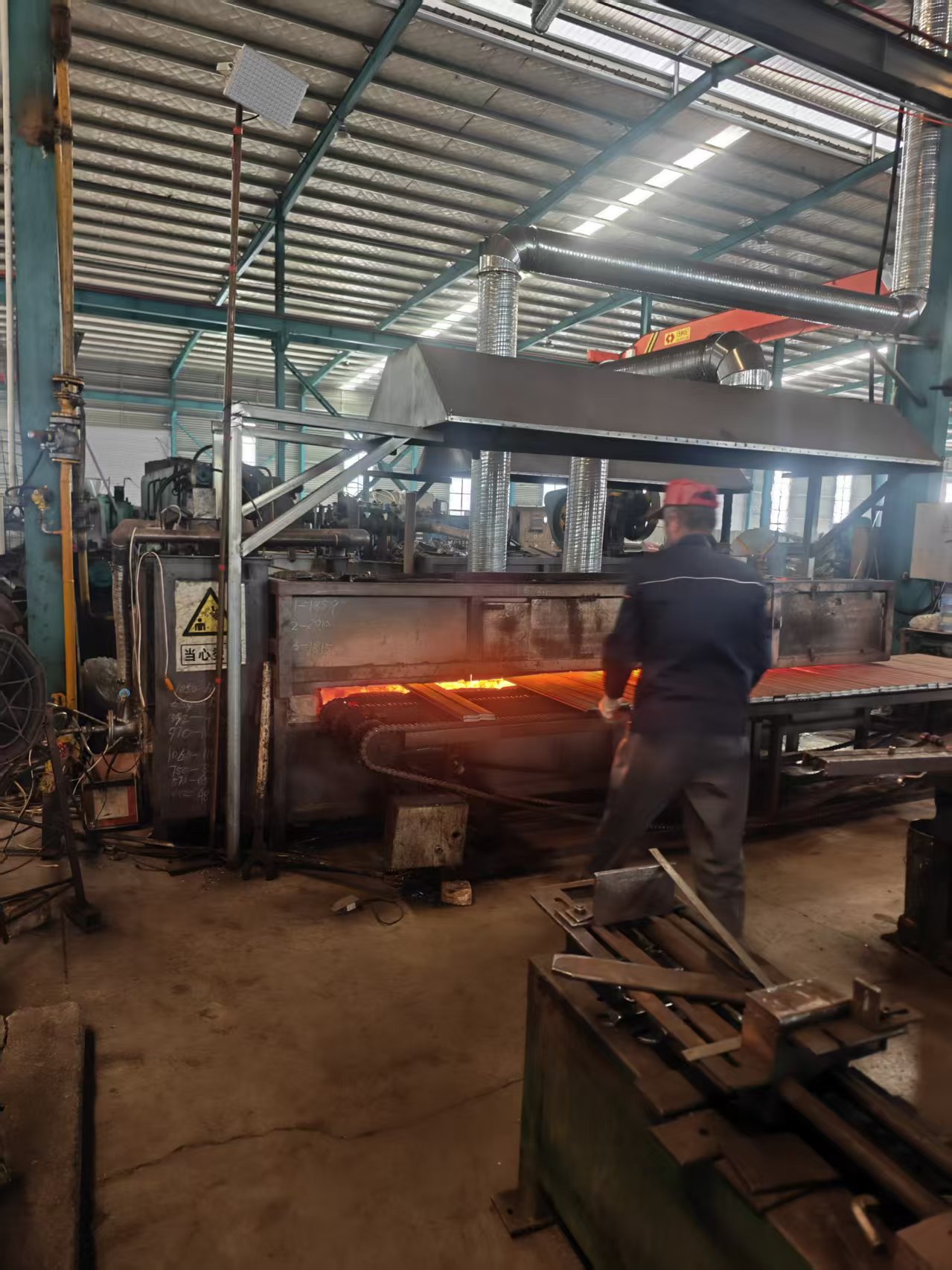

## **Stage 3: Heat Treatment (The Critical Core Process)**
### **Austenitizing & Quenching**
- **Equipment**: Fully automated, sealed quench furnaces with atmosphere control
- **Process Parameters**:
- Heating: 850°C ± 5°C with precise carbon potential control
- Soaking: Computer-optimized time based on material thickness
- Quenching: Polymer quenchants with controlled agitation for uniform cooling
- **Results**: Martensite content ≥90%; surface hardness 45-52 HRC
### **Tempering**
- **Equipment**: Continuous tempering furnaces with multi-zone temperature control
- **Precision**: Temperature uniformity ±3°C; time control ±30 seconds
- **Outcome**: Optimized tempered martensite structure; residual stress reduction ≥95%
---
## **Stage 4: Surface Engineering**
### **Shot Peening (Critical Durability Enhancement)**
- **Equipment**: CNC-controlled shot peening machines with robotic nozzle manipulation
- **Advanced Features**:
- Almen intensity monitoring and automatic adjustment
- 200%+ coverage guarantee for maximum fatigue life enhancement
- Dual-media capability (steel shot + ceramic beads for precision finishing)
- **Results**: Surface compressive residual stress ≥600 MPa; fatigue life improvement 3-5×

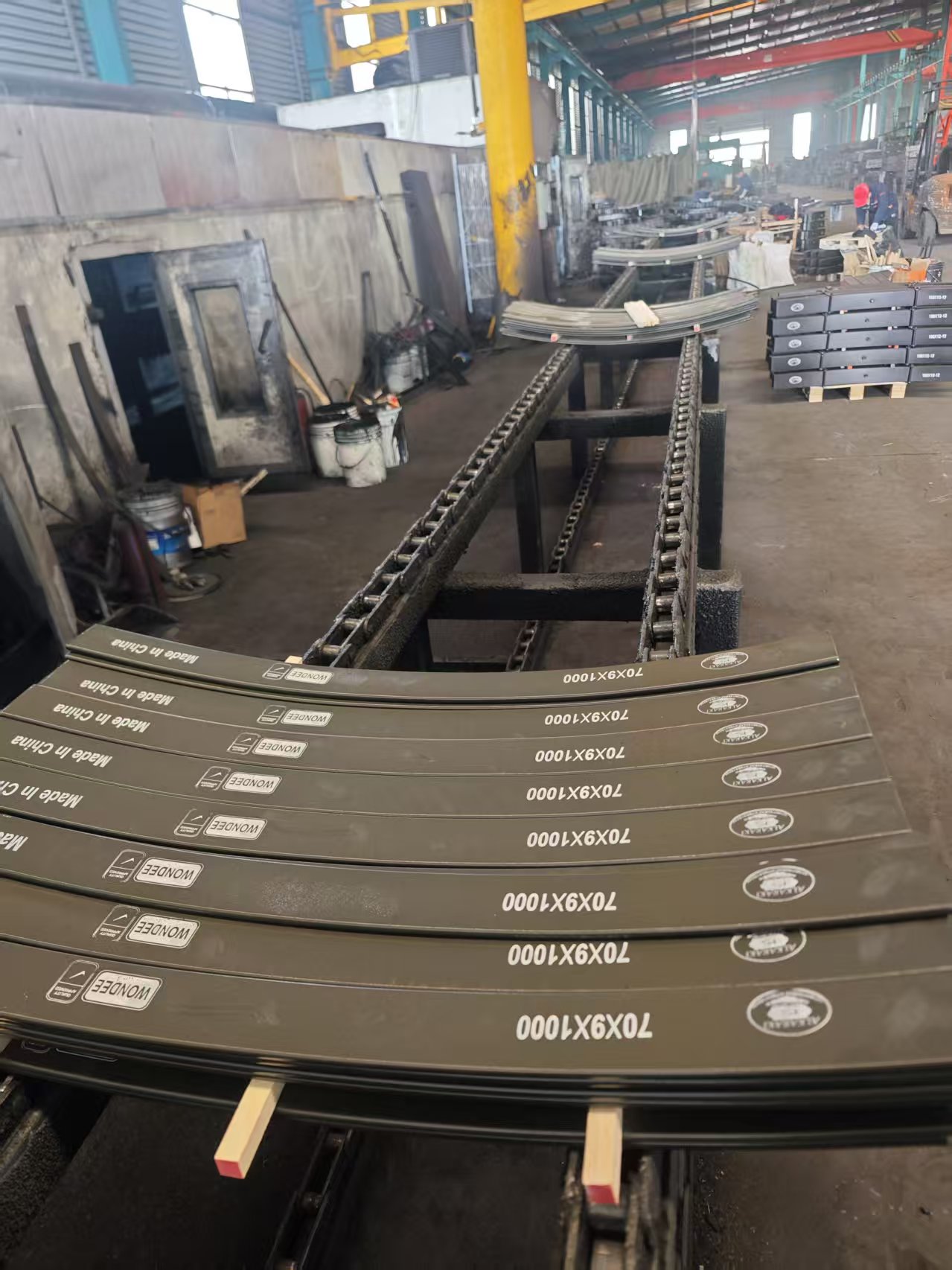

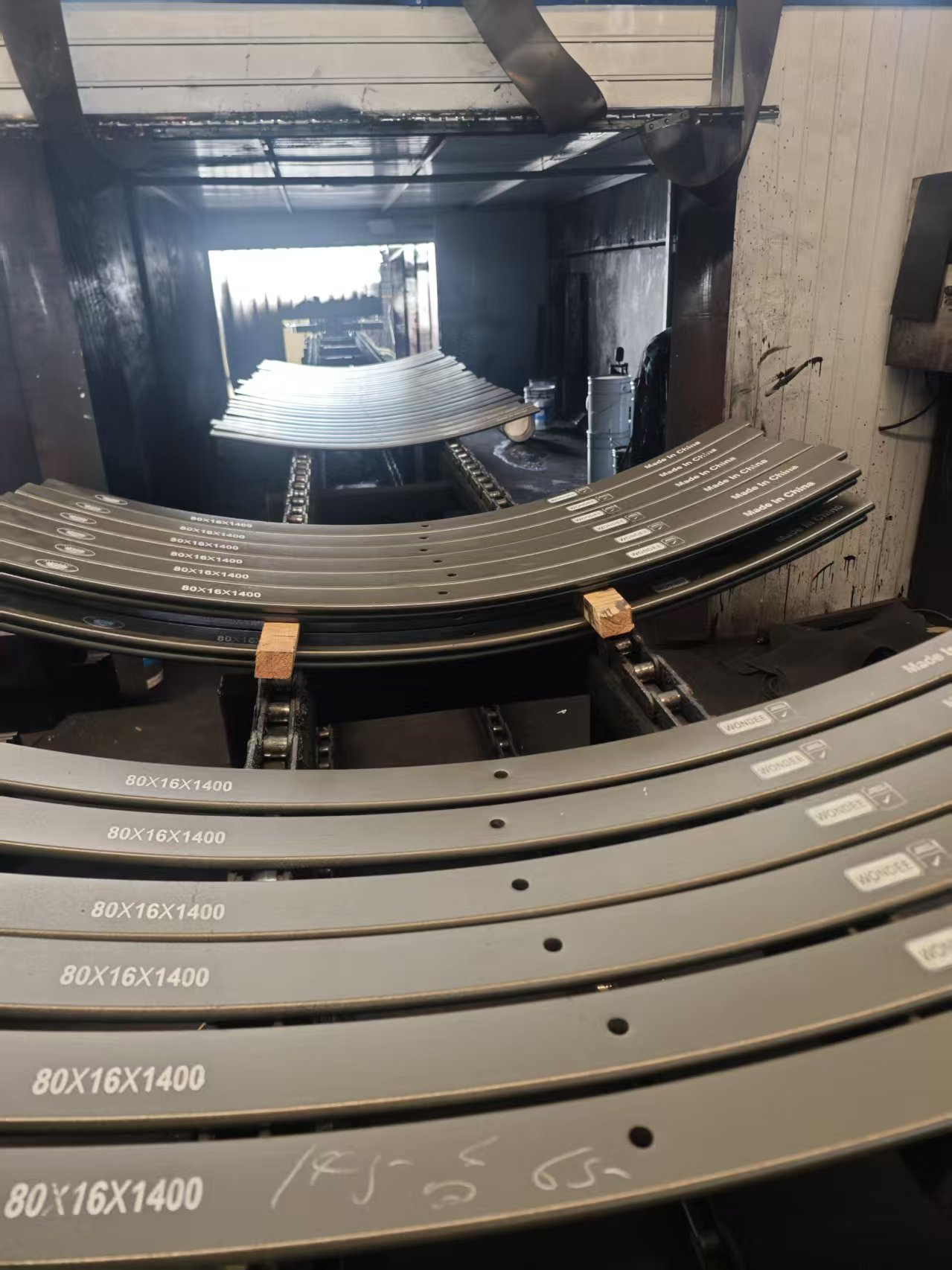

### **Advanced Surface Coating**
- **Process**: Cathodic electrophoretic deposition (E-coat) + powder coating
- **Specifications**:
- Coating thickness: 60-100μm
- Salt spray resistance: ≥1000 hours
- Impact resistance: ≥50 kg·cm
- **Environmental Control**: Zero-emission closed-loop systems
---
## **Stage 5: Precision Assembly & Pre-Setting**
### **Pre-Stressing (Pre-Setting)**
- **Equipment**: Computer-controlled hydraulic pre-setting presses with load-displacement monitoring
- **Process**:
- Application of 2-3× design load cycles
- Real-time force-deflection curve analysis
- Automatic correction for set height achievement
- **Benefit**: Establishes permanent positive camber; eliminates initial settling

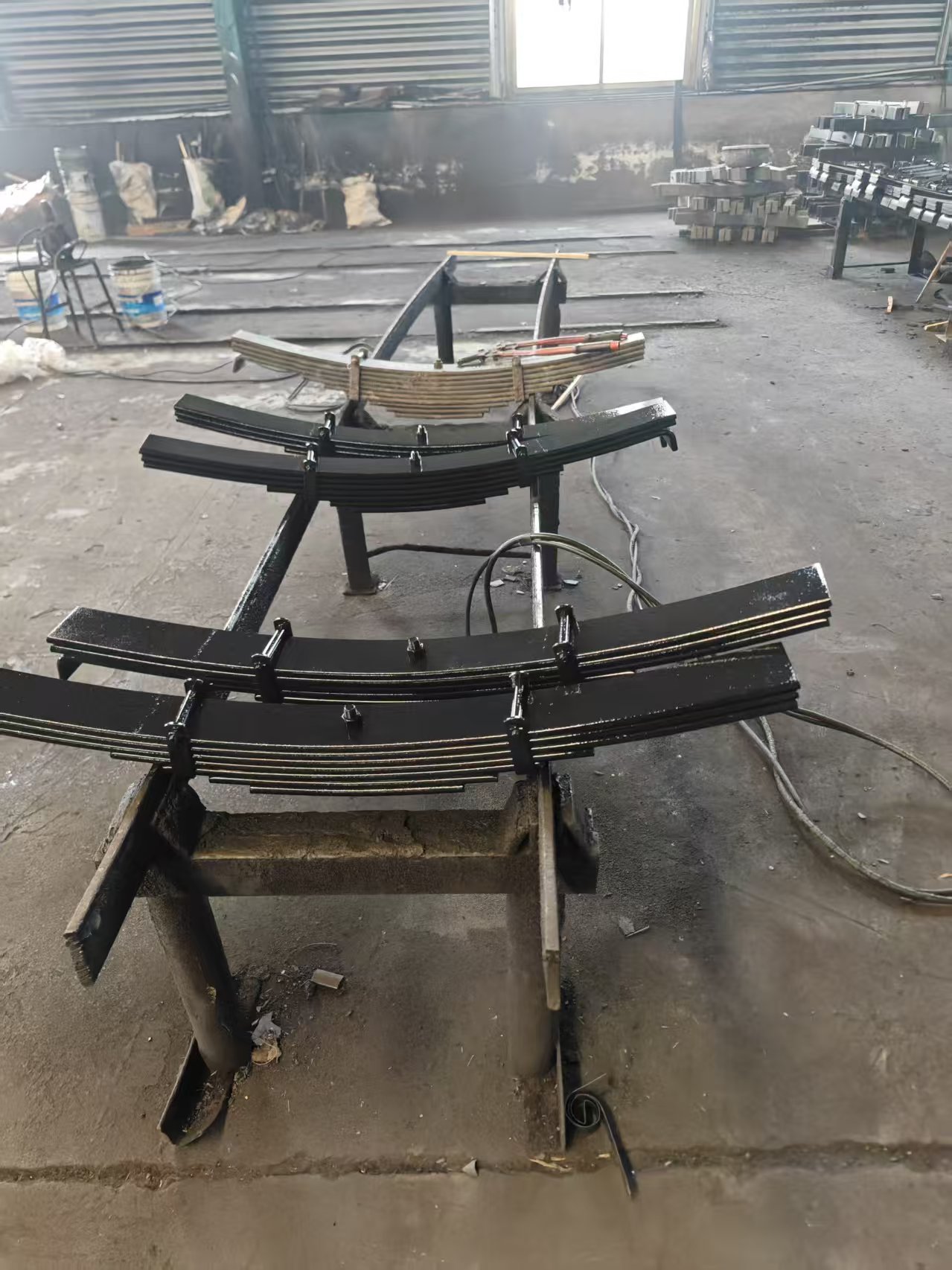

### **Automated Assembly**
- **Equipment**: Robotic assembly cells with vision-guided alignment
- **Process Control**:
- Automatic leaf sequencing and lubrication
- Torque-controlled center bolt tightening (±2% accuracy)
- Clip and accessory installation with force monitoring
- **Quality Assurance**: 100% load testing; automatic rejection of non-conforming assemblies
---
## **Stage 6: Final Inspection & Quality Validation**
### **Comprehensive Testing Protocol**
| Test Category | Method | Standard |
|--------------|--------|----------|
| **Dimensional** | 3D laser scanning | ±0.5mm overall tolerance |
| **Load-Deflection** | Servo-hydraulic test rigs | SAE J510, ISO 18137 |
| **Fatigue Life** | Electromagnetic resonance testers | ≥200,000 cycles at design load |
| **Surface Finish** | Profilometry | Ra ≤3.2μm |
| **Coating Integrity** | Eddy current + visual inspection | Zero defects |
### **Statistical Process Control (SPC)**
- Real-time data acquisition from all critical processes
- Cpk ≥1.67 for all key characteristics
- Full traceability via barcode/RFID system
---
## **Human Capital & Organizational Excellence**
### **Expert Design Team**
- **Advanced CAD/CAE**: Finite element analysis (FEA) for stress and fatigue prediction; multi-body dynamics simulation for ride comfort optimization
- **Material Science PhDs**: Leading alloy development and heat treatment innovation
- **Continuous Improvement**: Annual R&D investment ≥5% of revenue; 50+ active patents
### **Skilled Technical Workforce**
- **Certification**: All operators hold national vocational qualifications (Level 4+)
- **Training**: 120+ hours annual upskilling on advanced equipment and quality systems
- **Experience**: Average 12 years tenure; master craftsman mentorship programs
---
## **Key Performance Indicators**
| Metric | Industry Average | Our Facility |
|--------|------------------|--------------|
| **First-Pass Yield** | 92-95% | **≥98.5%** |
| **Customer PPM (Defects)** | 500-1000 | **<100** |
| **Fatigue Life** | Standard | **+40%** vs. OEM spec |
| **On-Time Delivery** | 90% | **98%** |
| **Warranty Claims** | 2-3% | **<0.5%** |
---
## **Conclusion**
Our automotive leaf spring manufacturing process exemplifies **manufacturing excellence** through:
- **Innovative engineering** (advanced materials, optimized designs)
- **Expert workforce** (continuously trained, highly experienced)
The result is a product with **exceptional durability**, **consistent quality**, and **extended service life**—delivering superior value to global automotive OEMs and aftermarket customers.

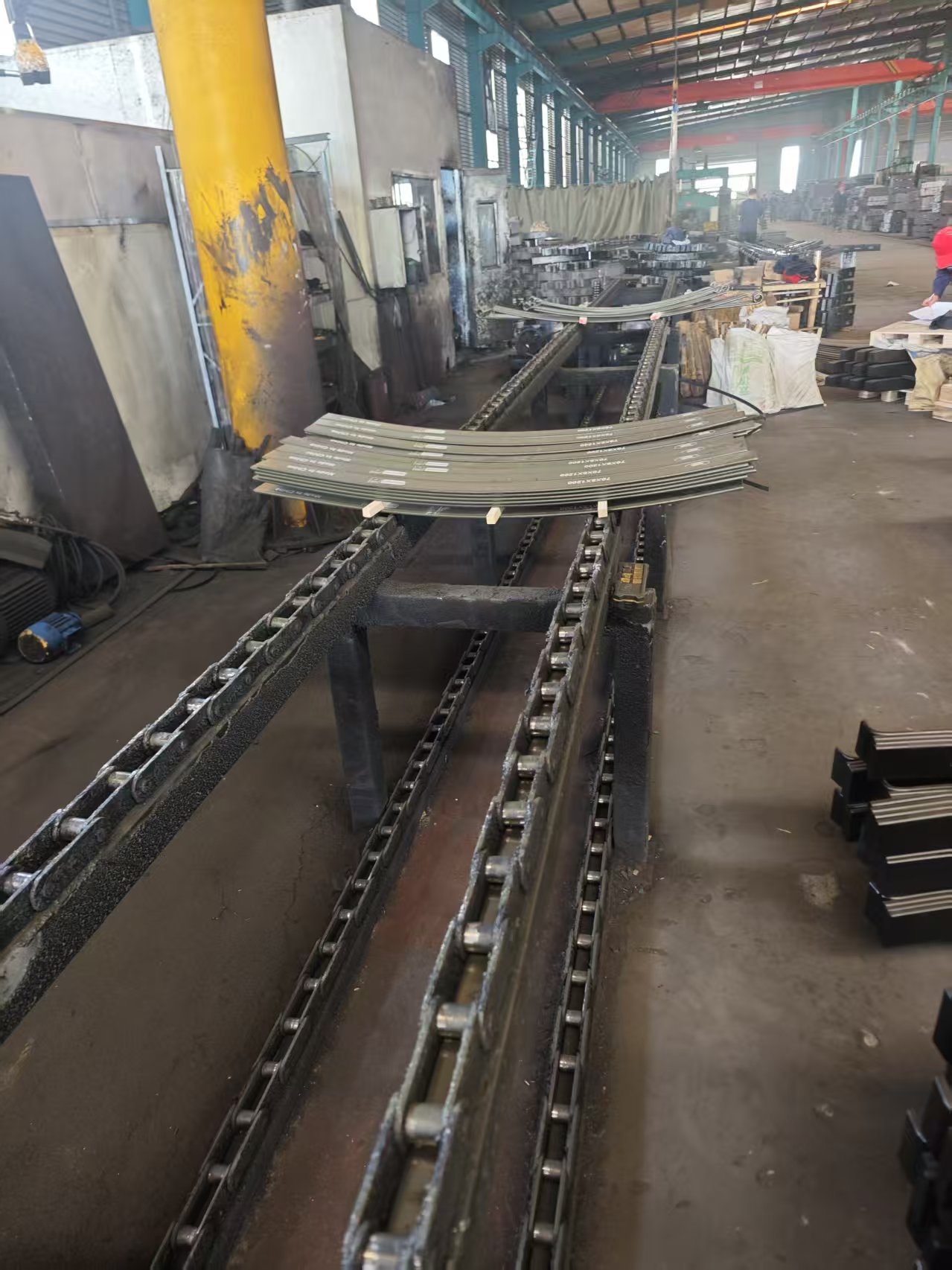

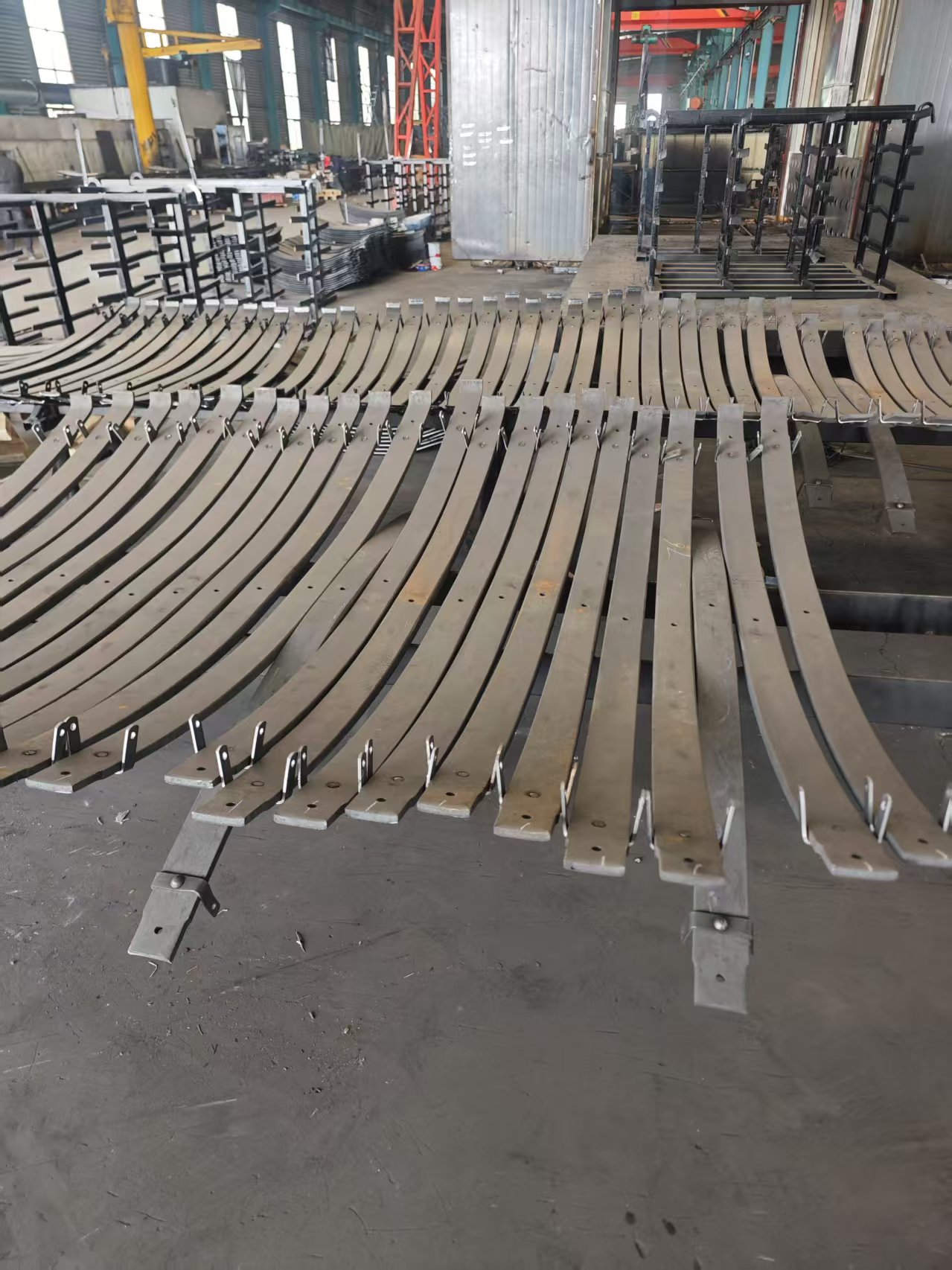

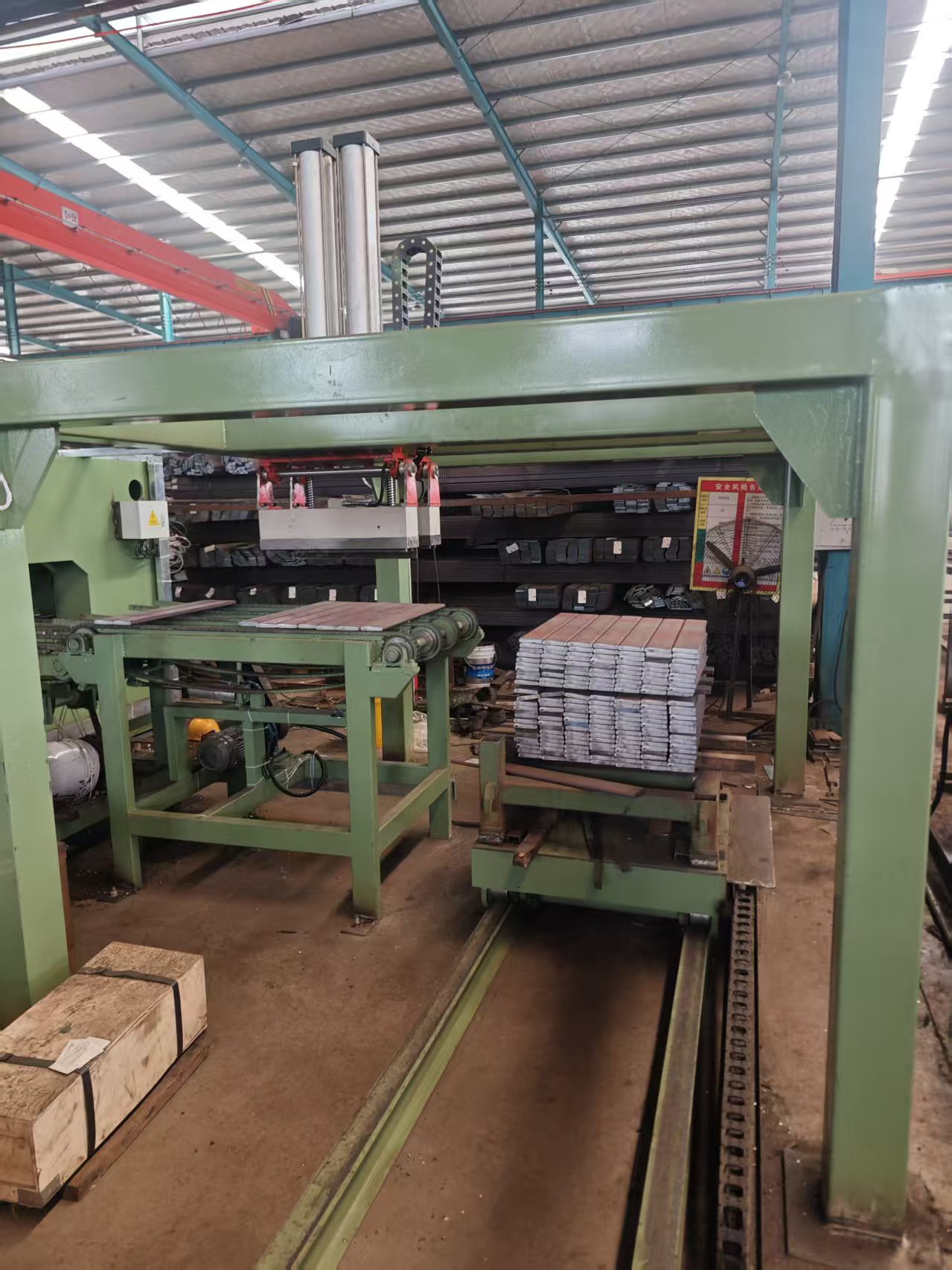

Production process:
