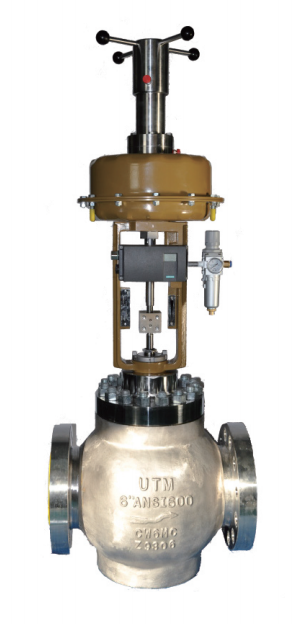

Oxygen Control Valve

Oxygen Control Valve is specially designed for oxygen medium, precisely regulating oxygen flow & pressure, widely used in air separation, petrochemical, metallurgy, chemical gas and oxygen pipeline systems.
$10000.00 - 1600000.00
Send Message Contact Supplier
Shandong Shengyuan Industrial Equipment Co., Ltd.

Shandong Shengyuan Industrial Equipment Co., Ltd.

Main Products: New support products, lithium battery monorail hoist, mining support equipment, hydraulic power machinery and components, alloy castings, valves, hydraulic motor
View Supplier
Year Established Established in 1997
Main Products New support products, lithium battery monorail hoist, mining support equipment, hydraulic power machinery and components, alloy castings, valves, hydraulic motor
Employees 101-500 People
Factory Area > 50,000 m²
Annual Revenue Above US$50 Million
Main Markets Southeast Asia / Middle East & North Africa
Details
Trade Information
Our oxygen control valve is specially designed for pure oxygen medium. All components undergo strict oil-free degreasing treatment to eliminate oxygen flammable risks, suitable for accurate flow and pressure regulation in cryogenic, high-temperature and high pressure-difference working conditions.

It adopts top & bottom double-guided trim, with the lower guide under the valve seat. This structure effectively lowers vibration and component deformation triggered by oxygen under large pressure drop. The valve is equipped with bidirectional V-port sealing to prevent backpressure.

We provide multiple structural types for different working conditions: high-pressure single-seat type, parabolic balanced type and multi-hole perforated low-noise type. The two-stage perforated pressure-reducing trim has passed professional flow test verification.

It is widely used in air separation equipment, petrochemical industry, metallurgy, coal chemical industry and oxygen pipeline transmission systems.

Technical Parameters

Nominal Diameter: DN15~DN400 (1/2"~16")
Nominal Pressure: PN20~PN420 / ANSI Class 150~2500
Applicable Temperature: -196℃ ~ 530℃
MOQ
1 Pieces
Lead Time
69-90 days
Supply Ability
50000 Pieces per Year
  • Oxygen Control Valve

Description

Our oxygen control valve is specially designed for pure oxygen medium. All components undergo strict oil-free degreasing treatment to eliminate oxygen flammable risks, suitable for accurate flow and pressure regulation in cryogenic, high-temperature and high pressure-difference working conditions.

It adopts top & bottom double-guided trim, with the lower guide under the valve seat. This structure effectively lowers vibration and component deformation triggered by oxygen under large pressure drop. The valve is equipped with bidirectional V-port sealing to prevent backpressure.

We provide multiple structural types for different working conditions: high-pressure single-seat type, parabolic balanced type and multi-hole perforated low-noise type. The two-stage perforated pressure-reducing trim has passed professional flow test verification.

It is widely used in air separation equipment, petrochemical industry, metallurgy, coal chemical industry and oxygen pipeline transmission systems.

Technical Parameters

Nominal Diameter: DN15~DN400 (1/2"~16")
Nominal Pressure: PN20~PN420 / ANSI Class 150~2500
Applicable Temperature: -196℃ ~ 530℃
