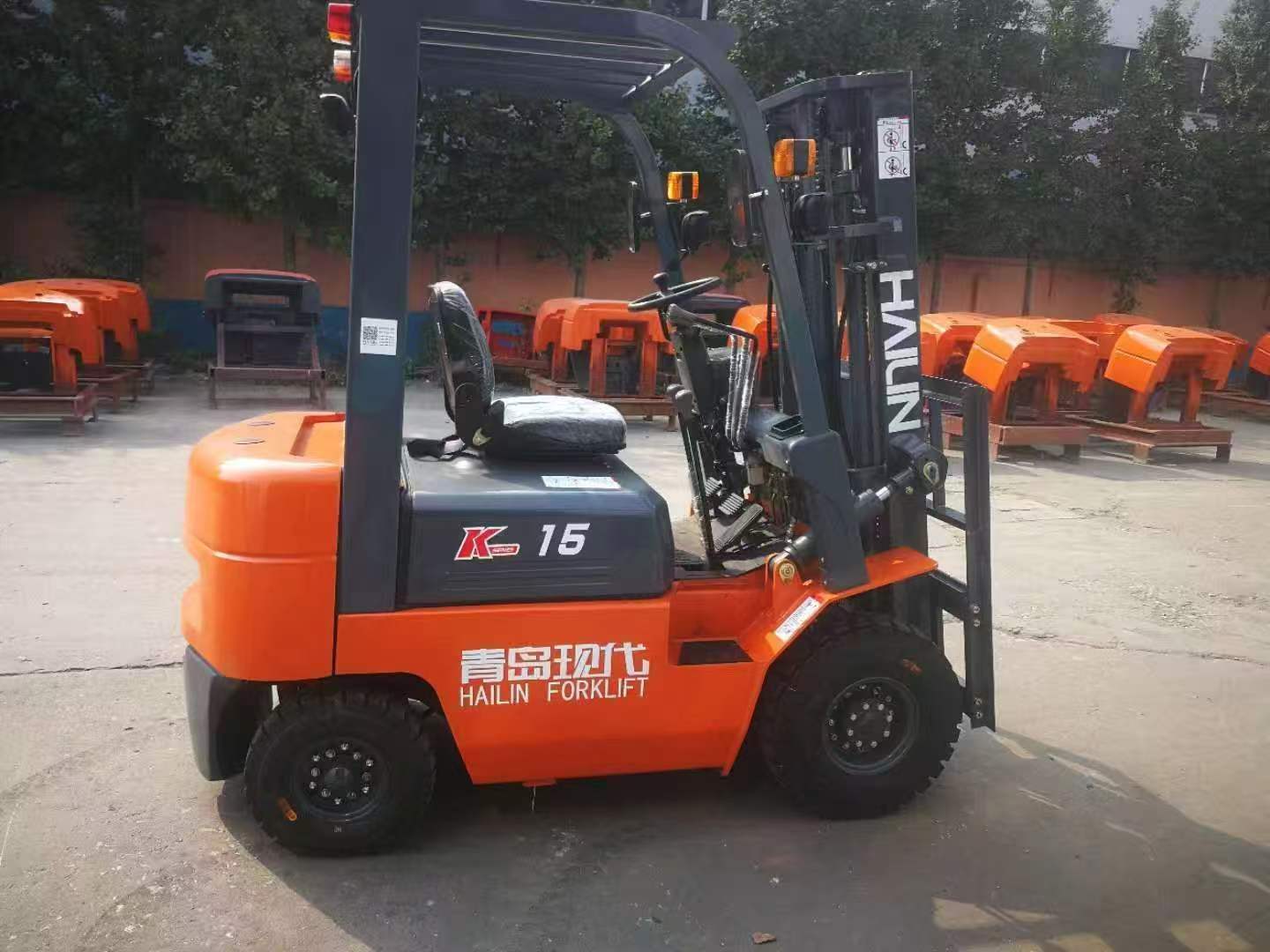

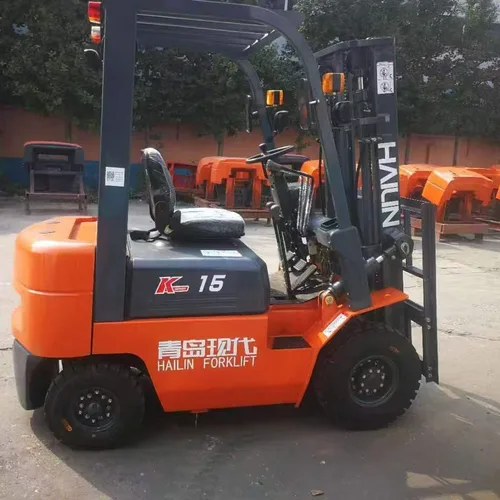

The Qingdao Hailin CPC1.5K 1.5-ton internal combustion counterbalance forklift is equipped with 4N23G31 diesel engine and mechanical transmission with 2 forward and 2 reverse gears. It has a rated load of 1500kg, standard mast with maximum lifting height of 3m, and 6° forward / 12° backward mast tilt angle, suitable for handling and stacking of various pallet goods. With a full-load driving speed of 13.5km/h and maximum gradeability of 20%, it delivers strong power with low fuel consumption, and can easily handle factory ramps and long-distance handling. The minimum turning radius is only 1955mm, with compact structure, it can flexibly turn in narrow aisles, suitable for small and medium-sized warehouses, factory workshops, ports and other scenarios. The hydraulic system working pressure is 17.5MPa, with a full-load lifting speed of 590mm/s for high operating efficiency. The forklift has reasonable counterweight for excellent driving stability, and is easy to operate. It is an efficient equipment for medium-light cargo handling, priced at ¥41000 RMB, with sufficient stock, supporting nationwide delivery and foreign trade export.
Brand
Qingdao Hailin Forklift
Power Type
Diesel Internal Combustion
Rated Load Capacity
1500 kg (1.5 Ton)
Max Lifting Height (with Backrest)
3000 mm
Mast Forward/Backward Tilt Angle
6° / 12°
Min Turning Radius
1955 mm
Min Right Angle Stacking Width
2052 mm
Min Ground Clearance
110 mm
Overhead Guard Height
425 mm
Max Travel Speed (Full Load)
13.5 km/h
Max Lifting Speed (Full Load)
590 mm/s
Max Traction Force (Full Load)
12.3 KN
Overall Length (with/without Forks)
3260 mm / 2205 mm
Lowered Mast Height
1865 mm
Tyre Size
Front 6.50-10-10PR / Rear 5.00-8-8PR
Wheel Track (Front/Rear)
890 mm / 920 mm
Battery Specification
12V / 80Ah
Engine Rated Power
30kW/2600rpm
Engine Rated Torque
131Nm/1700-1900rpm
Transmission Type/Gear
Mechanical Transmission 2 Forward/2 Reverse
Hydraulic System Working Pressure
17.5 MPa
