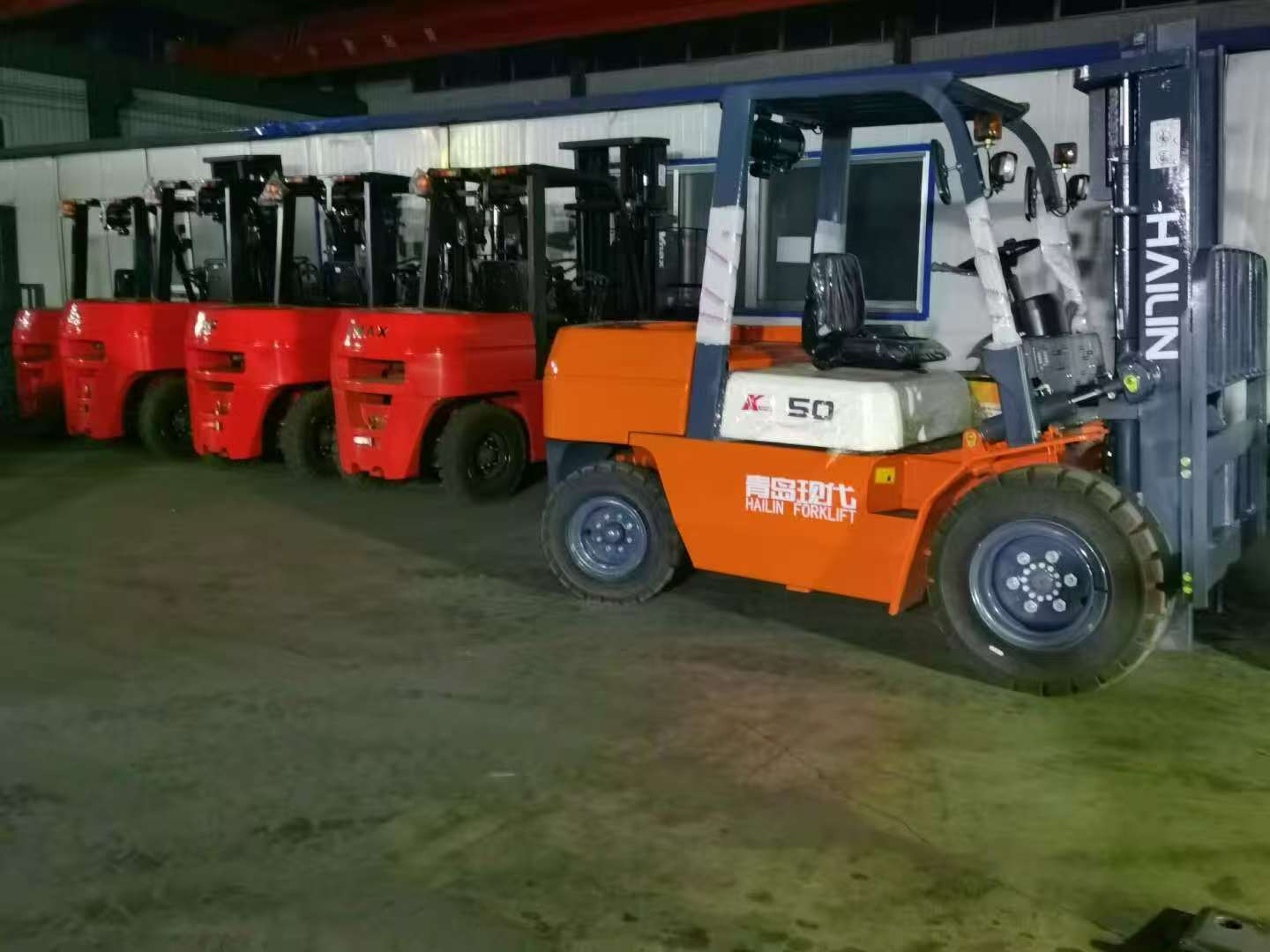

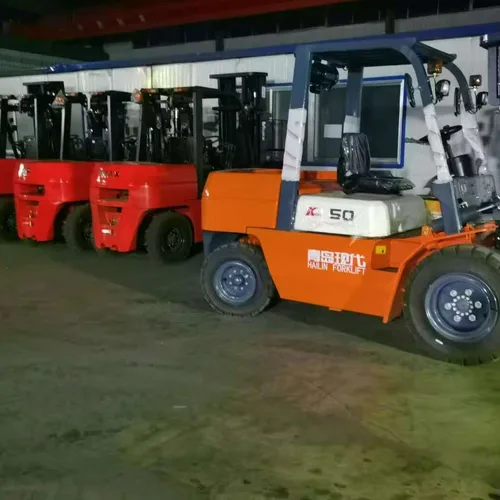

The Qingdao Hailin CPC1.5K 1.5-ton internal combustion counterbalance forklift is equipped with Xinchai diesel engine and mechanical transmission with 2 forward and 2 reverse gears. It has a rated load of 1500kg, 2-stage full free lift mast with maximum lifting height of 4.25m, and 6° forward / 12° backward mast tilt angle, suitable for handling and stacking of various pallet goods. With a full-load driving speed of 22km/h and maximum gradeability of 20%, it delivers strong power with low fuel consumption, and can easily handle factory ramps and long-distance handling. The minimum turning radius is only 2680mm, with compact structure, it can flexibly turn in narrow aisles, suitable for small and medium-sized warehouses, factory workshops, ports and other scenarios. The solid tires are wear-resistant and durable, the hydraulic system has sensitive response with a full-load lifting speed of 330mm/s for high operating efficiency. The forklift has reasonable counterweight for excellent driving stability, and is easy to operate. It is an efficient equipment for medium-light cargo handling, priced at ¥41000 RMB, with sufficient stock, supporting nationwide delivery and foreign trade export.
Brand
Qingdao Hailin Forklift
Rated Load Capacity
1500 kg (1.5 Ton)
Load Center Distance
500 mm
Power Type
Diesel Internal Combustion
Engine Model
Xinchai 4D32 / Xinchai 4DX41 (Optional)
Engine Rated Power
48kW/2300rpm (4D32) / 36.8kW/2500rpm (4DX41)
Transmission Type
Mechanical Transmission
Gear
2 Forward / 2 Reverse
Mast Type
2-Stage Full Free Lift Mast
Max Lifting Height (with Backrest)
4250 mm
Lowered Mast Height
2185 mm
Mast Forward/Backward Tilt Angle
6° / 12°
Overhead Guard Height
2160 mm
Max Travel Speed (Full Load)
22 km/h
Max Lifting Speed (Full Load)
330 mm/s
Max Traction Force (Full Load)
15.5 KN
Overall Length (without Forks)
2975 mm
Min Turning Radius
2680 mm
Min Ground Clearance
135 mm
Front Tyre Size
300-15-18PR
Rear Tyre Size
700-12-10PR
Wheel Track (Front/Rear)
1000 mm / 970 mm
Battery Specification
12V / 80Ah
