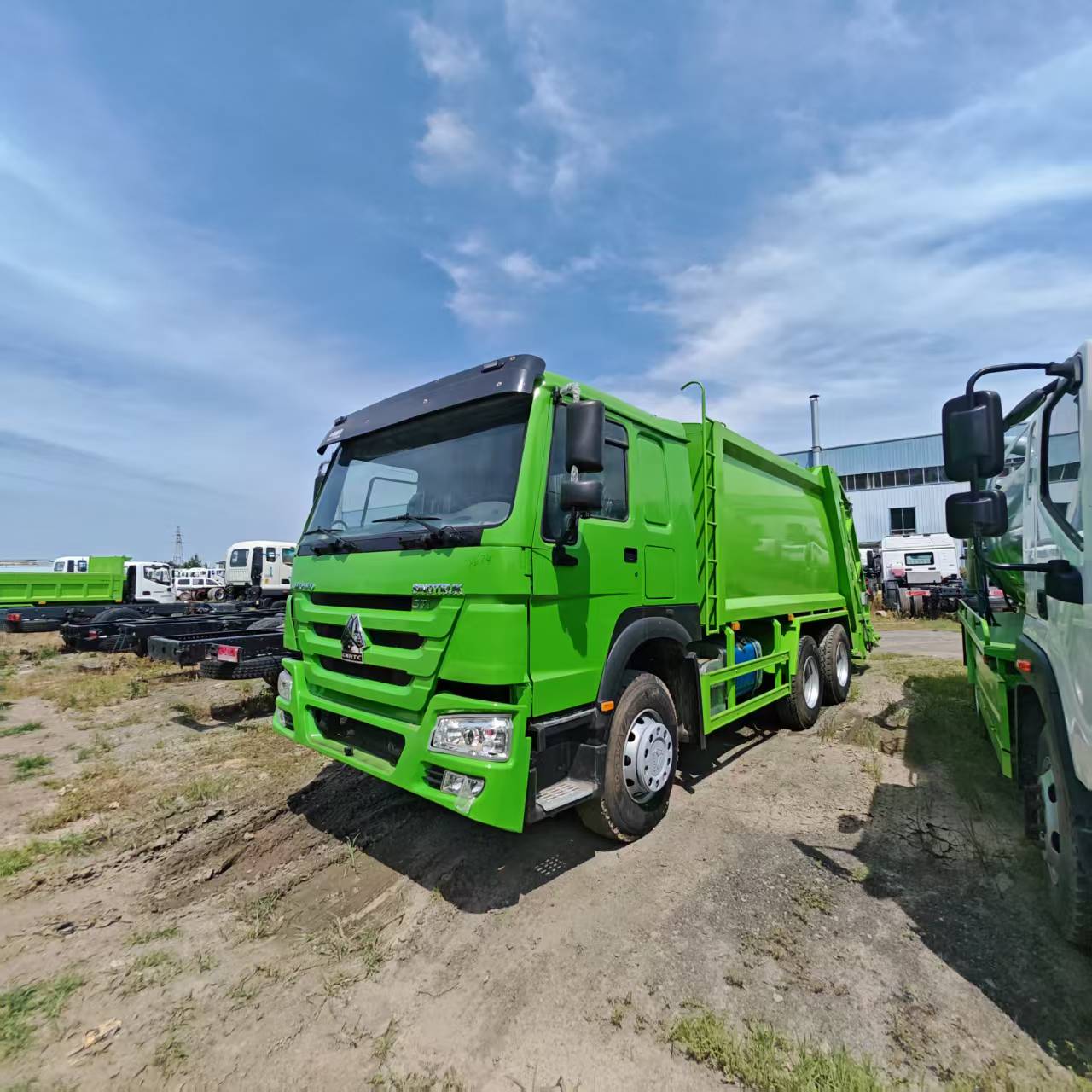

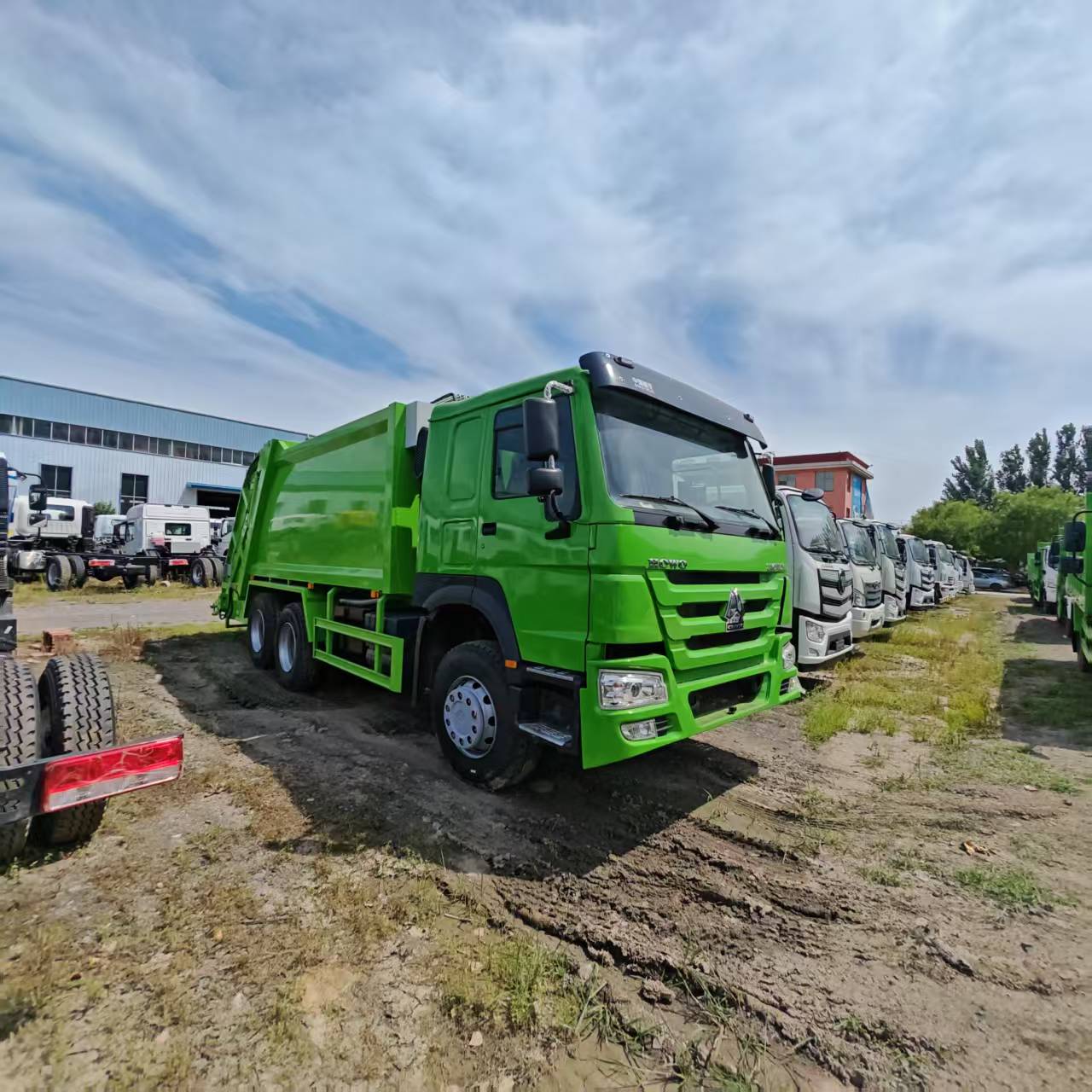

1. Heavy-duty HOWO 6×4 Tri-axle Chassis, Long Service Life
Equipped with SINOTRUK HOWO ZZ1257N4341W 6×4 sanitation special chassis and wide HW70 cabin with wide view for comfortable driving. The WD615.47 engine outputs 371HP and peak torque 1590N·m, providing powerful climbing and starting performance under full load. Matched with HW19710 10-speed gearbox and dual HC16 16-ton drive axles, the vehicle bears heavy load stably for long-distance waste transportation between city and countryside. 300L large fuel tank cuts refueling frequency.

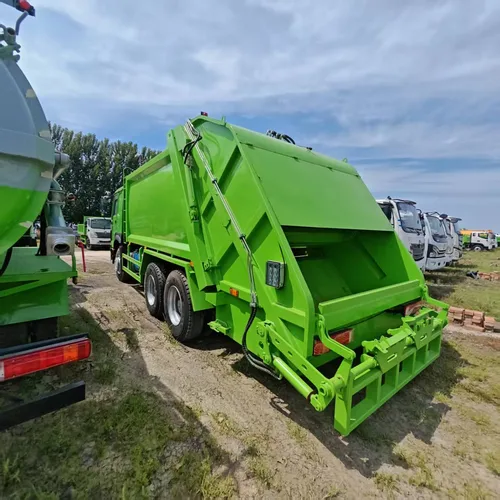

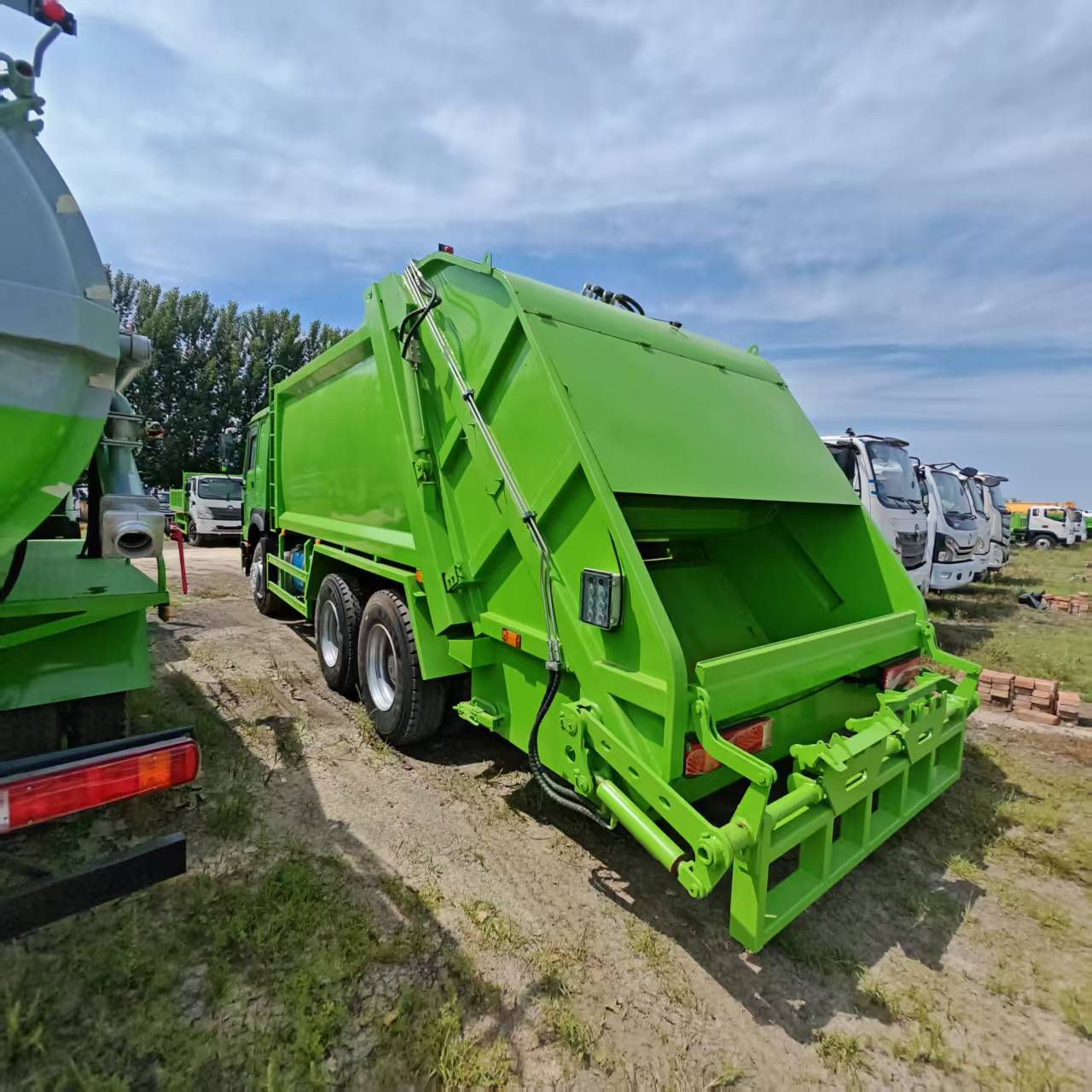

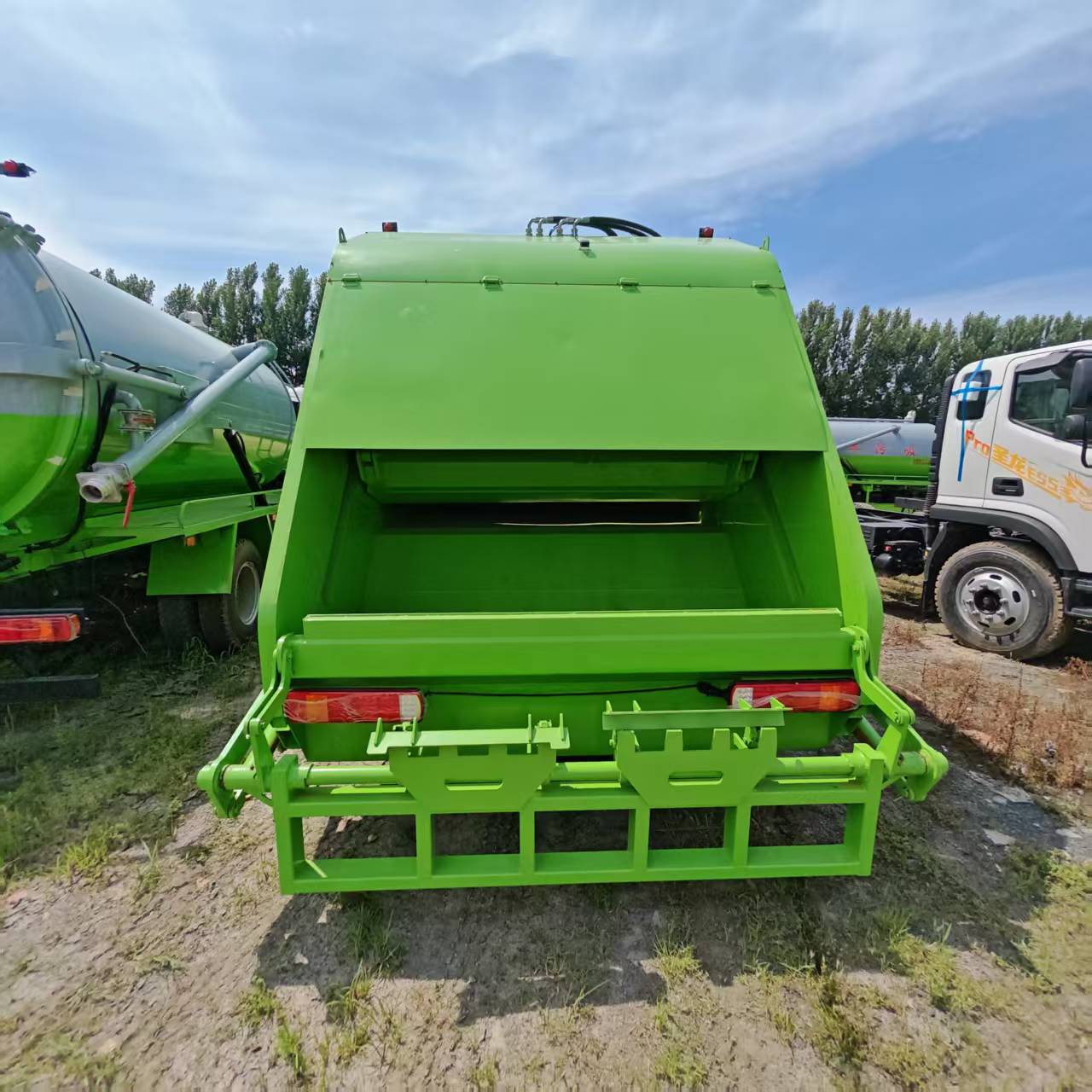

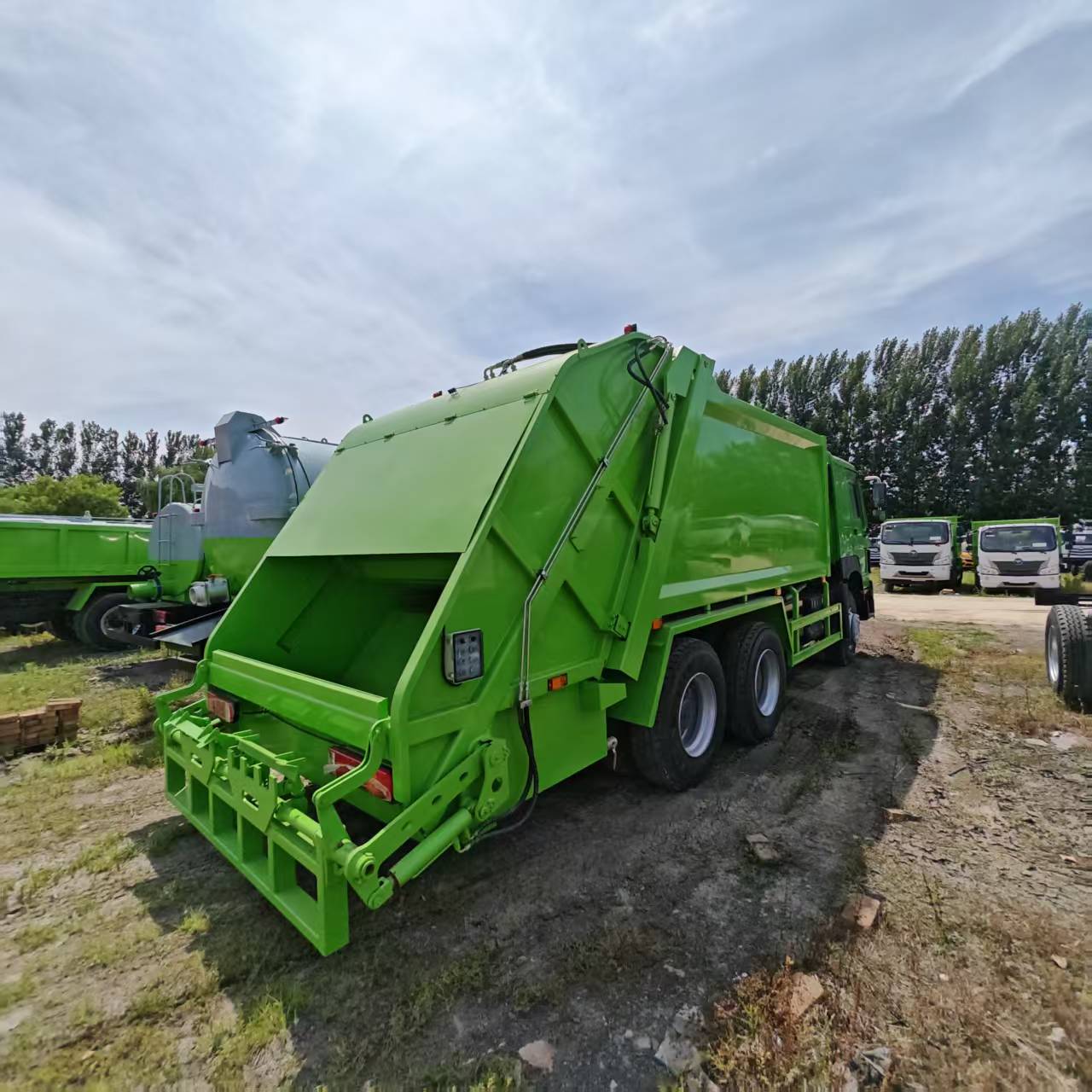

2. 20-25m³ Large Capacity Heavy Compactor Tank, High Loading Efficiency
The compactor bin is made of thickened wear-resistant carbon steel: 4mm side plate & 5mm bottom plate, anti-impact and scratch-proof. Optional volume 20/22/25 cubic meters, with 2.5m³ rear filler bin for bulk waste collection. Hydraulic compression force reaches over 12 tons with compaction ratio above 1:3, which greatly improves single trip loading capacity and reduces transportation trips, fuel and labor cost.
3. Fully Sealed Anti-leakage Design, No Secondary Environmental Pollution
Multi-layer rubber sealing strips installed between tank and rear filler, built-in large sewage storage tank to collect all waste leachate. No liquid dripping or odor leakage during transit, fully meet municipal environmental protection standards, suitable for domestic waste and kitchen waste mixed transportation.
4. Dual Electric & Manual Safe Control System
Integrated electric control panel inside cabin realizes one-click automatic filling, compression and unloading. Independent emergency manual operation box at rear for maintenance and hydraulic fault handling. Multiple safety protection devices including anti-pinch, hydraulic overload relief and emergency stop button prevent equipment damage caused by foreign object jamming and protect sanitation workers.
5. Optimized Parameters for Large Sanitation Projects
Overall length 9.98m, total weight 25 tons and max speed 90km/h balance loading capacity and road passing efficiency. Min turning radius 21.6m fits urban main roads, large residential communities, industrial parks and county towns, ideal for municipal sanitation groups, large property outsourcing and county-wide sanitation integrated procurement.
6. Application Scenarios
Domestic waste collection for downtown of large & medium cities, county-wide sanitation integrated projects, industrial parks, universities, general hospitals, tourist scenic spots and towns in suburban areas.
