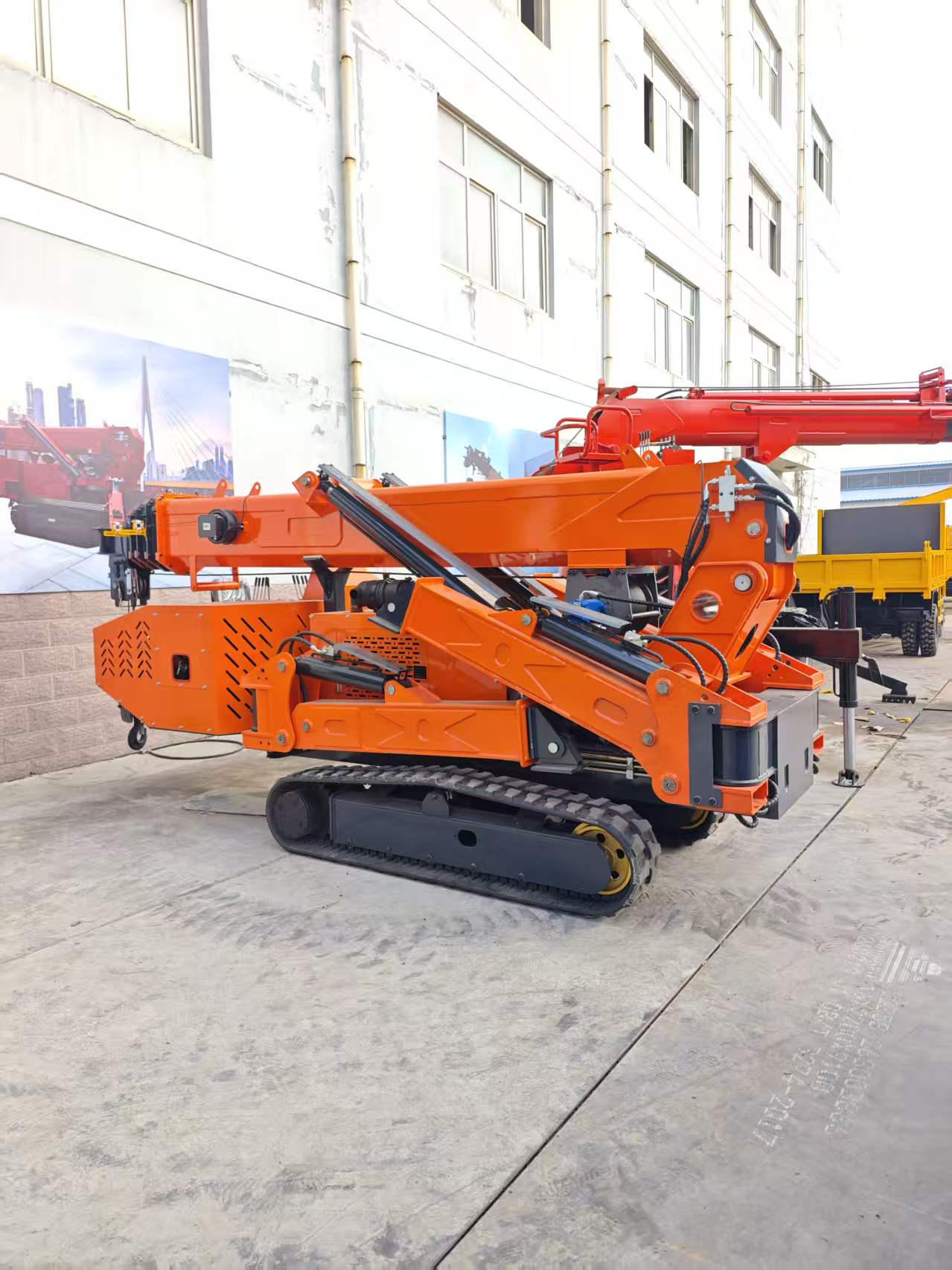

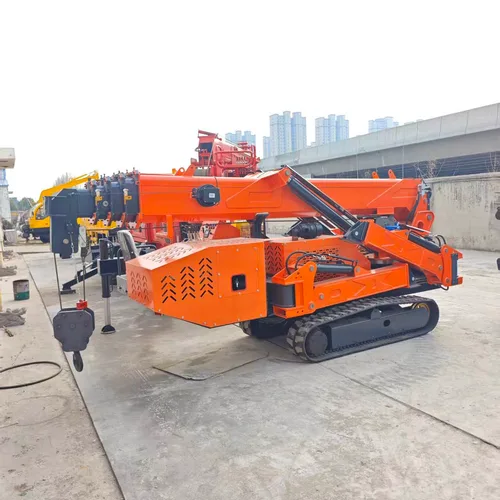

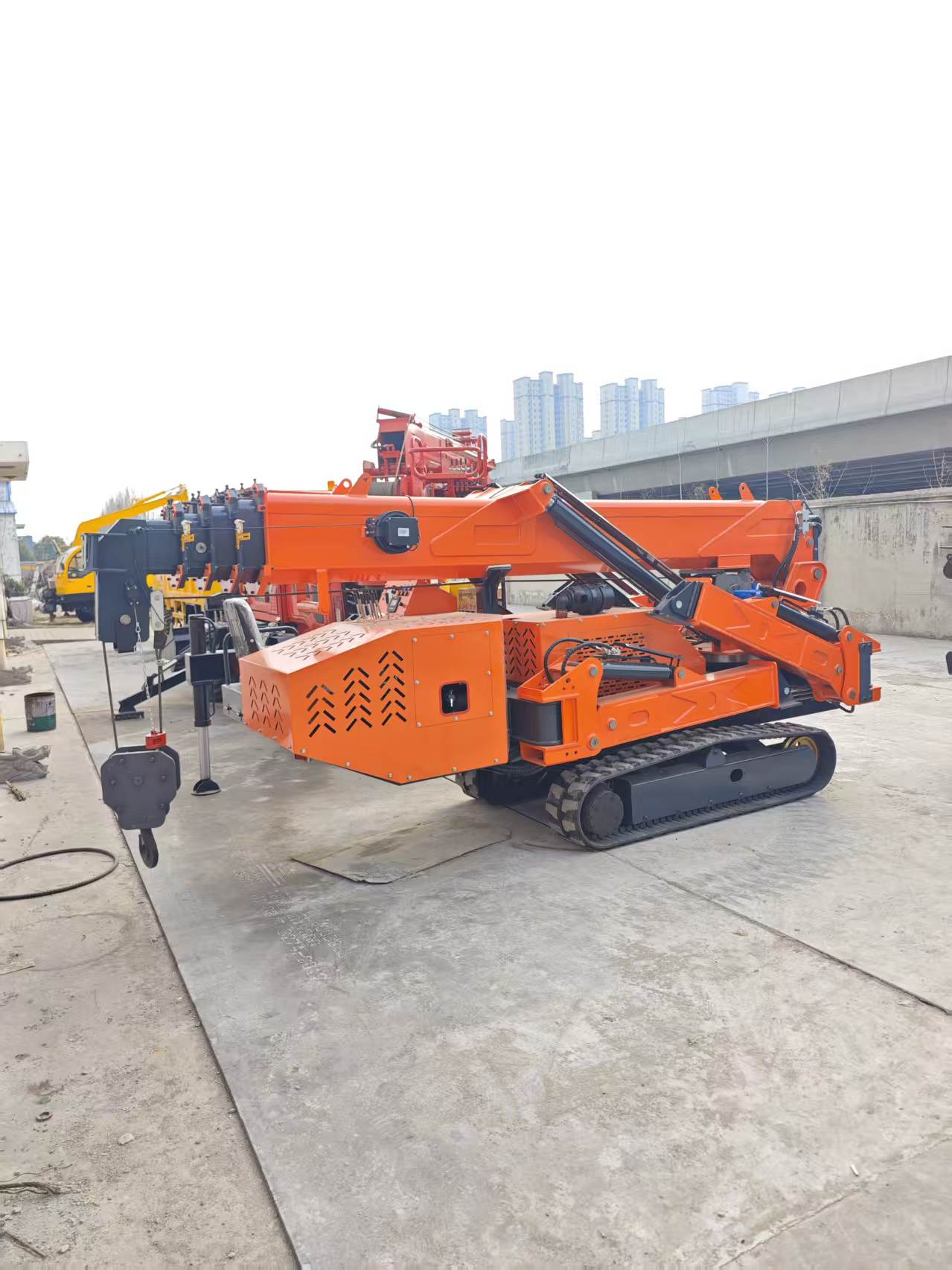

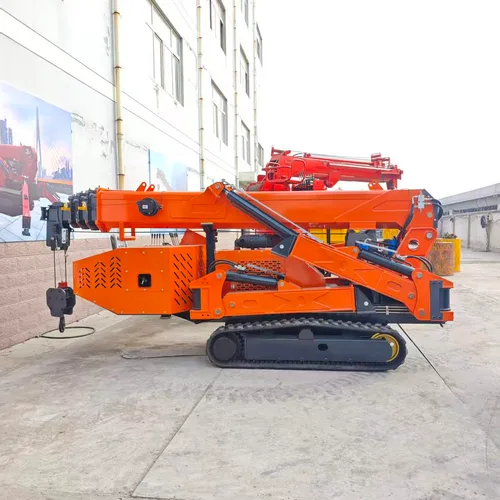

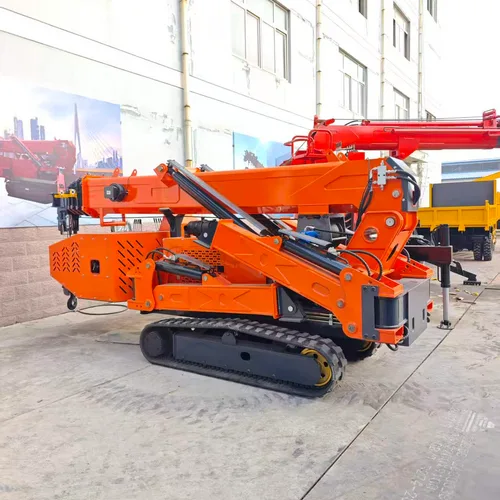

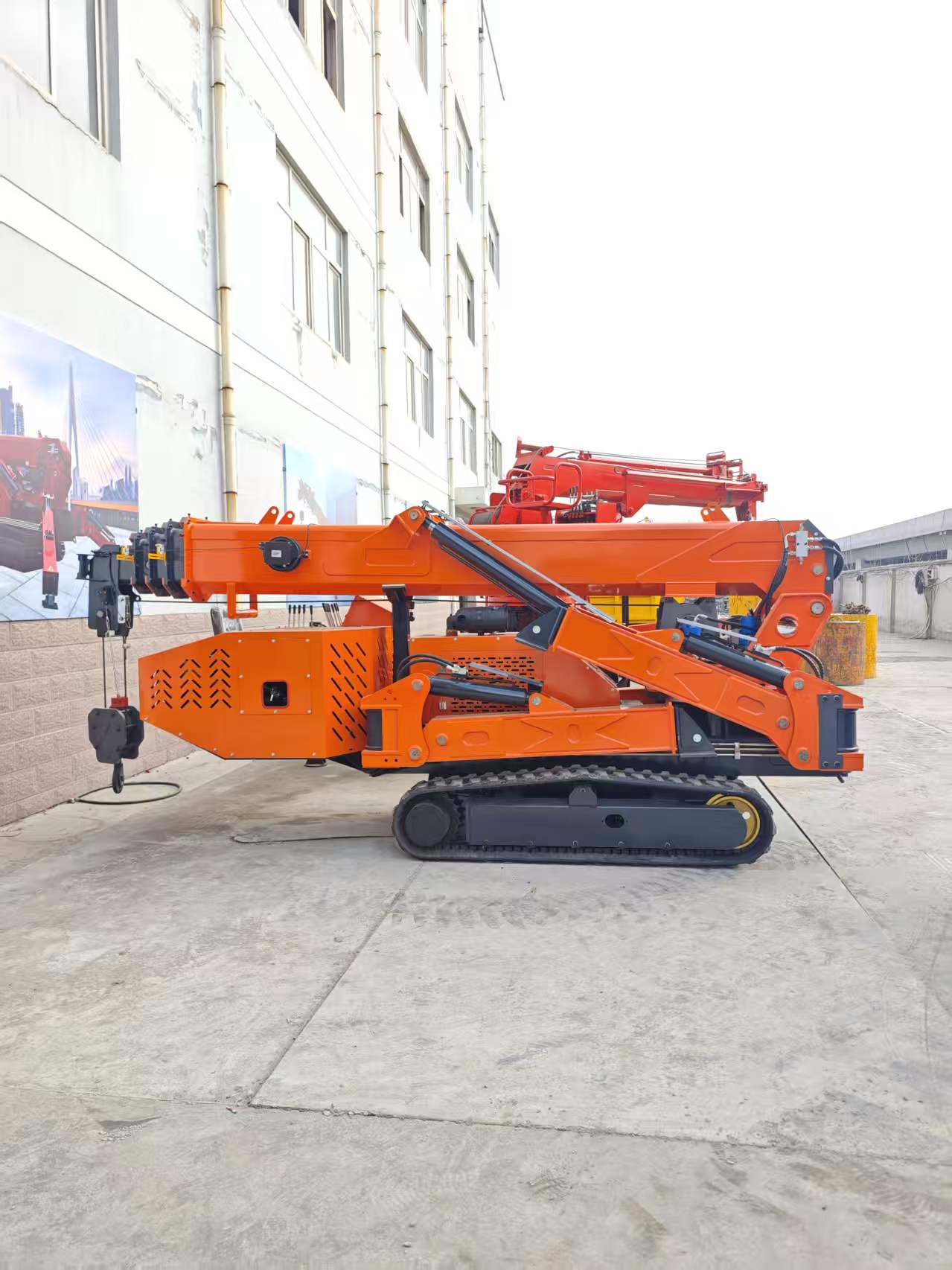

WT3.0 3 Ton Crawler Spider Crane 5-Section Telescopic Boom Small Hoist For Elevator Basement 380V Electric & Diesel Dual Power Mini Spider Lifter

Name: WT3.0 3 Ton Crawler Spider Crane 5-Section Telescopic Boom Small Hoist For Elevator Basement 380V Electric & Diesel Dual Power Mini Spider Lifter
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

WT3.0 3-ton crawler spider crane, dimension 3200×980×1750mm, weight 2.65 ton. Compact body fits elevators and basements. 5-section auto telescopic boom with max lifting height 9.2m and 360° rotation. Standard 5.5KW 380V motor, optional 12KW diesel engine. Low-pressure rubber tracks protect floors. Segmented hydraulic outriggers for single-person operation, suitable for curtain wall, factory and basement equipment lifting. Custom size and power available.

$13024.00 - 42624.00

Send Message Contact Supplier

Shandong Jiahong Heavy Industry Co., Ltd.

Main Products: Spider Crane

View Supplier

Year Established Established in 2018

Main Products Spider Crane

Employees 51-100 People

Factory Area > 50,000 m²

Annual Revenue Above US$50 Million

Main Markets Southeast Asia / Middle East & North Africa / Africa

Details

Specifications

Trade Information

1. Core Product Advantages

Narrow Lightweight Body For Barrier-Free Elevator & Indoor Transport
Folded width only 980mm, total weight 2.65 ton, whole machine transportable via standard passenger & freight elevators, solving access limitation of large cranes in basements and low workshops. Widened rubber ground pads keep ground pressure at 49.0Kpa, no scratches or indentation on epoxy, marble and tile floors.
Extended 5-Section Manganese Steel Boom Wide High-Altitude Coverage
Pentagonal full-automatic 5-section telescopic boom, extension range 2.8m–8.3m, full extension within 20s under speed-up mode. Boom luffing angle 0°–80° with 360° non-stop rotation, max lifting height 9.2m, wider coverage for high-rise curtain wall, rooftop equipment and underground pipe gallery work.
Dual Electric & Diesel Power For All Working Conditions
Standard 5.5KW 380V three-phase asynchronous motor for quiet zero-emission indoor operation; optional 12KW National II diesel engine for all-weather outdoor sites without mains power. Unified 12V system voltage with stable electric start.
Hydraulic Self-Propelled Crawler Chassis All-Terrain Stable Travel
Hydraulic motor drive walking system, travel speed 0–2.5KM/h, max climbing gradient 20°. Extended wide rubber tracks travel smoothly on gravel, mud and concrete floors, no extra trailer needed for short relocation, single-person moving.
Segmented 4 Outriggers Anti-Tipping For Heavy Lifting
Manual extension for section 1&3, hydraulic auto extension for section 2. Max span L/R 5100mm, F/R 4060mm. Super wide supporting span ensures stable lifting under 3-ton heavy load. Outriggers can be fully folded for space-saving storage.
Full-Load Factory Test & Full-Range Customization
Customizable boom length, power unit, wireless remote and aerial work platform. Every machine passes full-load test of winch, telescopic, slewing and travel system before delivery, with complete equipment & customs clearance documents, ideal for bulk purchase by rental, construction and electromechanical companies.

2. Application Scenarios

High-rise glass curtain wall installation, large basement mechanical & electrical equipment lifting, heavy equipment maintenance in low workshops, steel structure erection, rooftop photovoltaic & central air conditioner unit hoisting, indoor renovation of shopping malls & exhibition halls, narrow underground pipe gallery lifting work.

3. After-Sales Service

1-year full machine warranty, 1-year warranty for core spare parts including motor, diesel engine, hydraulic motor, cylinder and crawler chassis. Lifelong supply of original factory spare parts. Customers can test machines on site at factory, nationwide door-to-door truck logistics delivery. Export orders support commodity inspection and customs clearance documents, remote guidance for installation, commissioning and electric control fault maintenance.

Model

WT3.0

Rated Specification

2.95T×1.3m

Max Working Radius

8.3m@0.2T

Max Ground Lifting Height

9.2m

Hook Lifting Speed

10m/min (4 ropes)

Steel Wire Rope

Φ10mm×50m

Boom Type

Pentagonal Full Auto 5-Section Telescopic Boom

Telescopic Range & Time

2.8–8.3m / 25s (20s speed-up mode)

Boom Luffing Angle & Time

0°–80° / 18s (16s speed-up mode)

Slewing Angle & Speed

0–360° Continuous Rotation / 2.1rpm

Outrigger Operation Mode

Manual extension for 1&3 sections, hydraulic auto extension for 2nd section

Max Outrigger Extended Span

Left/Right 5100mm, Front/Rear 4060mm

Travel Drive Mode

Hydraulic Motor Drive

Travel Speed

0–2.5KM/h

Max Climbing Gradient

20°

Ground Contact Pad Size

Two pads: 1450mm×230mm

Electric Motor

Three-phase AC Asynchronous Motor

Working Voltage

380V 50HZ

Motor Power

5.5KW

Diesel Engine Model

YOUPU 2V80

Emission Standard

National II

System Voltage

12V

Overall Dimension

L3200mm × W980mm × H1750mm

Total Machine Weight

2.65Ton

MOQ

1 Pieces
