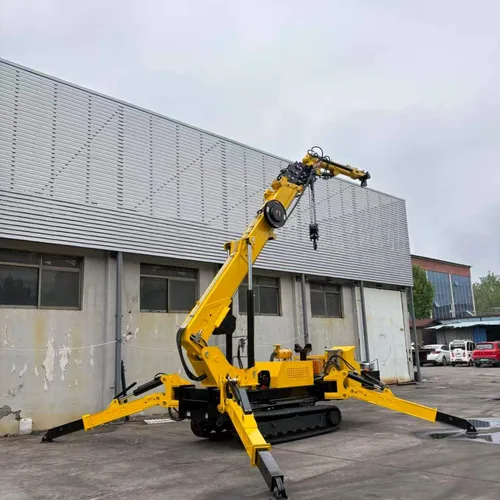

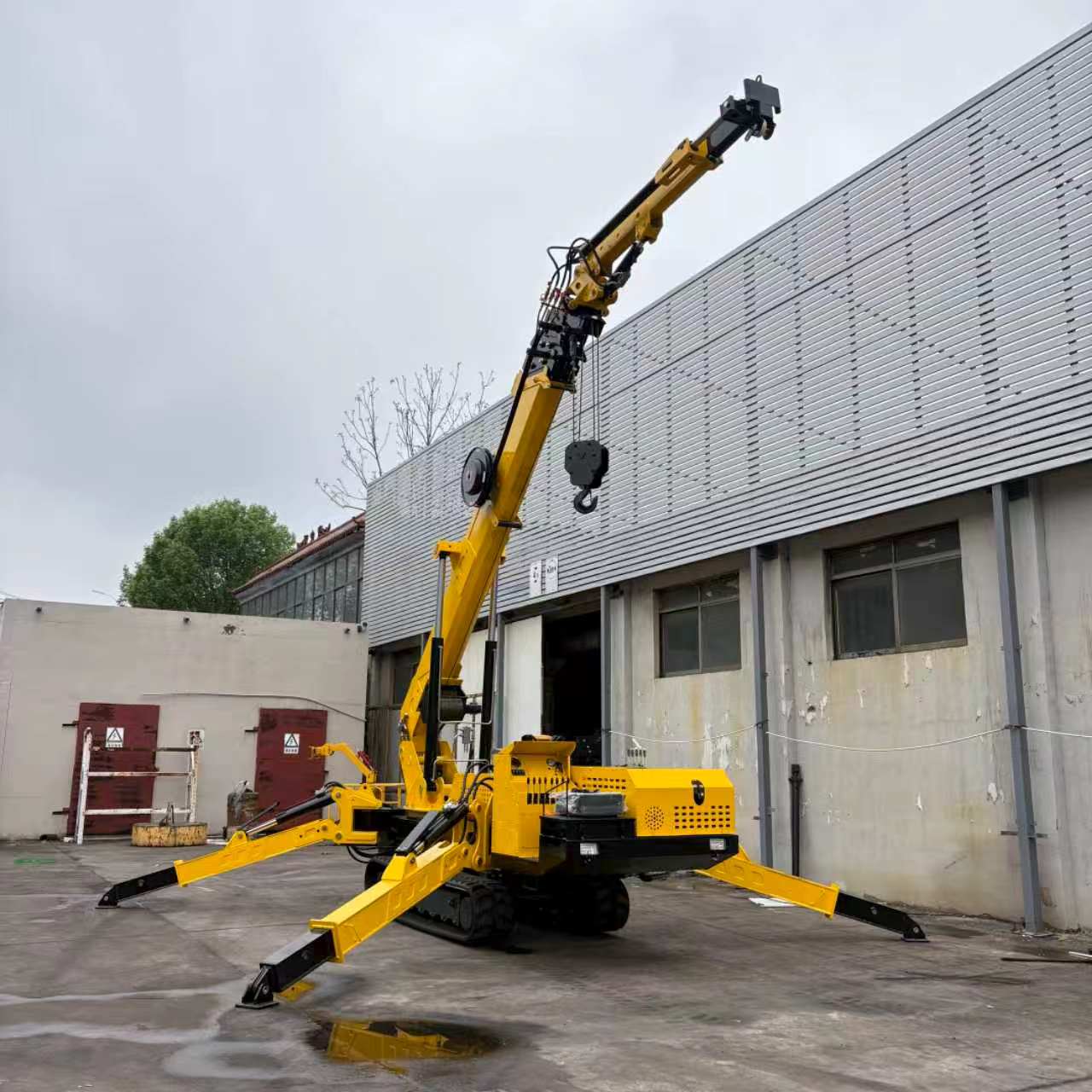

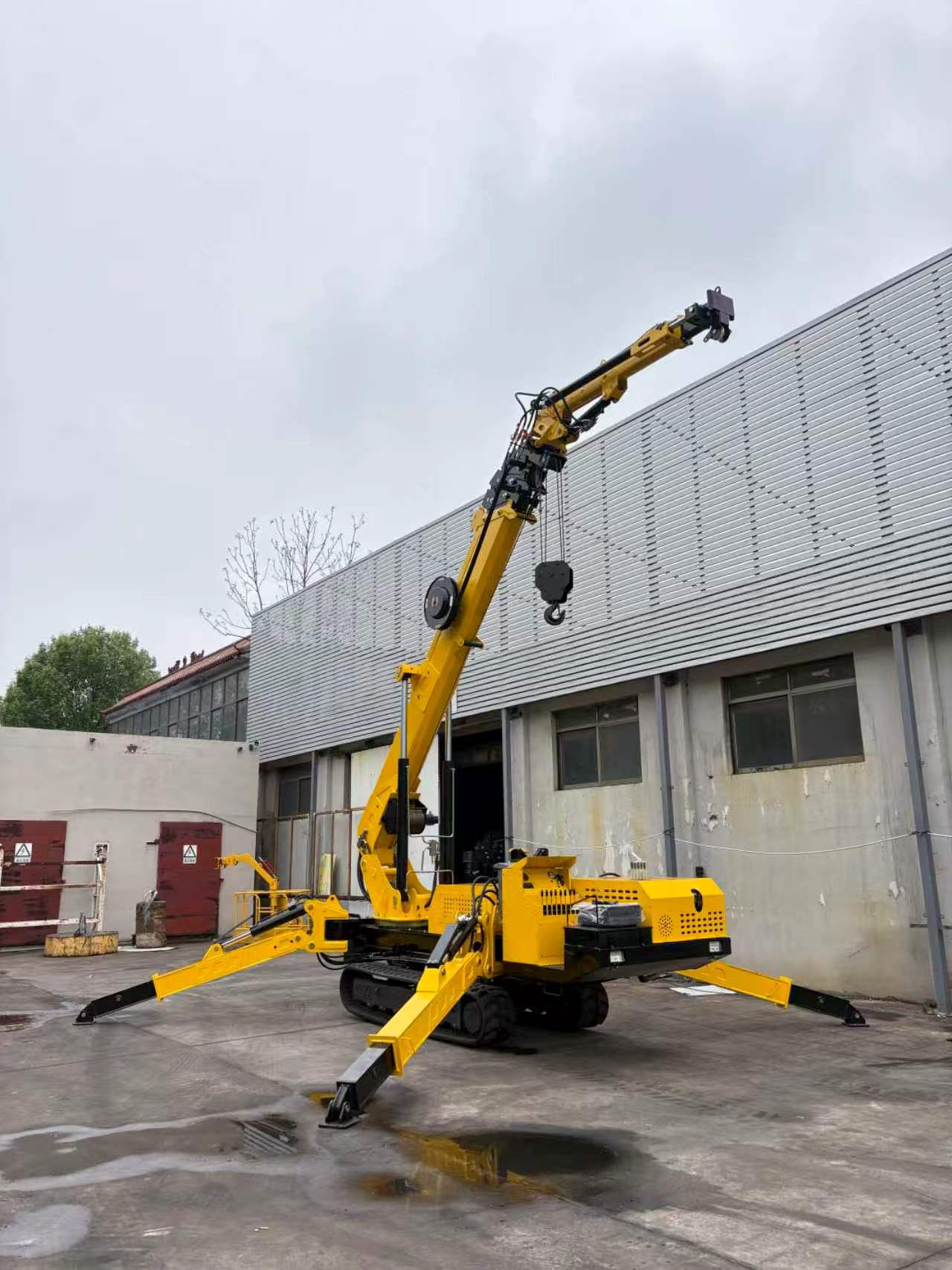

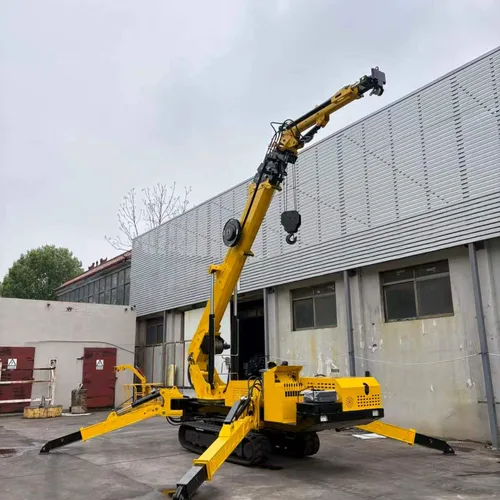

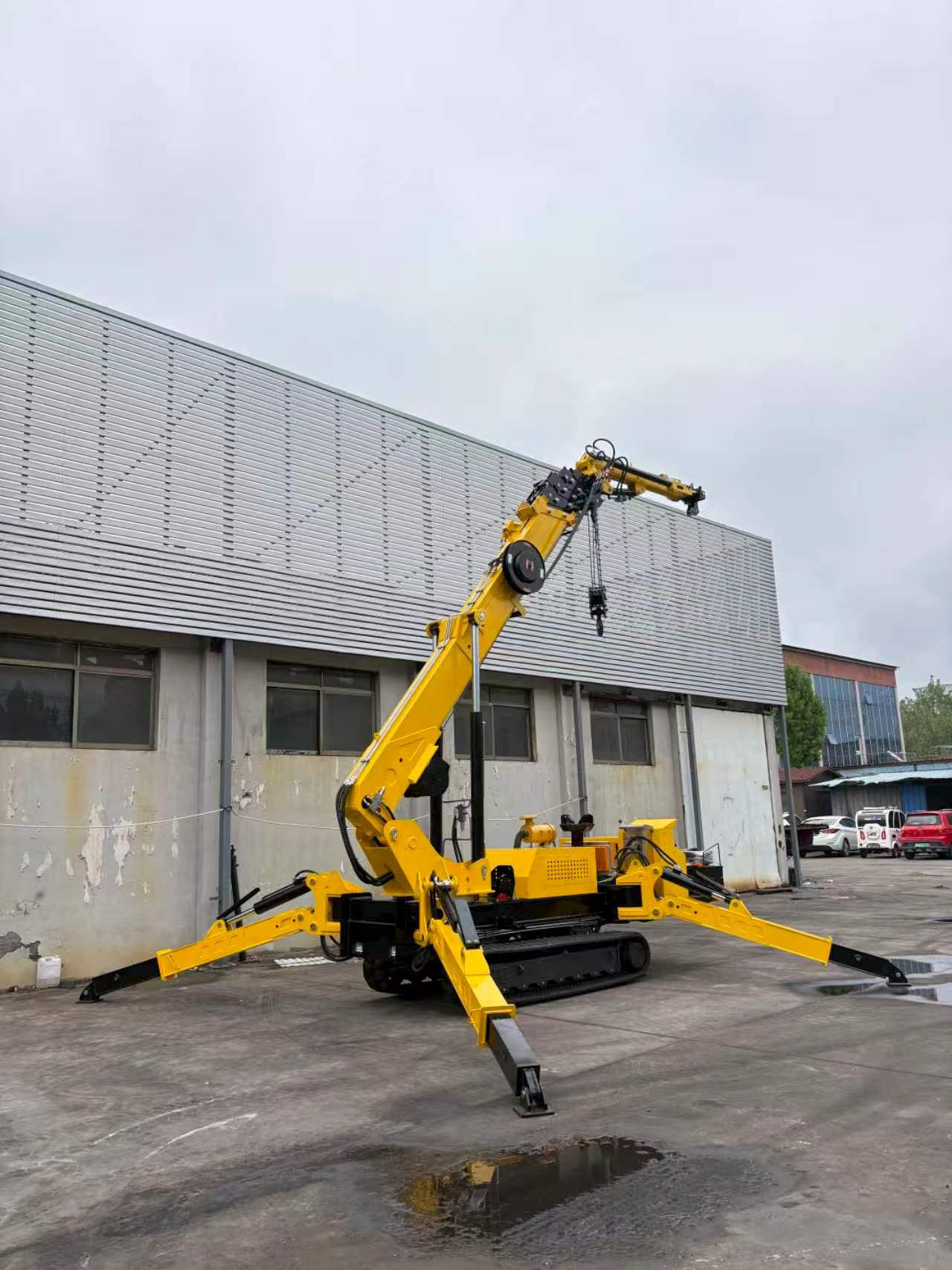

XZ05A 8 Ton Crawler Spider Crane, Large Load Mini Tracked Hoist for Restricted Construction Zones


XZ05A tracked spider crane features an 8-ton rated lifting load, equipped with thickened rubber crawler chassis and diesel-electric dual power system. It adopts 5-section extended hydraulic boom and 360° full slewing design, with ultra-wide outrigger span for stable heavy-load lifting. It can access elevators, basements and narrow workshops, unit price 168,000 RMB.

$24864.00
Shandong Xingzhi Construction Machinery Co., Ltd.

Shandong Xingzhi Construction Machinery Co., Ltd.

Main Products: Spider Crane, Folding Arm Crane
View Supplier
Year Established Established in 2023
Main Products Spider Crane, Folding Arm Crane
Employees Less than 50 People
Factory Area 1,000-5,000 m²
Annual Revenue US$10 Million - US$50 Million
Main Markets North America / Europe / Middle East & North Africa / Latin America
Details
Specifications
Trade Information
  • 8-ton Heavy-load Compact Body: Rare large-tonnage crawler spider crane in the industry, compact folded size accessible to elevators, balancing heavy lifting capacity and trafficability in narrow spaces.
  • Full Thickened Manganese Steel Structure: Boom, chassis and outriggers all adopt thickened manganese steel for anti-deformation under heavy load and longer service life for frequent hoisting.
  • All-weather Dual Power System: Freely switch between diesel and industrial electric power to cover field powerless operation and indoor eco-friendly construction.
  • 16m Super Long 5-section Boom: Max lifting height reaches 16m with 360° full rotation, expanding coverage for long-distance high-altitude heavy hoisting.
  • Ultra-wide Span Independent Outriggers: Max unfolding span up to 6.7m with single-point adjustment for maximum stability on uneven ground.
  • Anti-slip Thickened Rubber Crawlers: No damage to all kinds of indoor floors, excellent off-road climbing performance for both indoor and complex outdoor terrains.
  • Intelligent Multi-layer Safety Protection: Real-time moment monitoring, overload lock, tilt and over-winding multi-layer protection to eliminate hoisting risks fundamentally.
  • Humanized Dual Control Design: Wireless remote control plus on-machine manual operation adapts to high-altitude, narrow and long-distance working scenarios.
Model No.
XZ05A
Rated Lifting Capacity
8 Ton (8t)
Travel Mode
Thickened engineering rubber crawler
Power System
Diesel & 380V electric dual power
Boom Spec
5-section hexagonal manganese steel telescopic boom
Max Lifting Height
16m
Slewing Angle
0~360° infinite full rotation
Folded Overall Dimension
5000mm×1500mm×2100mm
Min/Max Outrigger Span
4800mm×5000mm / 6000mm×6700mm
Control Mode
Analog wireless remote + manual dual control
Standard Safety Devices
Intelligent moment limiter, overload alarm, tilt protection
Main Material
Thick high-strength manganese steel
Unit Price
168,000 RMB
MOQ
1 Pieces
  • XZ05A 8 Ton Crawler Spider Crane, Large Load Mini Tracked Hoist for Restricted Construction Zones
  • XZ05A 8 Ton Crawler Spider Crane, Large Load Mini Tracked Hoist for Restricted Construction Zones
  • XZ05A 8 Ton Crawler Spider Crane, Large Load Mini Tracked Hoist for Restricted Construction Zones
  • XZ05A 8 Ton Crawler Spider Crane, Large Load Mini Tracked Hoist for Restricted Construction Zones

Description

  • 8-ton Heavy-load Compact Body: Rare large-tonnage crawler spider crane in the industry, compact folded size accessible to elevators, balancing heavy lifting capacity and trafficability in narrow spaces.
  • Full Thickened Manganese Steel Structure: Boom, chassis and outriggers all adopt thickened manganese steel for anti-deformation under heavy load and longer service life for frequent hoisting.
  • All-weather Dual Power System: Freely switch between diesel and industrial electric power to cover field powerless operation and indoor eco-friendly construction.
  • 16m Super Long 5-section Boom: Max lifting height reaches 16m with 360° full rotation, expanding coverage for long-distance high-altitude heavy hoisting.
  • Ultra-wide Span Independent Outriggers: Max unfolding span up to 6.7m with single-point adjustment for maximum stability on uneven ground.
  • Anti-slip Thickened Rubber Crawlers: No damage to all kinds of indoor floors, excellent off-road climbing performance for both indoor and complex outdoor terrains.
  • Intelligent Multi-layer Safety Protection: Real-time moment monitoring, overload lock, tilt and over-winding multi-layer protection to eliminate hoisting risks fundamentally.
  • Humanized Dual Control Design: Wireless remote control plus on-machine manual operation adapts to high-altitude, narrow and long-distance working scenarios.
